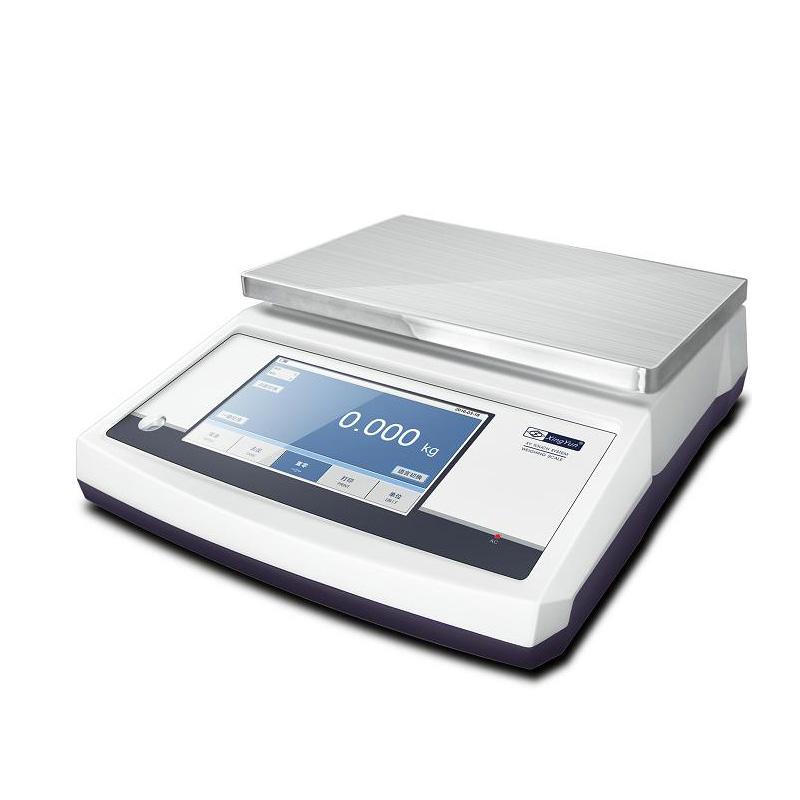

XINYUN XY20MTB Precision Electronic Table Scale 20kg/0.1g Internal Calibration
SEXINYUN precision electronic table scale XY20MTB weighs 20kg, readability accuracy 0.1g, using automatic internal calibrating, XY20MTB display for 7-inch high definition full color touch display, with USB interface.
$382.00/set
PromotionLoading...
Coupon
Model：
XY20MTB
Similar products
XingYun XY20MTB Precision electronic table scaleSPEC
XingYun XY20MTB Precision electronic table scaleDetails
XingYun XY20MTB Precision electronic table scalePacking list
- SKU
- NB029742
- Weighing range
- 20kg
- readability Accuracy
- 0.1g
- Operating conditions temperature
- 5℃-35℃
- Repeatability Error
- ±3d
- linearity error
- ±3d
- Settling time
- ≤ 4s
- Sensitivity drift
- ±3d
- tetragonal error
- ±3d
- Weighing mode
- g, oz, ct...
- Pan size
- 305*230mm
- Dimensions
- 395*118*320mm
- Packaging Dimensions
- 415×165×430mm
- display
- 7 inch high definition display
- Data Interface
- RS232 / RJ45 / USB...
- input and output
- Data output excel, parameter import (USB)
- Internal calibrated
- Fully automatic time trigger calibrated (optional)
- Test function
- Counting, Checking, Percentage, Density Density
- Function extension
- Internal calibrated/under hanging weighing/external display...
- Weighing Unit
- Input: 220V 50HZ/110V 60HZ；Output:12V
- Mechanical part
- Input: 220V 50HZ/110V 60HZ；Output:12V
- Battery
- 6V/4Ah
XY20MTB
Precision electronic table scale
Features
7-inch high-definition full-color touch display
Fully automatic internal calibration (optional)
Custom Range Accuracy
USB input and output
Checkweighing, Density, Counting, Label Printing, Percentage, Below Hanger Weighing...
XY-MT series touch electronic platform scale parameter comparison
| product specification | XY-MTA | XY-MTB | |||||
| Product number | XY10MTA | XY20MTA | XY30MTA | XY10MTB | XY15MTB | XY20MTB | XY30MTB |
| Maximum weighing | 10kg | 20kg | 30kg | 10kg | 15kg | 20kg | 30kg |
| Reading accuracy | 1g | 0.1g | |||||
| Operating temperature | 5℃-35℃ | ||||||
| Repeatability Error | ±3d | ||||||
| linearity error | ±3d | ||||||
| stable schedule | ≤ 4s | ||||||
| sensitivity drift | ±3d | ||||||
| Four Corner Error | ±3d | ||||||
| weighing mode | g, oz, ct... | ||||||
| Pan size | 305X230mm | ||||||
| button name | Touch Screen | ||||||
| Dimensions | 395X118X320mm | ||||||
| Package Size | 415×165×430mm | ||||||
| Display method | 7-inch high-definition display/(liquid crystal display/LCD) | ||||||
| output port | RS232/RJ45/USB... | ||||||
| input Output | Data output excel, parameter import (USB) | ||||||
| internal calibration | Fully automatic time-triggered calibration (optional) | ||||||
| test function | Counting Counting, Checking Checking, Percentage, Density | ||||||
| function extension | Internal calibration/hanging weighing/external display... | ||||||
| print extension | Label machine printing, label format content setting, etc. | ||||||
| weighing part | Input: 220V 50HZ/110V 60HZ; Output: 12V | ||||||
| Mechanical part | Input: 220V 50HZ/110V 60HZ ; Output: 12V | ||||||
| storage battery | 6V/4Ah | ||||||
FAQ
QCan This Also Measure Density?
A
The Density bracket (hydrostatic frame) required for Density test is an optional part, and the Density test can be realized with the weighing function of the lower hanging.
