TIME1100 ultrasonic flaw detection (UFD) instrument, detection range 2.5~ 5000mm Material Speed of sound 1000~9999m/s

TIME1100 ultrasonic flaw detection (UFD) instrument Speed of sound 1000~9999m/s, Working Frequency 0.2~ 15MHz, Basic configuration TIME1100 ultrasonic flaw detection (UFD) instrument host, straight probe 2.5P20, oblique probe 5MHz8 × 9K2
Model：
Certificate
Contact
Details SPEC
Similar products

TIME TIME1100 Ultrasonic flaw detection (UFD) instrumentSPEC

TIME TIME1100 Ultrasonic flaw detection (UFD) instrumentDetails

TIME TIME1100 Ultrasonic flaw detection (UFD) instrumentPacking list

SKU
NB000301
Detection method
Positive half wave, negative half wave, full wave and RF
Horizontal Linearity
≤ 0.2%
Detection range
2.5~ 5000mm
Speed of sound
1000~9999m/s
Frequency range
0.2~15MHz
Gain range
110dB (0.2, 0.5, 1, 2, 6, 12 steps)
Dynamic range
≥ 34dB
Vertical Linearity
≤ 3%
digital suppression
(0~80) %, does not affect linearity and gain
pulse shift
-20μs~3400μs
Scan resolution
0.1mm（2.5~ 99.99mm）， 1mm（100~5000mm）
probe delay
0~99.99μs, resolution 0.0125μs
Weight
1.5Kg (including battery)
Dimensions
243*173*85mm
Basic configuration
TIME1100 ultrasonic flaw detection (UFD) instrument host, straight probe 2.5P20, oblique probe 5MHz8 × 9K2, BNC probe connection cable, 3A/9V power adapter, coupling agent, USB cable, lithium battery
Optional Accessories
Ultrasonic flaw detection (UFD) instrument test block, PC communication software, serial communication cable (9 pins), ultrasonic flaw detection (UFD) instrument probe
TIME1100
Ultrasonic flaw detection (UFD) instrument

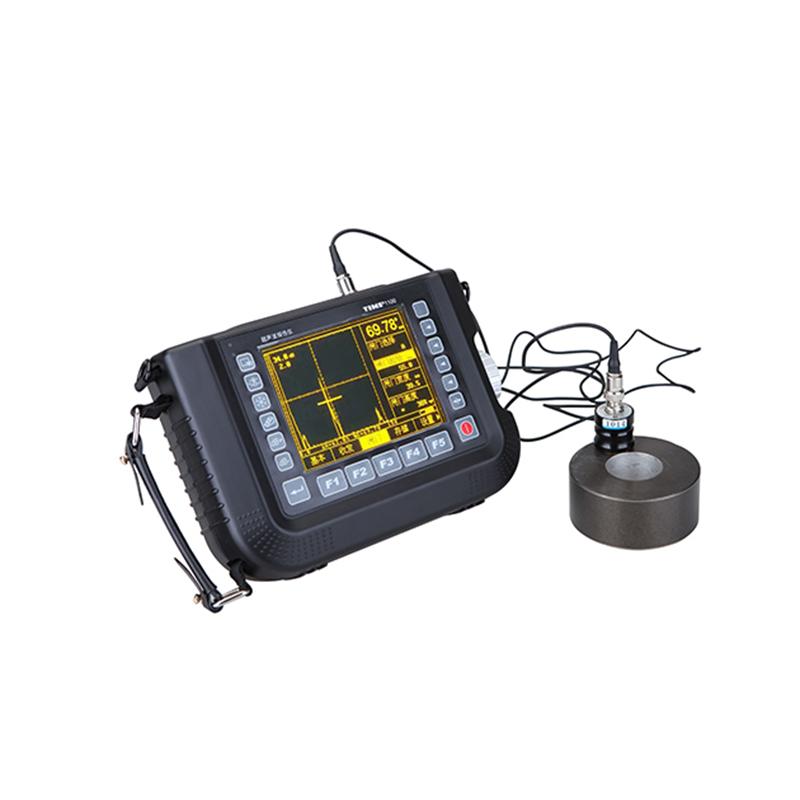

TIME1100 ultrasonic flaw detection (UFD) instrument, detection range 2.5~ 5000mm Material Speed of sound 1000~9999m/s Picture

Introduction

Beijing Times TIME1100 ultrasonic flaw Detector is a newly designed all-digital ultrasonic flaw Detector with multiple innovative points, with fast detection speed, high accuracy and stable waveform. The detection rate of small defects is high, the ultrasonic echo signal analysis adopts DSP processing technology, the target defect signal identification is fast, the flaw detection waveform display sampling smooth filtering technology, and the key performance indicators are similar to or exceed those of similar international products.

Parameters

Detection methodPositive half-wave, negative half-wave, full-wave and RF
Horizontal linearity error≤ 0.2%
Detection range2.5～ 5000mm
The speed of sound of the material1000～ 9999m/s
Operating frequency0.2~15MHz(LF 0.2~1, MF 0.5~4, HF 2~15)
Gain adjustment110dB (0.2, 0.5, 1, 2, 6, 12 steps)
dynamic range≥ 34dB
Vertical linearity error≤ 3%
Sensitivity margin≥60dB (200mmΦ2 deep flat bottom hole)
Digital inhibition(0 ~ 80)%, does not affect linearity and gain
Pulse shift-20μs～3400μs
Scan resolution0.1mm（2.5～ 99.99mm）， 1mm（100～ 5000mm）
Probe delay0~99.99μs, resolution 0.0125μs
weight1.5Kg (including battery)
Dimensions243×173×85mm
Basic configurationTIME1100 ultrasonic flaw Detector host,Straight probe 2.5P20,Angle probe 5MHz8×9K2,BNC probe connection cable,3A/9V Power Adapter,Couplant,USB cable,lithium battery
Optional Ultrasonic flaw Detector test block,PC communication software,Serial communication cable (9-pin),Ultrasonic flaw Detector probe

Features

1. Able to communicate with the PC, with powerful Windows data processing software

2. The repetitive emission frequency can reach 1KHz

3. Ultra-high sampling frequency, RF waveform details are fully displayed

4. It has the function of waveform freezing

5. A, B type display mode

6. Defect equivalent calculation

7. It has the function of echo envelope display

8. It has waterproof function

9.EL high-brightness graphic dot matrix display, no Viewing Angle limit, not affected by temperature and sunlight

10. Up to 10 independent flaw detection channels

11. Able to store 500 A-scan graphics

12. It has independent double gate setting and alarm function

13. Lithium battery, no memory, continuous working time can reach more than 8 hours

14. There are two input methods of probe angle and K value

15. You can drive the U disk directly

16. Peak memory function

17. Quick knob adjustment, easy to operate
