LEICI WZB-172 Turbidity Meter 850nm/500NTU
SE
WZB-172
LeiCi WZB-172 Turbidity MeterSPEC
LeiCi WZB-172 Turbidity MeterDetails

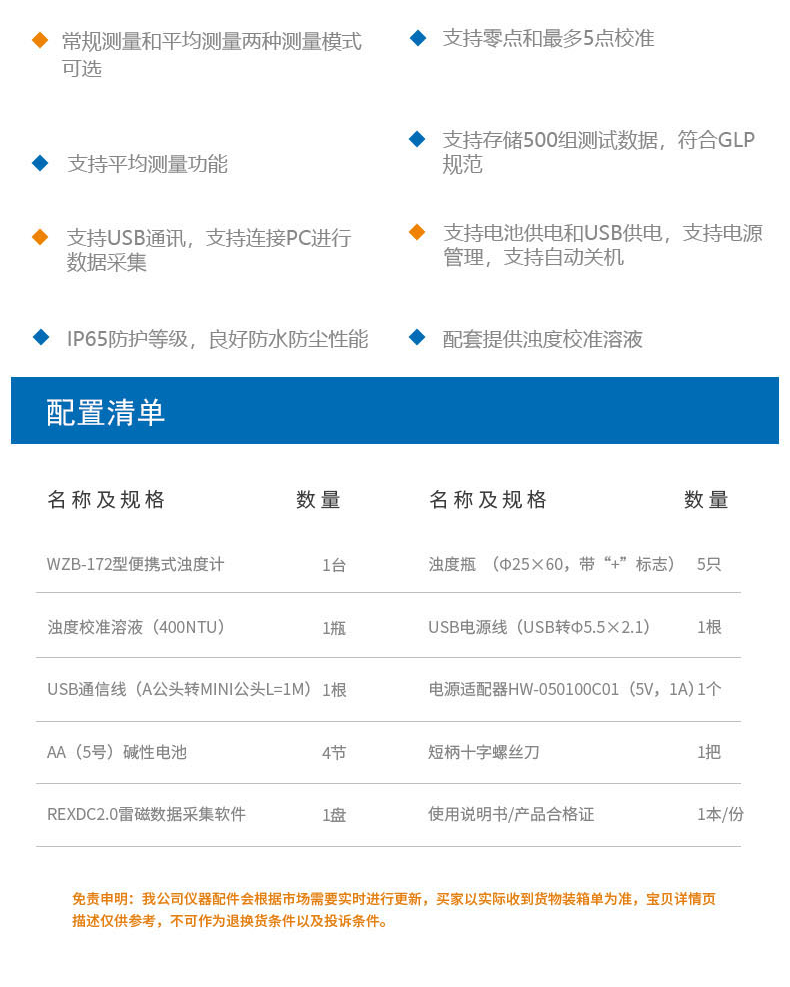

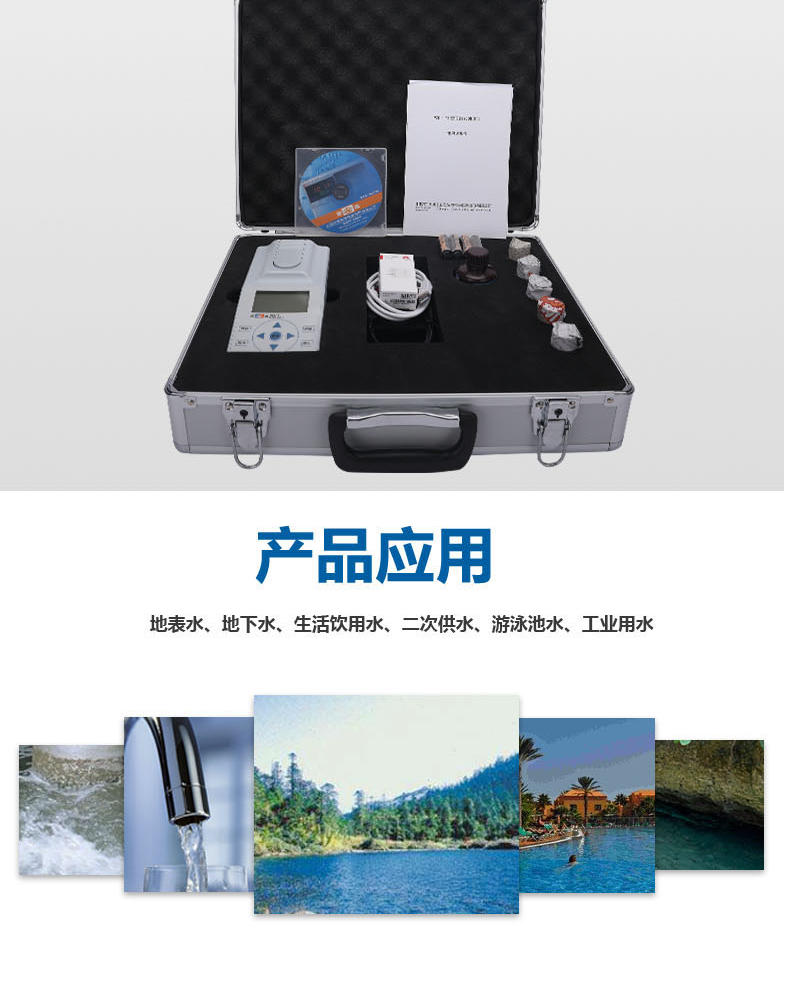

LeiCi WZB-172 Turbidity MeterPacking list

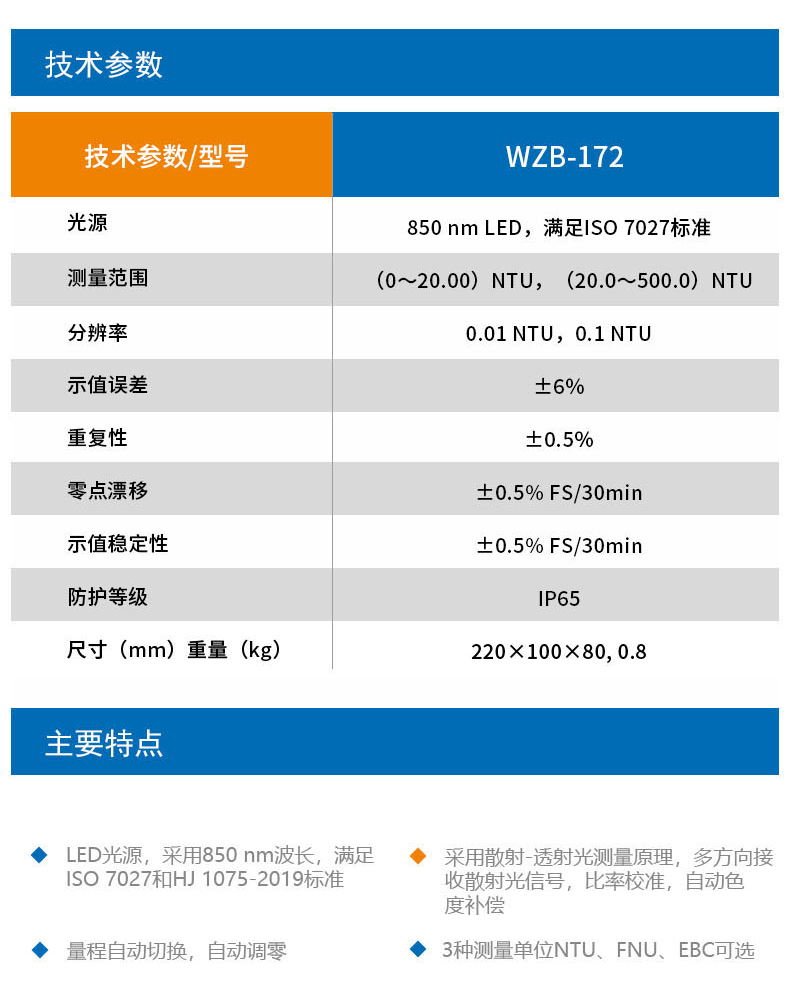

- SKU
- NB030383
- Light source
- 860nm LED
- Measurement range
- （0.00～9.99）NTU，（10.0～99.9）NTU，（100～500）NTU
- resolution
- 0.01/0.1/1 NTU
- error of indication
- ±6%
- Repeatability
- ≤0.5％
- Zero drift
- ±0.5% FS/30min
- Stability
- ±0.5%FS/30min
- calibrate
- Zero and up to 4 points (2,20,200,500 NTU)
- data storage
- 1000
- Display
- 3.5-Inch color LCD screen
- Standard long-lasting turbidity calibrated set specifications
- 20/200/500NTU
- Protection level
- IP65
- Operating Environment
- Environmental temperature: (5~ 40) ℃ Relative Humidity: not more than 85%
- Power Supply
- Rechargeable lithium battery, power adapter (input: AC100~240V output: DC5V, 2A)
- Size (mm), Weight (kg)
- 90 × 250 × 90, about 0.8

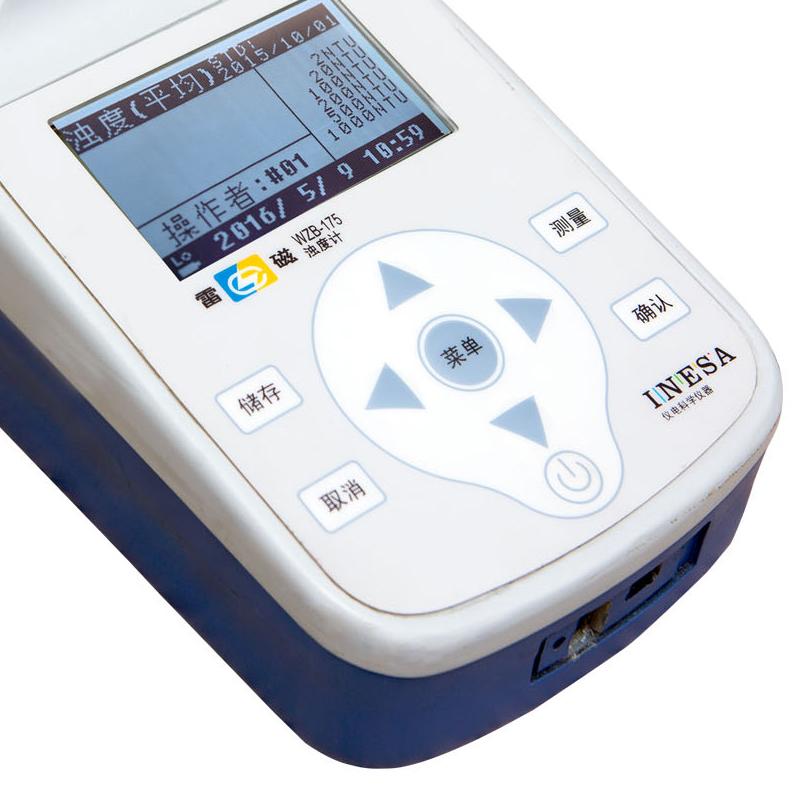

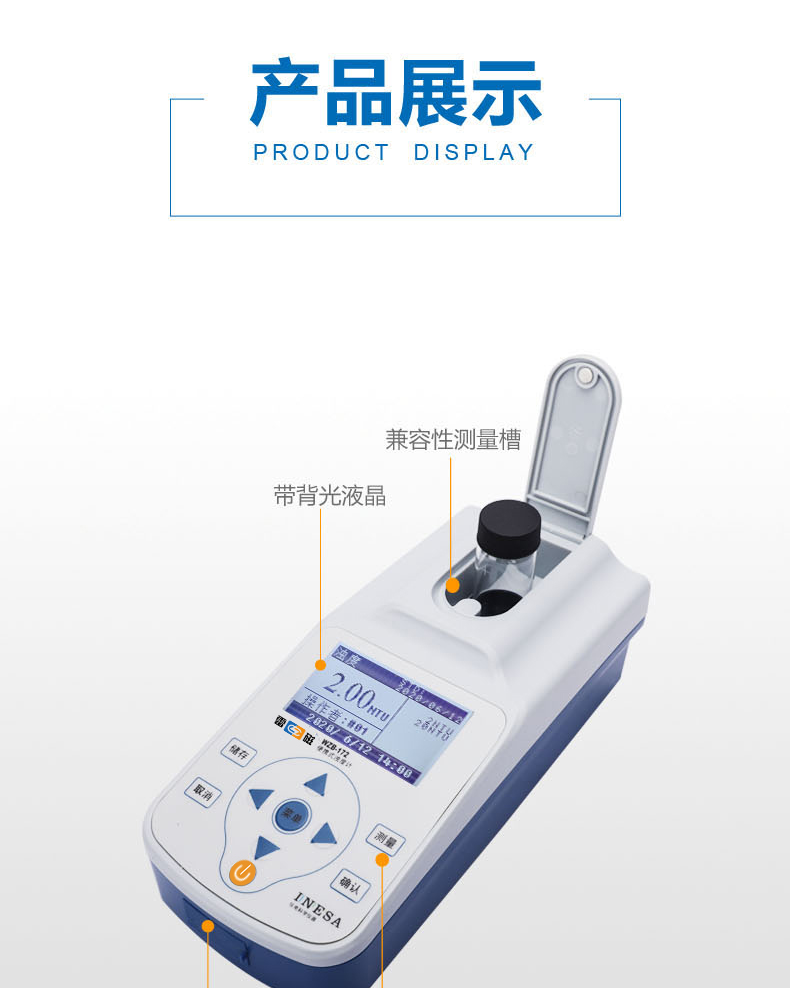

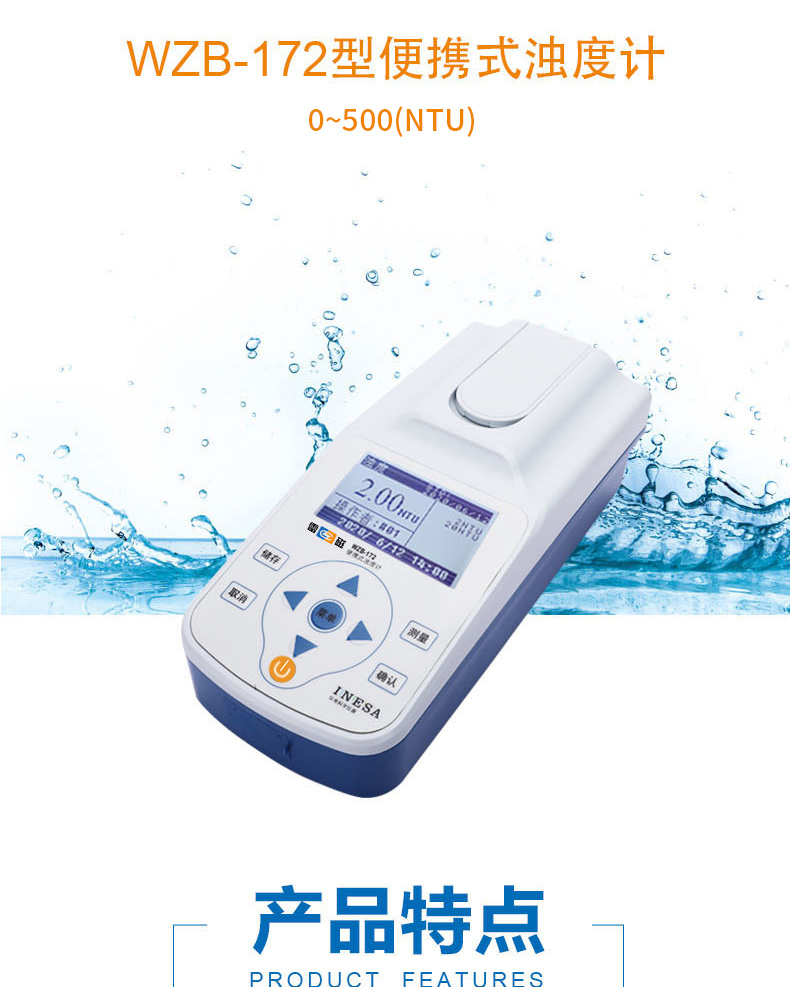

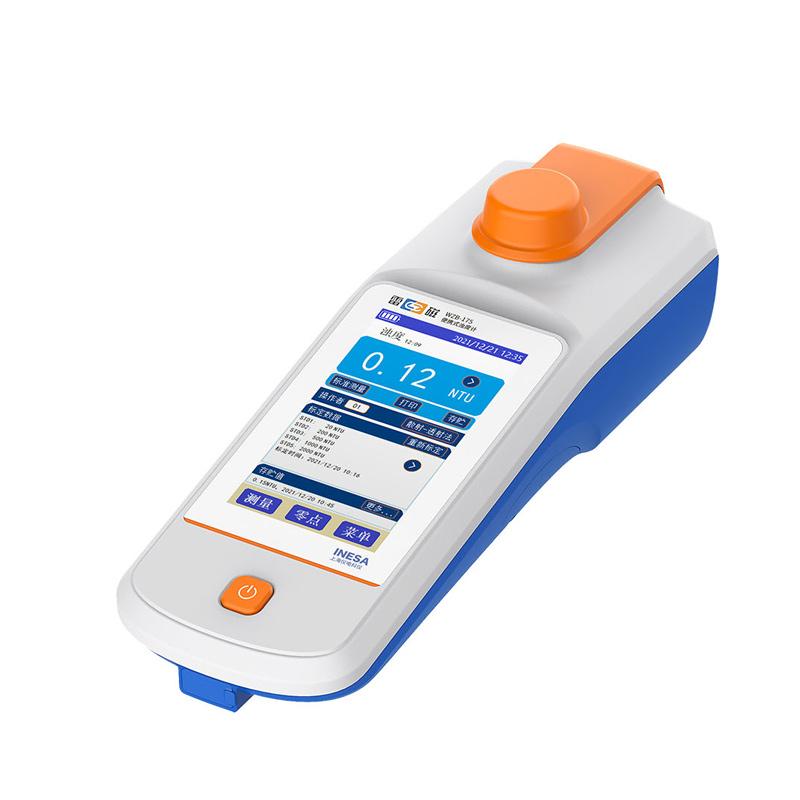

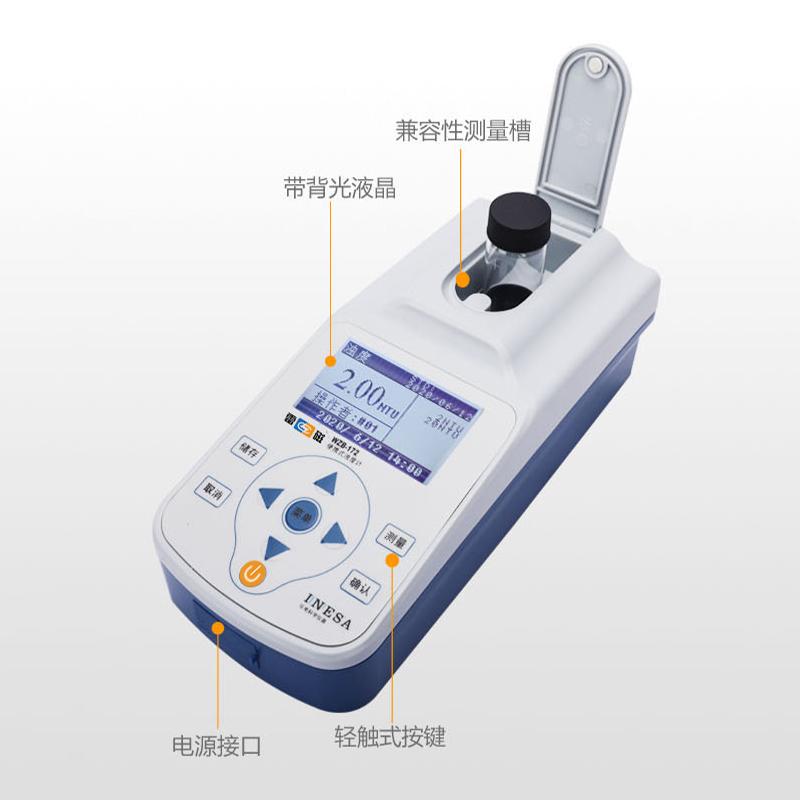

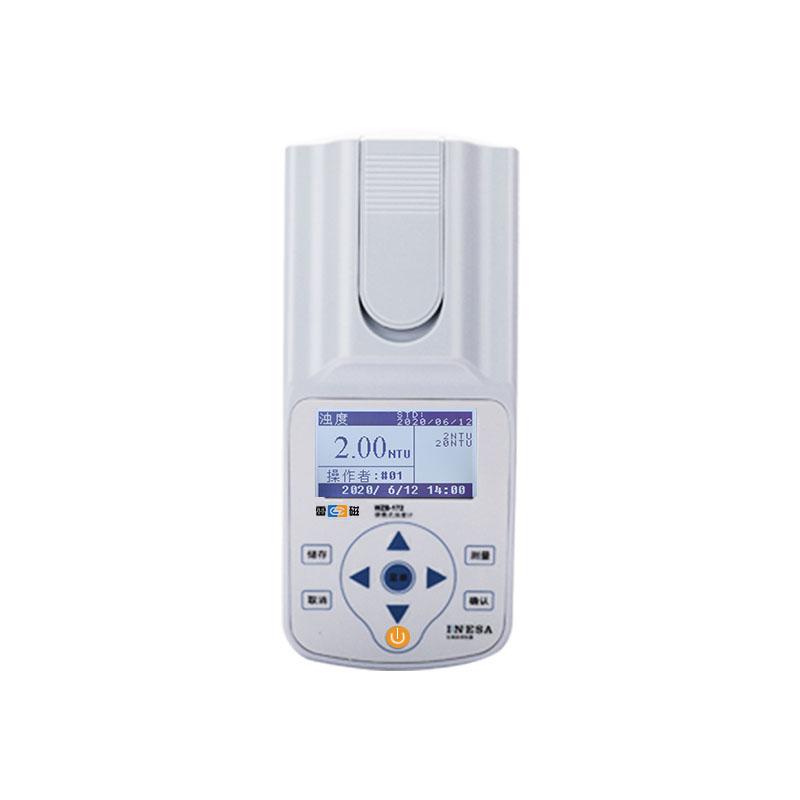

The WZB-172 portable Turbidity Meter is designed according to the ISO 7027 standard and uses an 850 nm infrared LED light source to effectively reduce the interference of color on turbidity measurement by means of ratio correction. Novel appearance, small and portable, easy to use, can be widely used in surface water, industrial water, drinking water, beverages, landscape water, swimming pool water, wastewater and other samples of turbidity detection.
Features
LED light source with 850 nm wavelength to ISO 7027;

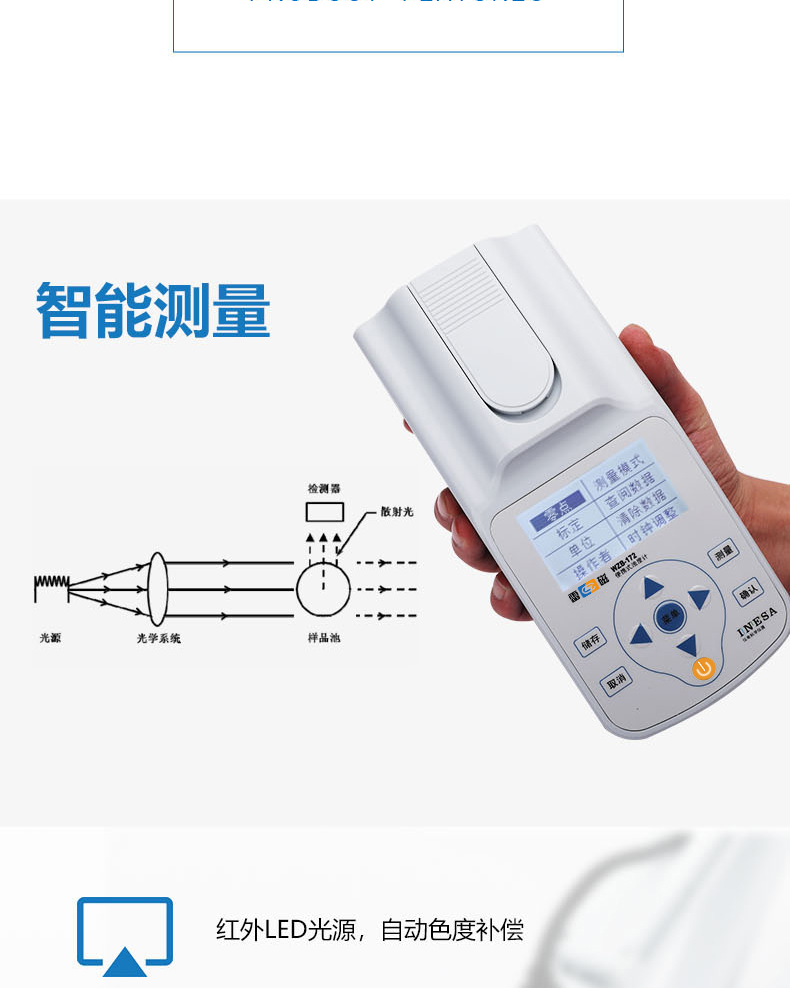

Using the principle of scattering-transmitted light measurement, multi-directional reception of scattered light signal, ratio calibration, automatic chromaticity compensation;
Automatic range switching, automatic zero adjustment;
Supports zero and up to 5 point calibration;
Support average measurement function;
Support storage of 500 sets of test data, in line with GLP specifications;

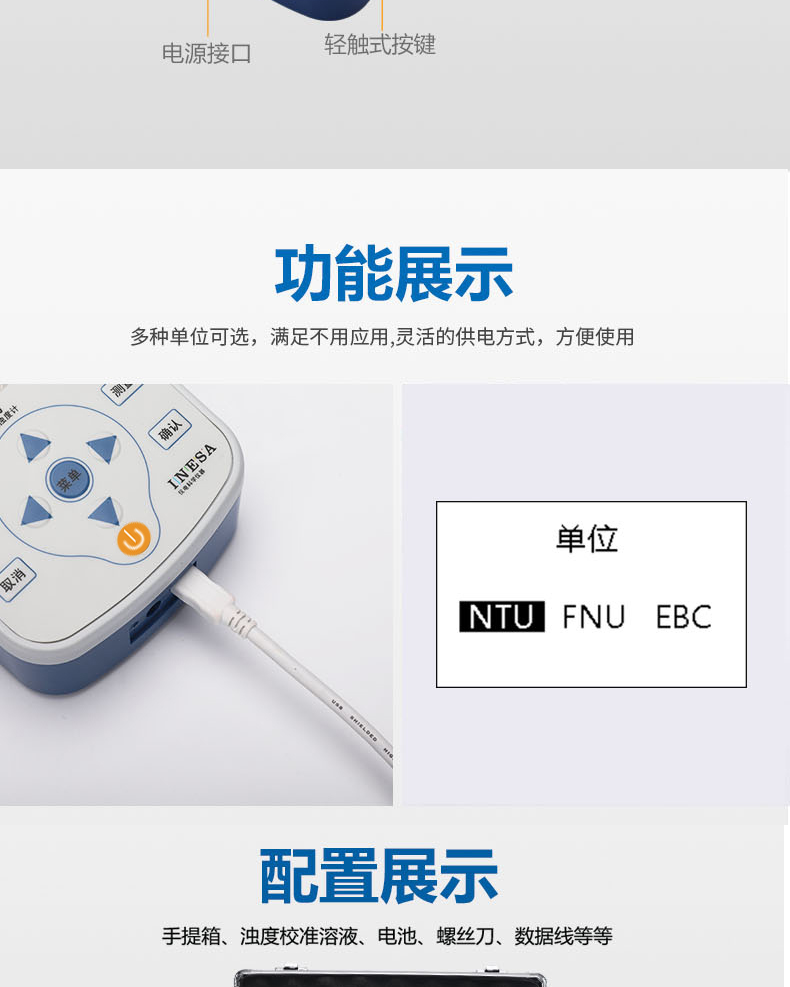

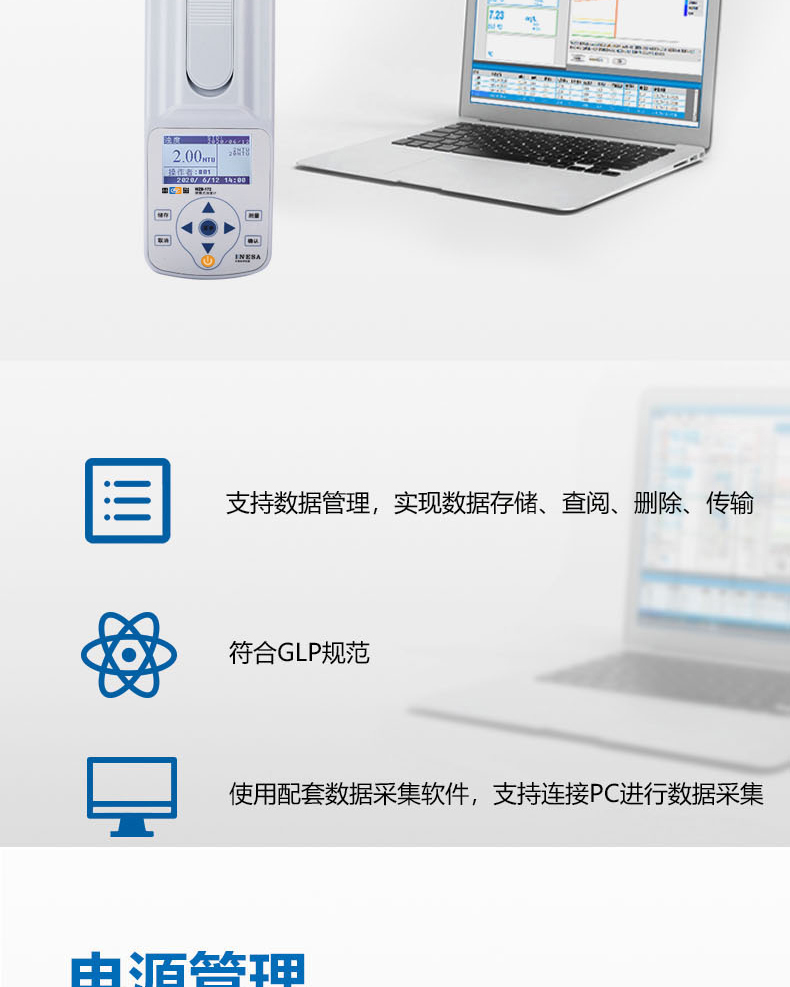

Support USB communication, support connection to PC for data collection;

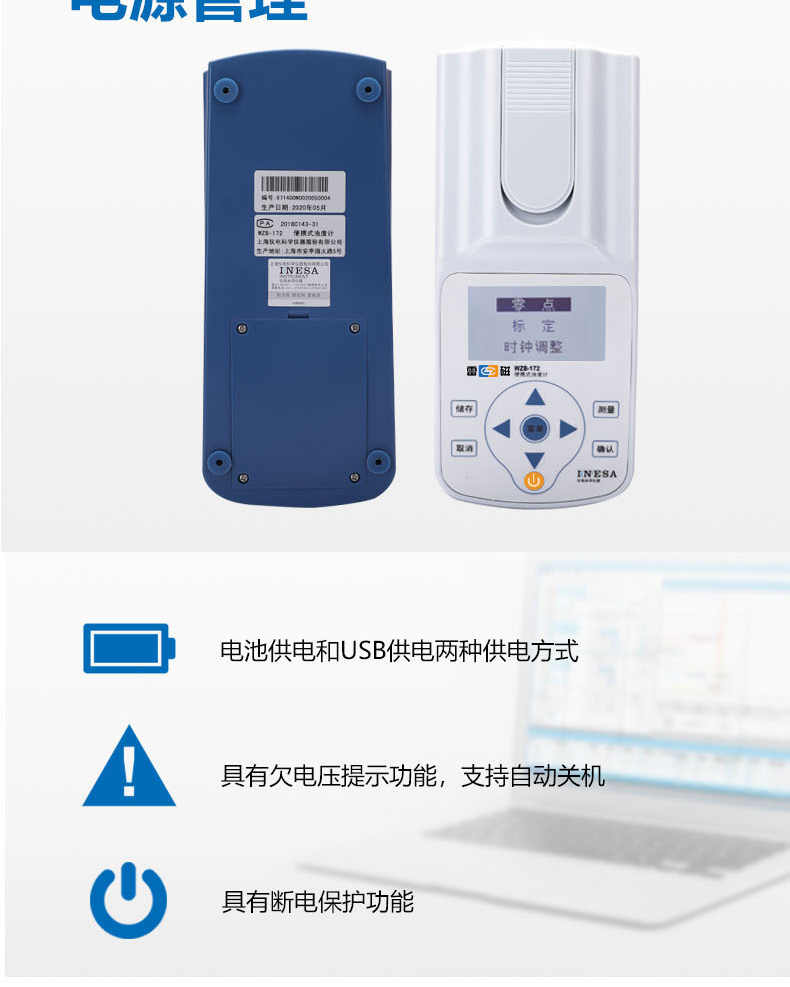

Support battery power and USB power supply, support power management, support automatic shutdown;
IP65 protection level, good waterproof and dustproof performance;
A turbidity calibration solution is provided.
