CHINA ASR-1021 Touch screen single column Tensile Strength Tester 50KG

Force measuring range of 50kg, measurement accuracy +/- 1%, force units kgf, gf, N, kN, lbf, stress units MPa, kPa, kgf/cm2, lbf/in2, with upper and lower limit safety settings, specimen breakpoint sensing.
Certificate
Contact
Details SPEC VIDEO OI

AISRY ASR-1021（50KG） Tensile Strength TesterSPEC

AISRY ASR-1021（50KG） Tensile Strength TesterDetails

AISRY ASR-1021（50KG） Tensile Strength TesterPacking list

SKU
NB030710
Capacity selection
50KG
Measurement Accuracy
±1%
force resolution
1/200000
Test speed range
0~300mm/min
effective travel
600mm
Test space
120mm
Force unit
kgf、gf、N、kN、lbf
stress unit
MPa、kPa、kgf/cm2、lbf/in2
shutdown mode
Upper and lower limit safety setting, specimen breakpoint sensing
result output
micro printer
Power system
speed regulating motor
optional configuration
Tension clamp (conventional)
Machine Weight
About 40kg
Power
1PH、AC220V、50/60Hz
ASR-1021（50KG）
Tensile Strength Tester
Force measuring range of 50kg, measurement accuracy +/- 1%, force units kgf, gf, N, kN, lbf, stress units MPa, kPa, kgf/cm2, lbf/in2, with upper and lower limit safety settings, specimen breakpoint sensing.

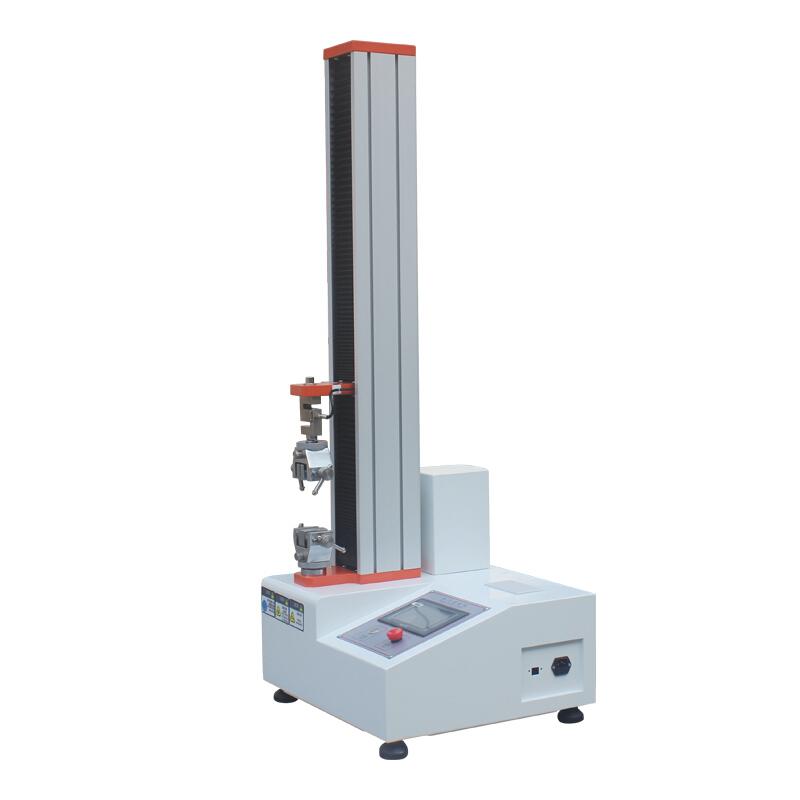

CHINA ASR-1021 Touch screen single column Tensile Strength Tester 50KG Picture

Applications

Suitable for tensile strength, peel strength, deformation rate, breaking force, peeling force of plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber, etc. , opening force and other performance tests.

Application

Tapes, automobiles, ceramics, composite materials, construction, food and medical equipment, metals, paper, packaging, rubber, textiles, wood, communications and various special-shaped materials


FAQ
QMeasuring the tensile force of aluminum
A ASR-1021 can be measured, but the fixture needs to be purchased and changed.
QI need a gel strength tester here, mainly to measure the gel strength of Agar. Which one is suitable?
A RVDV-1, if the sample volume is small, add a small amount of sample adapter.
QCan this machine be used for nitrile rubber testing?
A Sure.
Standard
