HCH-3000F Ultrasonic Thickness Gauge film thickness range 0.65-500mm

HCH-3000F Ultrasonic Thickness Gauge is a new Ultrasonic Thickness Gauge produced by Technology Electronics. Measurement range of HCH-3000F Ultrasonic Thickness Gauge is 0.65-500mm (45 #steel). HCH-3000F is suitable for measurement of metals, plastics, ceramics, Glass and other fields.
Model：
Certificate
Contact
Details SPEC CAT OI

KODIN HCH-3000F Ultrasonic Thickness GaugeSPEC

KODIN HCH-3000F Ultrasonic Thickness GaugeDetails

KODIN HCH-3000F Ultrasonic Thickness GaugePacking list

SKU
NB003087
Measurement range
0.65~500mm
Probe Frequency
2~10MHz
Probe style
Split probe
Probe diameter
Φ8mm
Measurement error
H<10mm，±0.05mm；H≥10mm，±(±0.01+H/200)
Display resolution
0.01Mm (measurement < 100mm); 0.1mm (measurement > 100mm)
unit system
mm
Calibration method
Speed of sound calibrated (reverse measurement Speed of sound) or single point calibrated
Measurement mode
Measurement mode and monitoring Measurement mode
Storage Capacity
600 Measured values
Speed of sound
1000~9990m/s
Display
LCD display with backlight
Operating language
Chinese
Application Software
none
Environmental temperature
-10~60℃
Working Relative Humidity
<90%RH
Power Supply
2 * 5 battery
Operating Time
200h
Host size
146*81*30mm
Weight
300g
Application
Petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace, etc
Data storage method
Manually stored measurements
shutdown mode
Standby for five minutes will automatically shut down
keyboard
6-Key dustproof, oil-proof keyboard
Coupled status display
When the tested piece is well coupled with the probe, the icon in the upper left corner shows
Optional Accessories
High temperature probe (below 550 degrees), cast iron probe, small diameter probe, printer and communication printing connection, microcomputer communication software
HCH-3000F
Ultrasonic Thickness Gauge

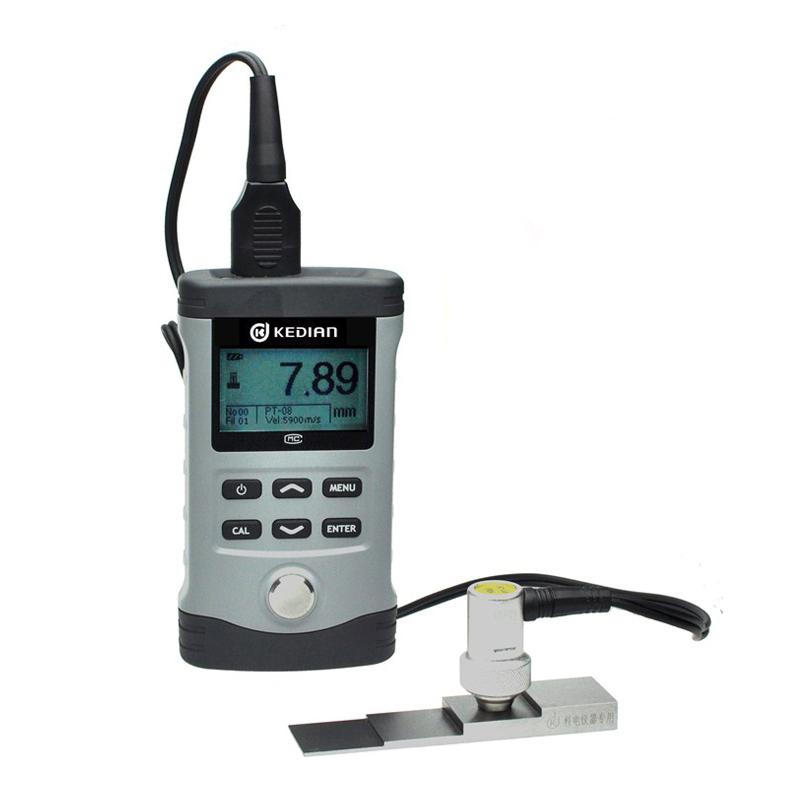

HCH-3000F Ultrasonic Thickness Gauge film thickness range 0.65-500mm Picture

Overview of HCH-3000F Ultrasonic Thickness Gauge

HCH-3000F ultrasonic Thickness Gauge is a collection of contemporary science and technology electronic technology and measurement technology in one, professional non-destructive testing instrument, ultrasonic Thickness Gauge is suitable for measuring the thickness of metal, plastic, ceramic, glass and any other ultrasonic conductor, widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields;

The new HCH-3 series ultrasonic Thickness Gauges have many more functions than the HCH-2 series Thickness Gauges, such as automatic gain adjustment, limit alarm, data transmission, etc.

Functional characteristics of HCH-3000F ultrasonic Thickness Gauge

● Automatic identification of standard probes, or manual probes.

● The resolution is 0.01 mm

● It has the function of sound velocity calibration (reverse sound velocity measurement) or single point calibration

● The upper/lower limit of thickness measurement can be set with alarm function

● Up to 600 readings can be stored in groups.

● The data output can be printed through the serial output port

Product display diagram

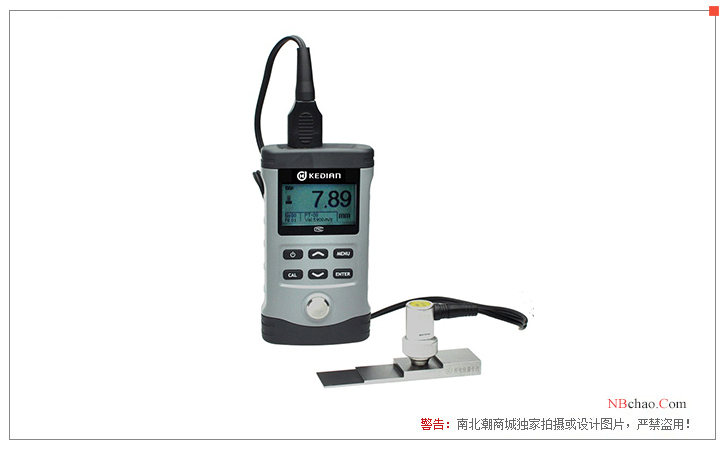

Detail of the HCH-3000F Ultrasonic Thickness Gauge


FAQ
QHow much data can this Ultrasonic Thickness Gauge store?
A Hello, this thickness gauge can store 600 measurement points.
QWhat is the minimum thickness of this HCH-3000F Ultrasonic Thickness Gauge?
A HCH-3000F Ultrasonic Thickness Gauge for measurement of 0.65mm.
QDoes this KODIN Ultrasonic Thickness Gauge correspond to ASTME797?
A Yes, please refer to the NBchao standards page for specific standards.
