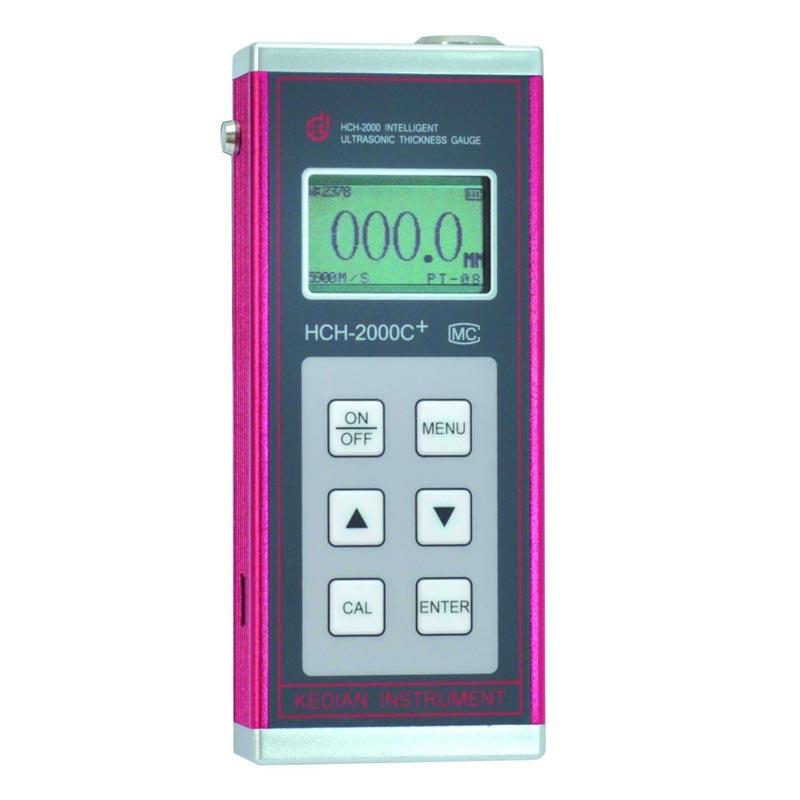

KTEC HCH-2000C + Ultrasonic Thickness Gauge Metal Shell 0.7~ 350mm Thickness Measurement Range
HCH-2000C + Ultrasonic Thickness Gauge is a split metal shell Ultrasonic Thickness Gauge, program-controlled operation, HCH-2000C + Ultrasonic Thickness Gauge Measurement accuracy up to 0.1mm.
Model：
HCH-2000C+
Similar products
-
Ultrasonic Thickness Gauge DC-4000, automatic and manual measurement$ 2172.00SE -
Metal Ultrasonic Film thickness meter DC-3020C Deguang Electronic Glass, steel pipe and other Film thickness measurement$ 1551.00SE -
Steel plate Ultrasonic Thickness Gauge DC-3000C, penetration coating measurement material Film thickness$ 1302.00SE -
Ultrasonic wall Thickness Gauge DC-2030C Deguang electronic measurement of cast iron and other Film thickness$ 929.00SE -
Ultrasonic steel plate Thickness Gauge DC-2010C Deguang electronic measurement of steel plate material itself Film thickness$ 804.00SE
KODIN HCH-2000C+ Ultrasonic Thickness GaugeSPEC
KODIN HCH-2000C+ Ultrasonic Thickness GaugeDetails
KODIN HCH-2000C+ Ultrasonic Thickness GaugePacking list
- SKU
- NB003088
- Measurement range
- 0.7~350mm
- Probe Frequency
- 5MHz
- Probe style
- Integrated probe
- Measurement error
- ±(1%H±0.1)mm
- Display resolution
- 0.1mm
- unit system
- mm
- Data storage method
- Manually stored measurements
- Storage Capacity
- 600 Measured values
- Speed of sound
- 1000~9990m/s
- Display
- LCD screen
- Operating language
- Chinese
- Environmental temperature
- -10~60℃
- Working Relative Humidity
- <90%RH
- Power Supply
- 1.2-1 alkaline battery or rechargeable battery
- Host size
- 122*50*24mm
- Application
- Thickness of Boiler, Pressure Vessel, Pipe, Metal Workpiece, Glass, Plastic, Organic Glass, etc
- Coupled status display
- When the tested part is well coupled with the probe
- shutdown mode
- Standby for five minutes will automatically shut down
HCH-2000C+
Ultrasonic Thickness Gauge
Overview of the HCH-2000C+ Ultrasonic Thickness Gauge
The internal circuit of HCH-2000C+ ultrasonic Thickness Gauge adopts new digital electronic technology and microcomputer technology, and the external ultrasonic Thickness Gauge is made of metal casing, which has the advantages of small size, low power consumption, strong function, anti-falling, anti-vibration, and more intuitive operation of touch buttons, and is the preferred instrument for users in practical applications.
Applications
HCH-2000C+ ultrasonic Thickness GaugeIt can easily and non-destructively inspect the thickness of boilers, pressure vessels, pipes, metal workpieces, glass, plastics, plexiglass, etc.

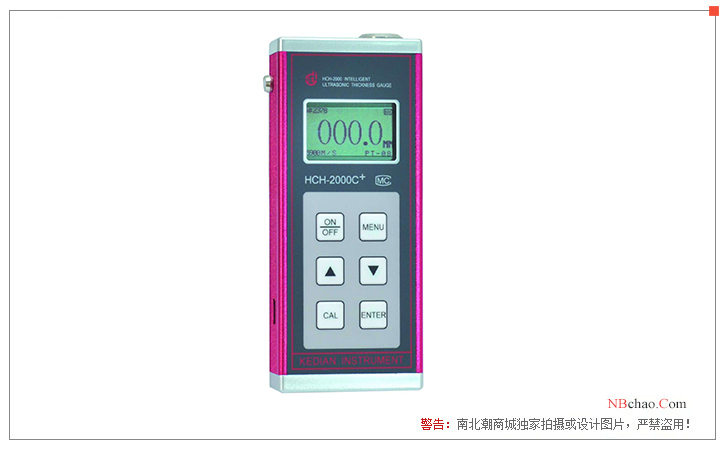

Product display diagram
FAQ
QHow thin can this HCH-2000C + Ultrasonic Thickness Gauge be measured?
A
HCH-2000C + Ultrasonic Thickness Gauge can measure the minimum limit thickness of 0.7mm
