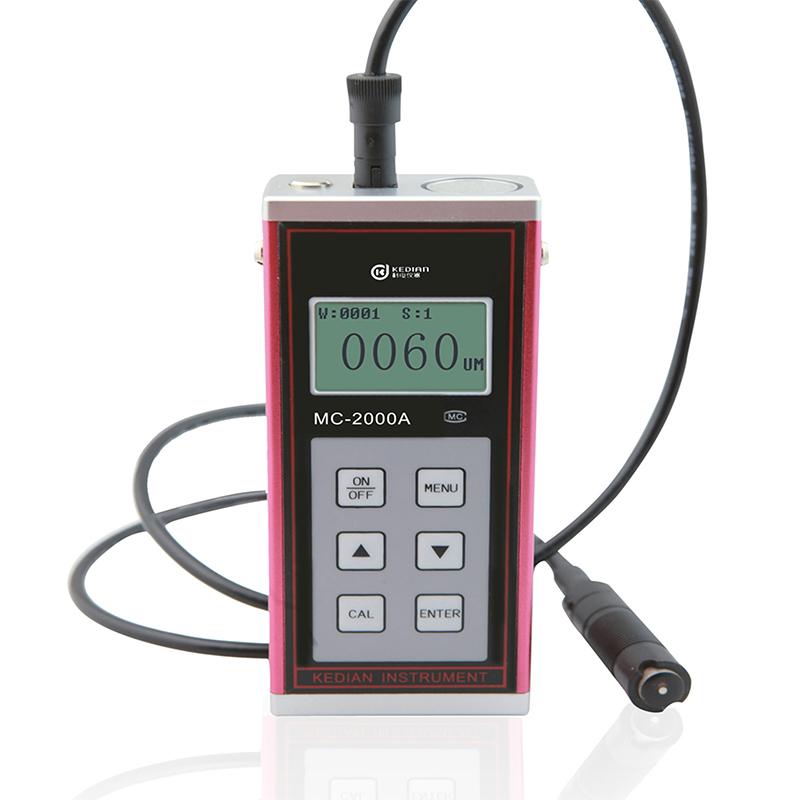

Kedian MC-2000A magnetic paints Thickness Gauge for platings, paint films, spraying, etc

MC-2000A

Thickness Gauge

MC-2000A Magnetic Paint Thickness Gauge Introduced

MC-2000A Magnetic Paint Thickness Gauge (Coating Thickness Gauge) Measurement Range: 0~1200um, is the crystallization of high technology, it adopts single-chip microcomputer technology, high precision, digital display, stable value, low power consumption, simple and convenient operation, no correction knob, single probe full range measurement, small size, light weight, and has storage, readout, statistics, low Voltage indication, zero point calibration, two-point calibration and system calibration, its performance has reached the professional level of contemporary international similar instruments.

Scope of application

MC-2000AThe magnetic paint Thickness Gauge uses magnetic thickness gauging, which can easily and non-destructively measure the thickness of non-magnetic coatings on ferromagnetic materials, such as zinc, copper, chromium and other coatings on the surface of steel or the thickness of paint, enamel, fiberglass, rubber, spraying, asphalt and other coatings. The instrument is widely used in machinery, automobile, shipbuilding, petroleum, chemical, electroplating, plastic spraying, enamel, plastic and other industries.

Operating Principle

The MC-2000A Coating Thickness Gauge uses electromagnetic induction to measure the thickness of the coating layer. The probe located on the surface of the component creates a closed magnetic loop that changes to varying degrees as the distance between the probe and the ferromagnetic material changes, causing changes in magnetoresistance and the inductance of the probe coil. This principle allows for an accurate measurement of the distance between the probe and the ferromagnetic material, i.e., the coating thickness.

Features

   (1) Measurement: full-scale thickness measurement with a single probe.

   (2) Storage and deletion: 600 measurement data can be stored, and a single suspicious data in the measurement can be deleted, and all data in the storage area can also be deleted.

   (3) Read: Read out the stored measurement data.

   (4) Statistics: There are three statistics, the maximum value of the average value and the minimum value.

   (5) Calibration: Zero point calibration, two-point calibration and system calibration can be carried out.

   (6) Electricity: with under-Voltage display function.

   (7) Buzzer prompt: There is a buzzer prompt during operation.

   (8) Printing: can print the measured value, optional micro printer.

   (9) Shutdown: There are two methods: automatic shutdown and manual shutdown.

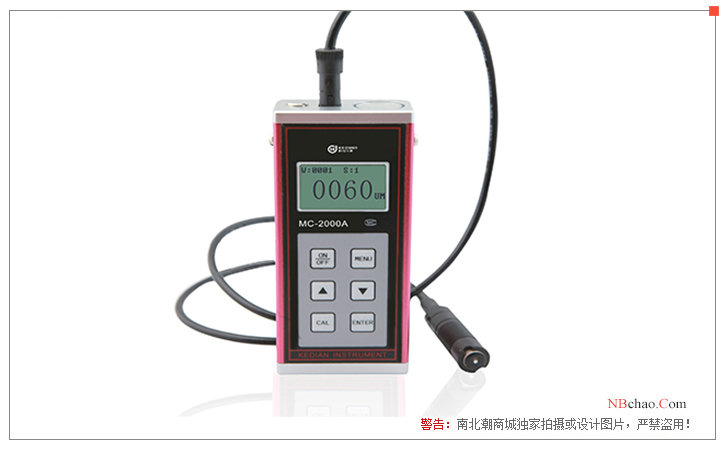

Pictures

MC-2000A Coating Thickness Gauge Configuration Sheet

    1. MC-2000A coating Thickness Gauge

    2. Two No. 7 batteries

    3. A probe

    4. One box of standard samples

    5. A small aluminum box

    6. A set of instructions and certificates

 Options

    1. 1 set of printer and communication printing line

    2. 1 disk of microcomputer communication software

    3. Internal anti-corrosion probe

Packing list：host x1, probe x1, standard sample x1, manual x1, warranty card x1, certificate x1, No. 7 battery x2, suitcase x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
