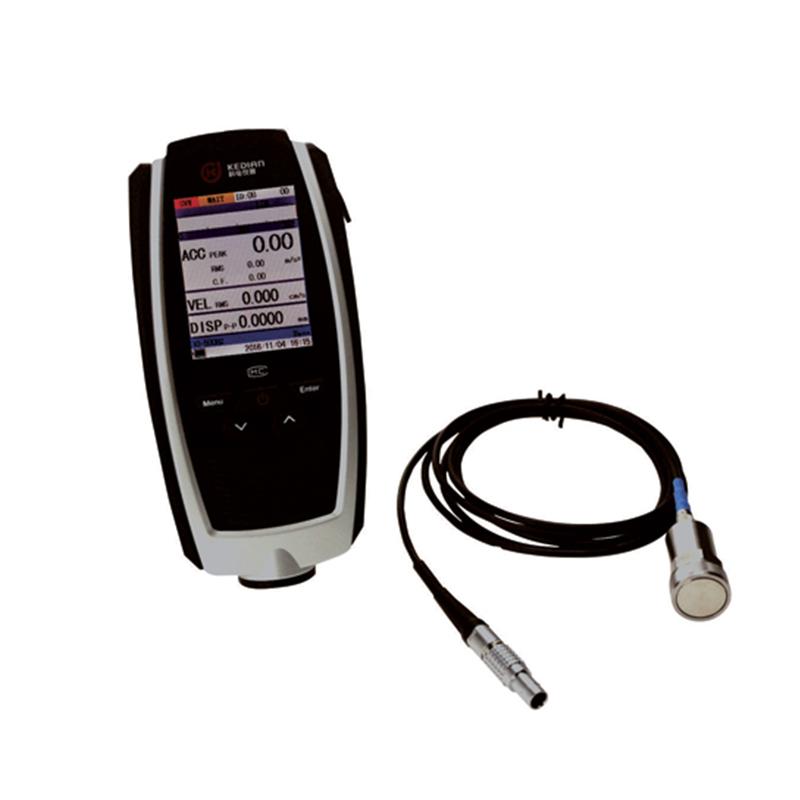

KTEC KV-3000 Vibration Meter

KV-3000

Introduction to KV-3000 vibrometer

The KV-3000 series vibrometer is a portable vibrometer for on-site mechanical vibration measurement and analysis applications. It uses Fast Fourier Transform (FFT) to convert time-domain signals into frequency-domain signals for analysis, which can quickly determine the cause and location of faults. The instrument integrates the professional industrial design concept of Kedian to make the instrument operation more humanized, the 2.4-inch high-definition TFT color screen makes the measurement display clearer, the Bluetooth 2.0 wireless communication mode makes the data transmission more flexible, and a variety of measurement modes make the instrument more suitable for the work needs of the industrial site and provides customers with more convenience.

Operating Principle

This instrument uses an ICP accelerometer to convert the vibration signal into an electrical signal. Through the processing and analysis of the input signal, the acceleration peak, true RMS value and peak coefficient, velocity RMS value, displacement peak-to-peak value of the vibration measurement are obtained, and the corresponding measured values and spectrum list can be printed.

Scope of application

This instrument is suitable for routine vibration measurements, especially in rotating or reciprocating machinery, it can not only measure the acceleration, velocity and displacement of vibration, but also perform simple fault diagnosis and printout.

The technical performance of this instrument meets the requirements of the sinusoidal excitation vibration standard in CHINA's national standard GB 13823.3. It is widely used in machinery manufacturing, electric power, metallurgy, vehicles and other fields.

Parameters

a. Measuring range

Acceleration: (0.1~392)m/s2 (peak)

Speed: (0.01~80)cm/s (RMS)

Displacement: (0.001~10)mm (peak-to-peak)

b. Frequency range

Acceleration: 10Hz~10kHz

Speed: 10Hz~1kHz

Displacement: 10Hz~500Hz

c. Accuracy

Reference sensitivity: ±2%

Amplitude Linear Relative Error: ±5%

Relative error of frequency response: ±5%

d. Temperature range

-10℃~40℃

e. Humidity range

≤80%RH

f. Display: 2.4 inch TFT dot matrix color screen 320*240 pixels (with LED backlight)

g. Battery: Two AA type NiMH batteries, charging for 12 hours, continuous measurement for 25 hours

h. Dimensions: 150mm(L)*68mm(W)*33mm(H)

i. Net weight: 220g (including battery)

Features

1. Number of FFT spectrum lines: 200, 400, 800, 1600

2. Anti-mixing filter: 5th-order low-pass elliptical filter.

3. OPTIONAL FREQUENCY RANGE: 10-200HZ, 10-500HZ, 10-1KHZ, 10-2KHZ, 10-5KHZ, 10-10KHZ.

4. AD sampling: 4 channels, 12 bits, up to 25.6K sampling frequency.

5. Sampling points: 512, 1024, 2048, 4096.

6. Window function: rectangular window, Hanning window, Haining window, flat top window.

7. Display mode: 2.4-inch TFT high-definition color screen, 320*240 resolution, and the brightness of the background light is continuously adjustable.

8. Data interface: Bluetooth 2.0 wireless communication data interface.

9. Measurement mode: dedicated mode and spectrum mode.

10. Perpetual calendar: It can display time information, and at the same time, it can also make the measured data with the date, which has traceability.

11. Storage mode: automatic storage, 99 dots can be stored, and each dot can store 50 data and a spectrum list.

12. Units of measurement: metric and imperial systems can be converted to each other.

13. Shutdown mode: manual, automatic optional.

14. Instrument information: You can check the software version and manufacturer information of the instrument.

15. Restore factory settings: When the instrument system is disordered due to misoperation or other external reasons, the user is allowed to restore to the state when leaving the factory.

16. Underpower indication: In the lower left corner of the instrument screen, the battery level icon is displayed to prompt the current battery status.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
