CHINA ASR-4326 UL94 Plastic horizontal and vertical combustion Tester

Flame height can be adjusted from 20mm to 175mm according to standard requirements, combustion angle 20 °, 45 °, 90 ° (ie 0 °) can be adjusted, and the flammability of materials or foams can be evaluated such as: V-0, V-1, V-2, HB, HF-1, HF-2, HBF grade.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

AISRY ASR-4326 Plastic horizontal and vertical combustion testing machineSPEC

AISRY ASR-4326 Plastic horizontal and vertical combustion testing machineDetails

AISRY ASR-4326 Plastic horizontal and vertical combustion testing machinePacking list

SKU
NB031343
test space
≥ 0.5 cubic meters with Glass observation door
Flame time
0~99 minutes and 99 seconds can be set
afterflame time
0~99 minutes and 99 seconds can be set
afterflame time
0~99 minutes and 99 seconds can be set
Combustion angle
20 °, 45 °, 90 ° (ie 0 °) adjustable
Combustion dimension parameters
The inner diameter of the nozzle is Ø 9.5mm, the effective length of the nozzle is 100mm, and there are air conditioning holes.
flame height
Adjustable from 20mm to 175mm according to standard requirements
Sample method
Motor drive front and rear left and right positive splines
Power
AC 220V/50H
ASR-4326
Plastic horizontal and vertical combustion testing machine
Flame height can be adjusted from 20mm to 175mm according to standard requirements, combustion angle 20 °, 45 °, 90 ° (ie 0 °) can be adjusted, and the flammability of materials or foams can be evaluated such as: V-0, V-1, V-2, HB, HF-1, HF-2, HBF grade.

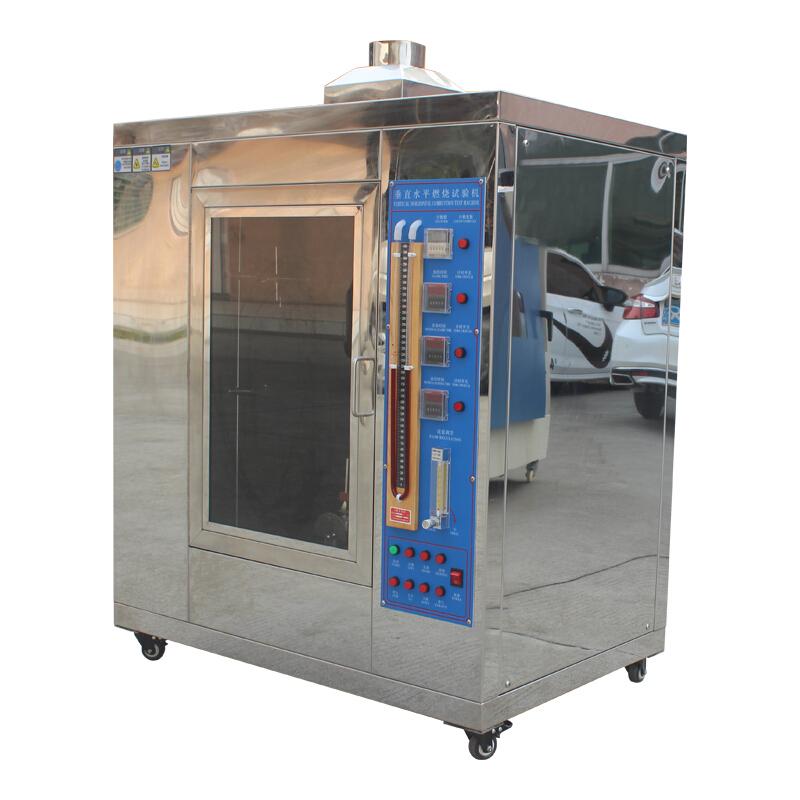

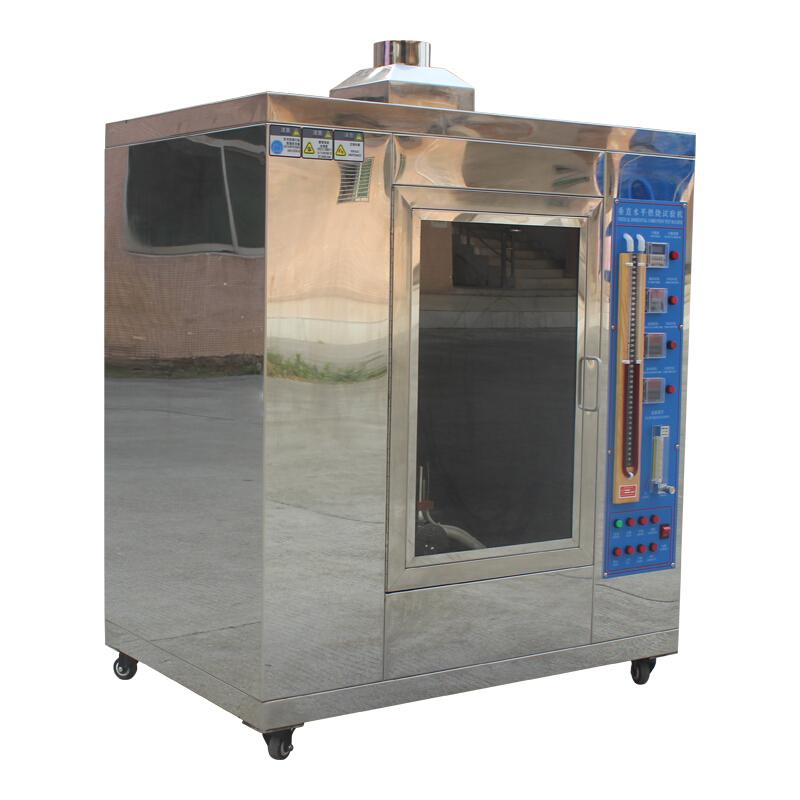

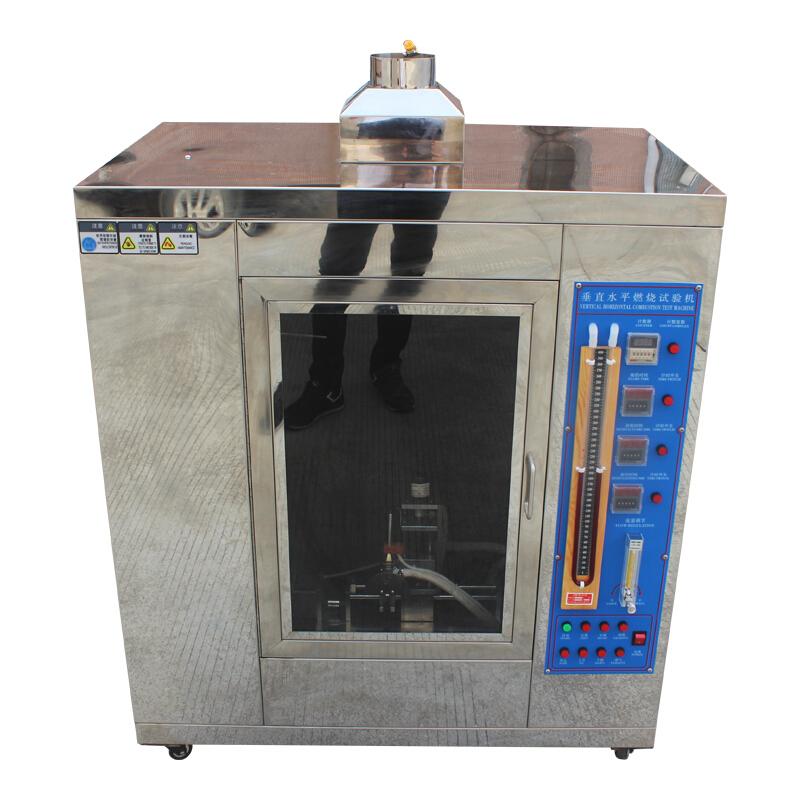

CHINA ASR-4326 UL94 Plastic horizontal and vertical combustion Tester Picture

Introduction

This Tester is suitable for inspecting and evaluating the combustion characteristics of plastic materials. It is designed and manufactured according to the relevant provisions stipulated in the US UL94 standard and GBT2408 standard "Flammability Test of Plastic Materials for Equipment and Appliance Parts". Carry out horizontal and vertical flammability tests, and is equipped with a gas flow meter to adjust the size of the flame, and the operation is simple and safe. This instrument can evaluate the flammability of materials or foam plastics such as: V-0, V-1, V-2, HB, HF-1, HF-2, HBF grades.

Reference standards: UL94  , GBT2408

FAQ
QDo you have the UL 94 flame calibrated module?
A Generally, it depends on the flame height, and the customer needs to buy the instrument by himself, or call the Measurement Formula to calibrate
QWhat are the Dimensions of this Equipment?
A Dimension: 1000 * 650 * 1150
QASR-4326 UL94 Plastic horizontal and vertical combustion, what does this vertical combustion equipment need to be configured in the laboratory?
A gas
QDoes ASR-4322 meet the testing requirements of GBT2408-2008?
A This standard requires vertical and horizontal combustion with the ASR-4326 of this equipment
