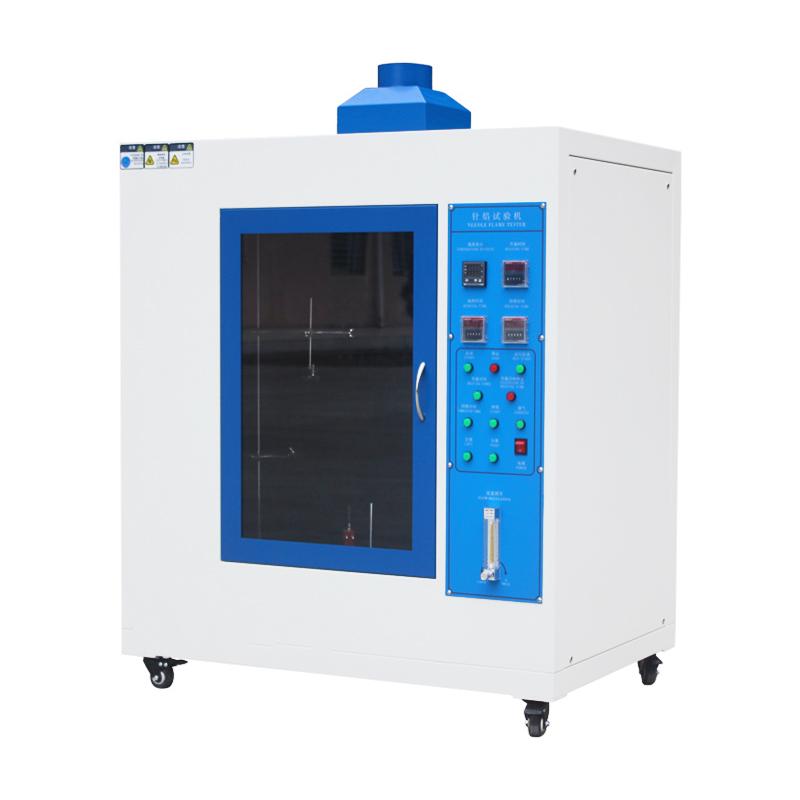

CHINA ASR-4323 Needle Flame Tester
ASR-4323
AISRY ASR-4323 Needle flame TesterSPEC
AISRY ASR-4323 Needle flame TesterDetails
AISRY ASR-4323 Needle flame TesterPacking list
- SKU
- NB031344
- Needle combustion device
- Stainless steel, inner hole φ 0.5 +/- 0.1mm, outer diameter ≤ φ 0.9mm, length ≥ 35mm
- Combustion angle
- Vertical (when adjusting and measuring flame height) or tilted 45 ° (when testing)
- Combustion gas
- 95% butane or propane gas
- Ignition paving layer
- White pine board (thickness 10mm), the surface is covered with a layer of 12~ 30g/m2 standard silk paper, 200mm +/- 5mm away from the flame application
- Glowing wire temperature
- RT+~1000℃
- Flame temperature requirements
- From 100 +/- 2 ℃ to 700 ℃ +/- 3 ℃, it should be completed within 23.5 +/- 1.0s
- flame height
- 12Mm +/- 1mm, height measurement device
- Flame time
- 0s~ 999.9s adjustable, generally set to 30s
- Test space
- ≥ 0.5m3, black background, (can be customized according to customer requirements 0.75 m3 cubic or 1 m3)
- Thermocouple
- K type insulated armored galvanic couple (φ 0.5mm)
- Test time procedure
- Automatic control, independent ventilation system
- Test Power Supply
- 220V/AC，50Hz
Scope of application
The needle flame Tester is suitable for the research, production and quality inspection departments of electrical and electronic equipment and its components and components, such as lighting, low-Voltage electrical appliances, household appliances, machine tool appliances, motors, power tools, electronic instruments, electrical instruments, information technology equipment, electrical affairs equipment, electrical connectors, accessories, etc., and is also suitable for insulating materials, engineering plastics or other solid combustible materials industry.
Meets standards
GB4706.1, GB5169.5-2008, IEC60695-2-2IEC60695-11-5 and other related standard requirements
Experimental principle
The needle flame Tester is a needle-shaped burner of specified size (Φ0.9mm), which is used with specific gas (butane) and regularly and directionally ignited at a 45° angle, and the ignition risk of the small flame caused by fault conditions in the equipment is evaluated according to whether the test is ignited and the ignition time and combustion length.
Features
1. The characteristics of this test equipment are that the combustion box and the main mechanical parts are made of stainless steel, with exquisite shape and flue gas corrosion resistance. The control system has a high degree of automation, the key components are imported parts, the digital display time, the fixture is three-dimensionally adjustable, the test program is automatically controlled, the air is independently extracted, the observation record is easy to use, stable and reliable.
2. The shell and important parts of the Test Chamber are made of stainless steel, which is resistant to smoke and gas corrosion. The control system has a high degree of automation and has an automatic ignition function. The temperature and time digital display makes it easy to observe and record, and the use is stable and reliable.
