CHINA ASR-4322 Automotive Interior Material Flame Retardant Test Chamber

Metal size cover length 385mm, depth 204mm, height 360mm, gas lamp nozzle inner diameter 9.5mm, combustion time 0~99.99/S/M/H.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

AISRY ASR-4322 Automotive interior material flame retardant Test ChamberSPEC

AISRY ASR-4322 Automotive interior material flame retardant Test ChamberDetails

AISRY ASR-4322 Automotive interior material flame retardant Test ChamberPacking list

SKU
NB031352
combustion time
0～99.99／S／M／H
Metal size
Cover length 385mm, depth 204mm, height 360mm
Gas lamp nozzle inner diameter
9.5mm
Nozzle mouth
The center is 19mm below the center of the free end of the sample
Length of metal comb
At least 110mm, with 7-8 smooth round teeth per 25mm
Steel ruler Accuracy
1mm
gas
Liquefied gas (self-provided)
Power
220V／50Hz。
ASR-4322
Automotive interior material flame retardant Test Chamber
Metal size cover length 385mm, depth 204mm, height 360mm, gas lamp nozzle inner diameter 9.5mm, combustion time 0~99.99/S/M/H.

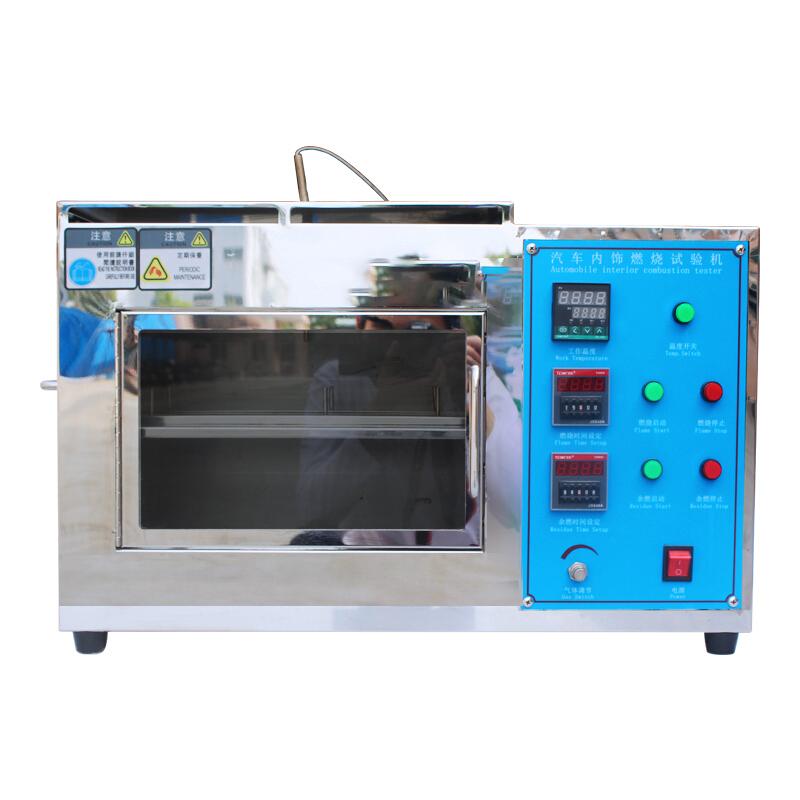

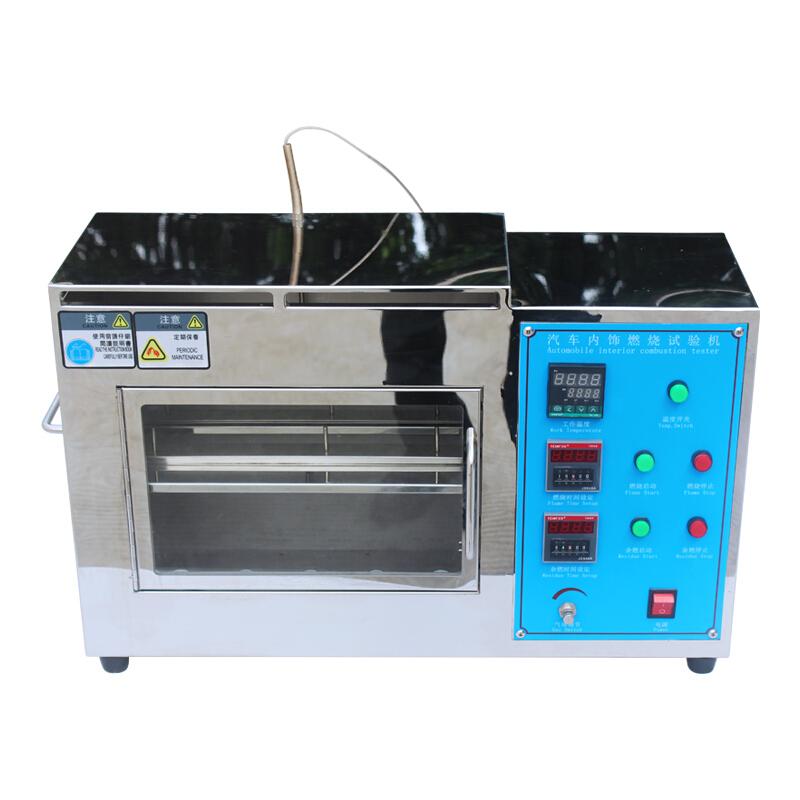

CHINA ASR-4322 Automotive Interior Material Flame Retardant Test Chamber Picture

Introduction

The equipment consists of a control box, a combustion box, a combustion lamp, a solenoid valve, a high-Voltage igniter, a test fixture, a gas pipe and a signal control line; it meets the standards of GB8410-2006 , TL1010 , GM6090M , DIN7520 , and GM9070P .


FAQ
QDoes ASR-4322 meet the testing requirements of GBT2408-2008?
A This standard requires vertical and horizontal combustion with the ASR-4326 of this equipment
QI want to do about JJG (light industry) 114 standard test, this car interior material flame retardant test chamber is OK?
A Sure
