CHINA ASR-5025B 360 Degree Wire Rod Swing Tester
It has 6 test stations, the test angle is 0~ ± 180 °, the test speed is 5-60 times/min (knob speed regulation, LCD display), and it is equipped with six groups of anti-skid, which is not easy to damage the special fixture of the sample.
Model：
ASR-5025B
Similar products
AISRY ASR-5025B 360 degree wire swing testing machineSPEC
AISRY ASR-5025B 360 degree wire swing testing machineDetails
AISRY ASR-5025B 360 degree wire swing testing machinePacking list
- SKU
- NB031366
- Test station
- Six (working simultaneously)
- test angle
- 0- ± 180 ° (scale dial plus needle indication, manually adjustable)
- Odd folding angle display and adjustment
- Pointer indicator scale dial, manual adjustment of eccentric shaft
- Test speed
- 5-60 times/min (knob speed regulation, LCD display)

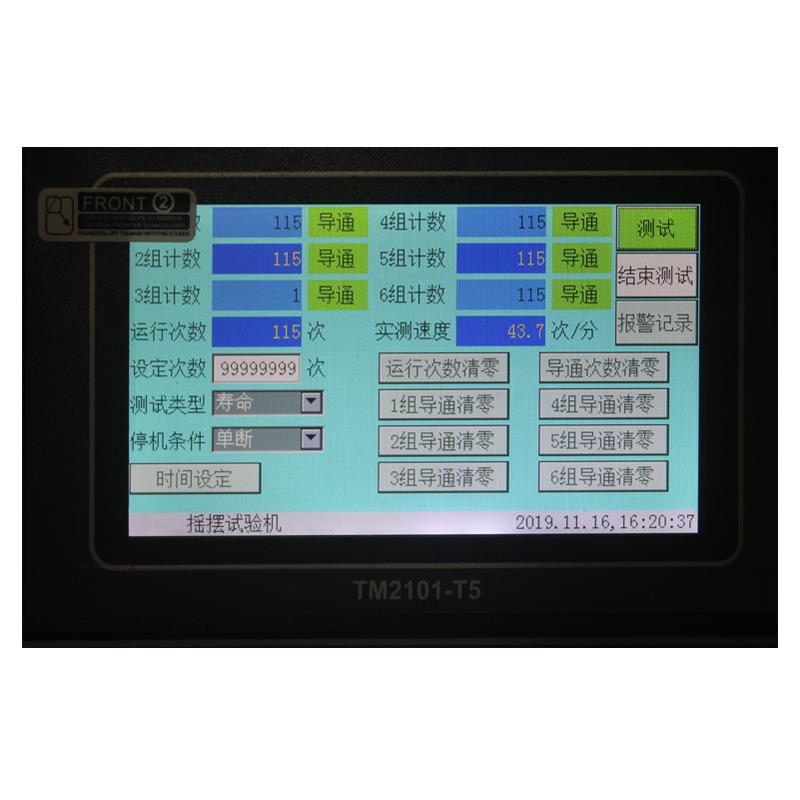

- Total Counter of blue and white times
- 0-999999 times (can be preset, and the number of times reached will automatically stop)

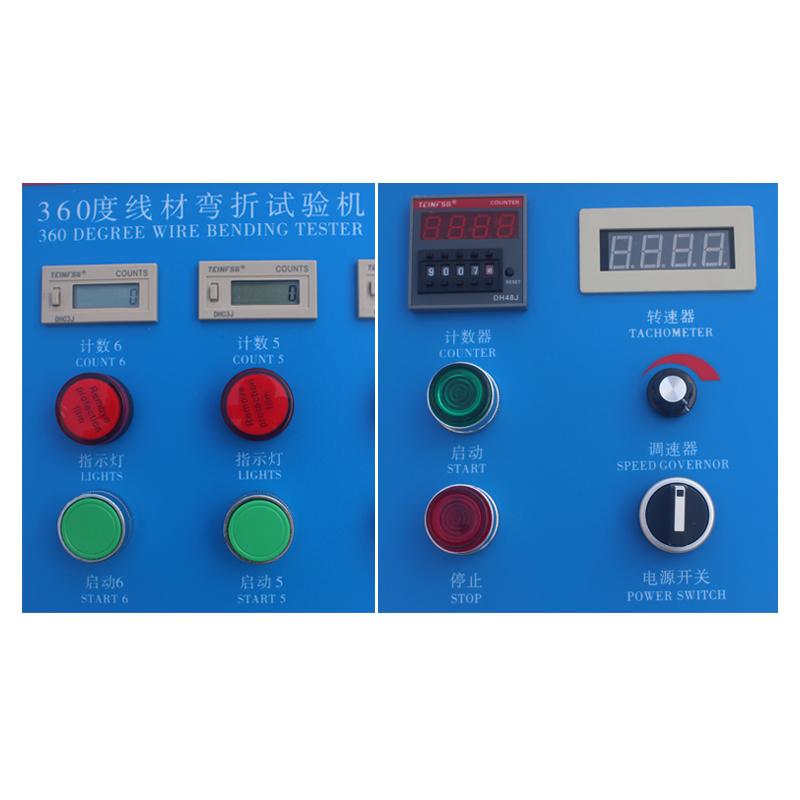

- Bending conduction Counter
- 0-999999 times (the conduction is automatically counted separately, one group is disconnected, and the counting is automatically stopped)
- Hook Weight
- Six each for 50/100/200/300/500g
- Hand tip test fixture
- Six sets of non-slip, not easy to damage the sample special fixture
- Test fixing rod
- Can be adjusted up and down, fixed at the lower end of the product, the test is more in line with the standard
- Machine size
- 120Lx600Wx800H（mm）
- Machine Weight
- 100kg
- Power
- AC220V, 50HZ
ASR-5025B
360 degree wire swing testing machine
It has 6 test stations, the test angle is 0~ ± 180 °, the test speed is 5-60 times/min (knob speed regulation, LCD display), and it is equipped with six groups of anti-skid, which is not easy to damage the special fixture of the sample.
Introduction
Compliant with standards: ICE60227-1, VDE0472, GB/T5023.2-1997. The test method of this machine is to take the test piece about 5m long, bend the middle section on the two round wheels of the specified paper towel, apply load at both ends, and connect the current, and then move the round wheel at a speed of 0.33m/sec and a stroke of 1m. , so that the test piece is bent and stretched back and forth. When the wire is broken or the set number of times is reached, it will automatically stop, and the test piece will be removed to evaluate its flexural resistance.
FAQ
QHow many stations does the ASR-5025B swing testing machine have?
A
Hello, 6.
