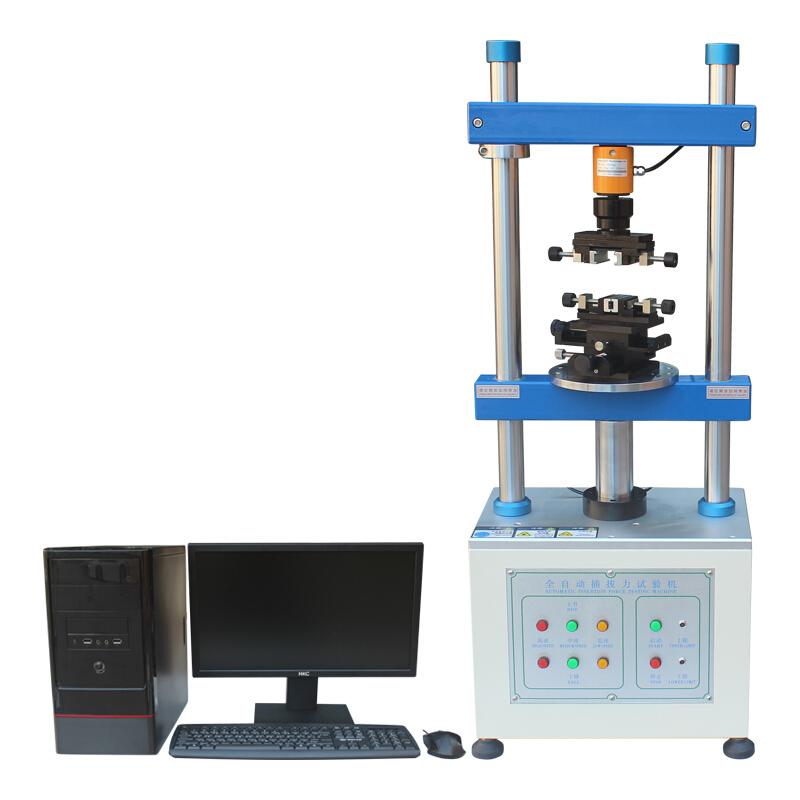

CHINA ASR-1220S vertical plug-in life Tester

ASR-1220S

Vertical plug-in Life Cycle Tester

Introduction

1220S insertion force testing machine is suitable for the insertion force and extraction force test of various connectors. With the patented automatic centering device, it will be able to obtain a completely accurate insertion force test. It uses the Windows window Chinese screen to set and operate. Simple and convenient, and all data can be stored (test conditions, displacement, graphs, life graphs, inspection reports, etc.), to solve the problem of fixtures for various connector tests and the male and female connectors can automatically focus during the test, there will be no Eat unilateral problems. Equipped with a dynamic impedance test system, the dynamic impedance can be tested and drawn while testing the insertion force (load stroke-impedance curve)

• Connector single pin and plastic retention test

• It can be connected with the contact impedance machine at the same time (optional)

• Various compression and tensile breaking strength tests

Test items

• Connector single hole plug test;

• Connector row plugging test;

• Connector plugging life test;

• Connector single PIN and plastic retention test;

• Connector positive force test (NORMAL FORCE);

• General compression, tensile failure test;

• It can be connected with the contact impedance machine at the same time (optional).

Packing list：Host X1, manual X1, warranty card X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
