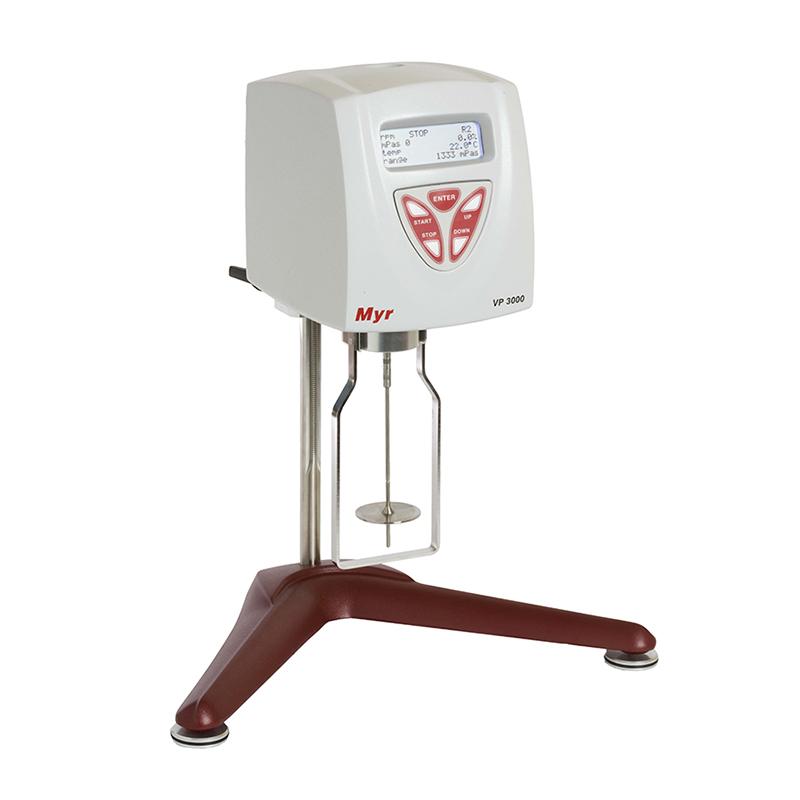

TQC DV1305 Rotational Viscometer accuracy +/- 1% Repeatability +/- 0.2%

The TQC Rotational Viscometer DV1305 is an imported high-precision Viscometer with a range of 3~ 2000000mPas. The DV1305 is the V1 model of the TQC VR3000 series Rotational Viscometer without Data storage function.
Model：
Certificate
Contact
Details SPEC CAT OI

TQC sheen DV1305 ViscometerSPEC

TQC sheen DV1305 ViscometerDetails

TQC sheen DV1305 ViscometerPacking list

SKU
NB000314
Display mode
digital explicit
Measurement range
3~2000000mPa·s
Rotor specification
L1#、L2#、L3#、L4#
Rotor speed
0.5/0.6/1/1.5/2/2.5/3/4/5/6/10/12/20/30/50/60/100/200rpm
Reproducibility
±0.2%F.S
Measurement Accuracy
±1%F.S
Power supply Voltage
100~240V 50~60Hz
Interface
PT-100 interface, RS-232 interface
Application standard
BS 2555、BS 5350、ISO2555、ISO1652、ASTM: 115, 789, 1076, 1286, 1417, 1439, 1638, 1824等
Operating temperature
Indoor temperature 10~40 ℃; Relative Humidity < 80%
Full scale percentage
%
temperature
℃ or ° F
Temperature range
-15~180℃
Temperature Resolution
0.1℃ / 32.18ºF
Temperature Accuracy
±0.1℃
DV1305
Viscometer
TQC DV1305 Rotational Viscometer accuracy +/- 1% Repeatability +/- 0.2% Picture

Introduction to DV1305 Rotational Viscometer

TQC DV1305 rotary viscometer is a high-precision viscometer imported from the Netherlands, which belongs to the V1 type in the TQC VR3000 series rotary viscometer, without memory, and its measurement accuracy is ±1%, and the repeatability is ±0.2%.The DV1305 Rotational Viscometer is an easy-to-use, high-precision Rotational Viscometer designed according to industry standards(Brinell method).

The TQC Rotational Viscometer VR3000V1 and V2 can be freely combined to provide a variety of suitable modes to meet the needs of both general and advanced users. Both versions of the viscometer are suitable for three ranges from low viscosity to high viscosity. Measurement data can be printed by connecting to an optional thermal printer to meet their quality control requirements.

V1 and V2 are Rotational Viscometers for rapid viscosity determination under standards such as ISO 2555 and ASTM. In the quality control laboratory, the instrument provides a viscosity test that is 100% compatible with the Brinell method and can be compared with data in accordance with accredited standards.

Outline and structure drawing

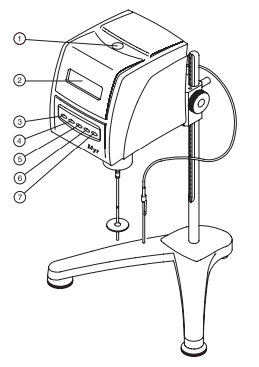

Front structure diagram of TQC DV1305 rotary viscometer main unitTQC DV1305 Rotational Viscometer Back Structure Diagram

The front structure of the main engine

1) Level indicator

2) LCD display

3) "START" to start the measurement

4) "STOP" to stop the measurement

5) "ENTER" to confirm the parameter selection

6) "UP" up parameter selection

7) "DOWN" parameter selection

The back of the console

8) Main switch

9) Power outlets

10) PT-100 interface

11) RS-232 interface

Application

TQC DV1305 rotary viscometer is suitable for:chemical industry, food industry, industry, cosmetics industry, printing industry, etc.;

Meets standards

BS: 2555, 5350;

ISO: 2555, 1652;

ASTM: 115, 789, 1076, 1286, 1417, 1439, 1638, 1824等

Actual picture of the product

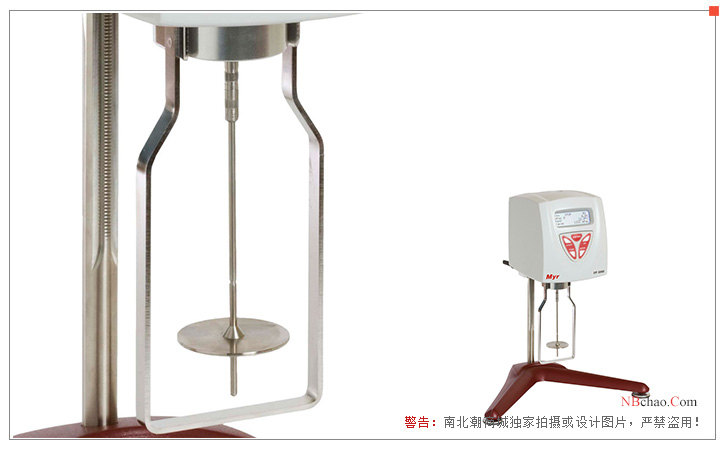

Exterior drawing and rotor diagram of the TQC DV1305 Rotational Viscometer

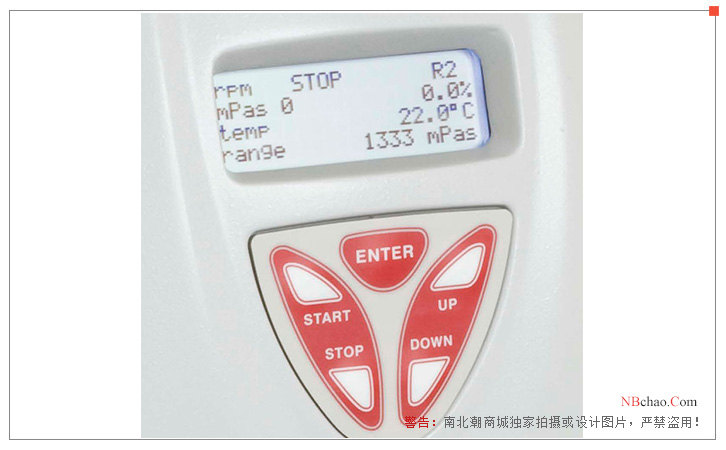

TQC DV1305 Rotational Viscometer operation panel and display

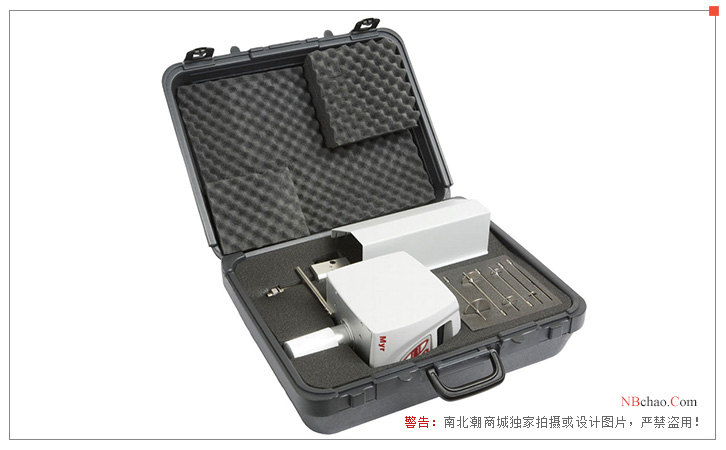

TQC DV1305 Rotational Viscometer box

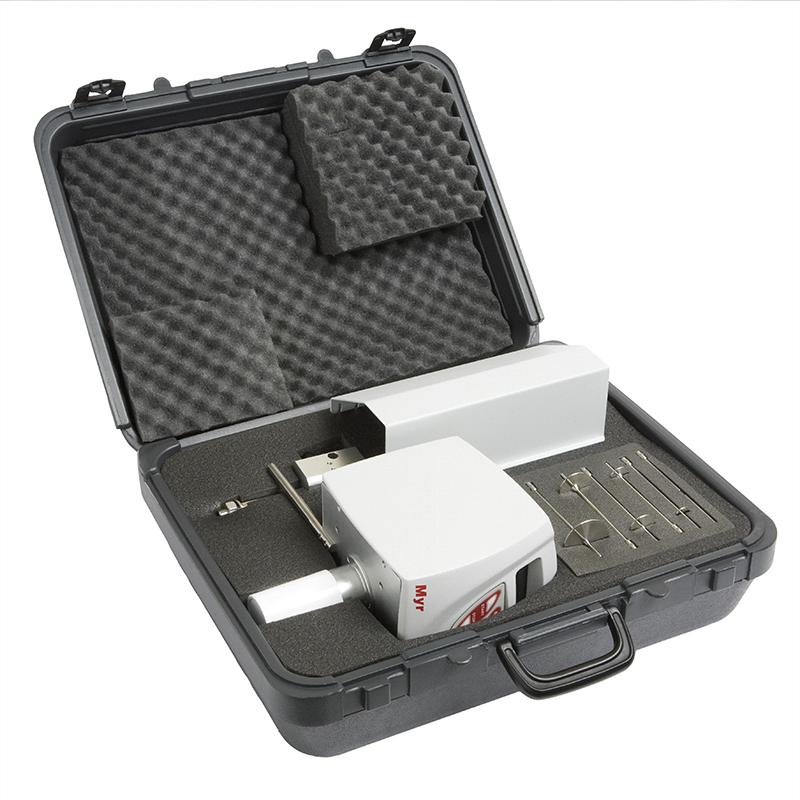

Product packaging

A complete set of storage rack standard rotors (4 L-rotors, 6 R-rotors, 6 H-rotors), rotor guards, temperature sensor PT100, calibration certificate and user manual.

Optional

Adapter for smaller samples

Adapters for low-viscosity materials

Computer basic software

Adapter for rotational motion

* The above adapters are equipped with different viscosity ranges

Rotor R1 (only for R- and H-type rotors, and viscosity limit can be expanded)

* For use with V1 or V2, both with different viscosity ranges

Computer basic software

Safety precautions:

Avoid using in excessively high or low environments;

Avoid humid environments;

Overview of Rotational Viscometer models

Model V10.3, 0.5, 0.6, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 10, 12, 20, 30, 50, 60, 100, 200 rpm
Model V20.1, 0.2, 0.3, 0.5, 0.6, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 10, 12, 20, 30, 50, 60, 100,200 rpm
rotor
L-type (low viscosity)4 rotors (L1 - L2 - L3 - L4)
Type R (Medium Viscosity)6 rotors (R2 - R3 - R4 - R5 - R6 - R7)
H-type (high viscosity)6 rotors (H2 - H3 - H4 - H5 - H6 - H7)
Viscosity range
V1L3 - 2,000,000 mPas/cP - 76 ranges (19 RPM - 4 rotors)
V1R20 - 13,000,000 mPas/cP - 114 ranges (19 RPM - 6 rotors)
V1H1.6 - 1,066,660 dPas/P - 114 ranges (19 RPM - 6 rotor)
V2L3 - 6,000,000 mPas/cP - 84 ranges (21 RPM - 4 rotors)
V2R20 - 40,000,000 mPas/cP - 126 ranges (21 RPM - 6 rotors)
V2H1.6 - 3,200,000 dPas/P - 126 ranges (21 RPM - 6 rotors)
precision±1%
repeatability±0.2%

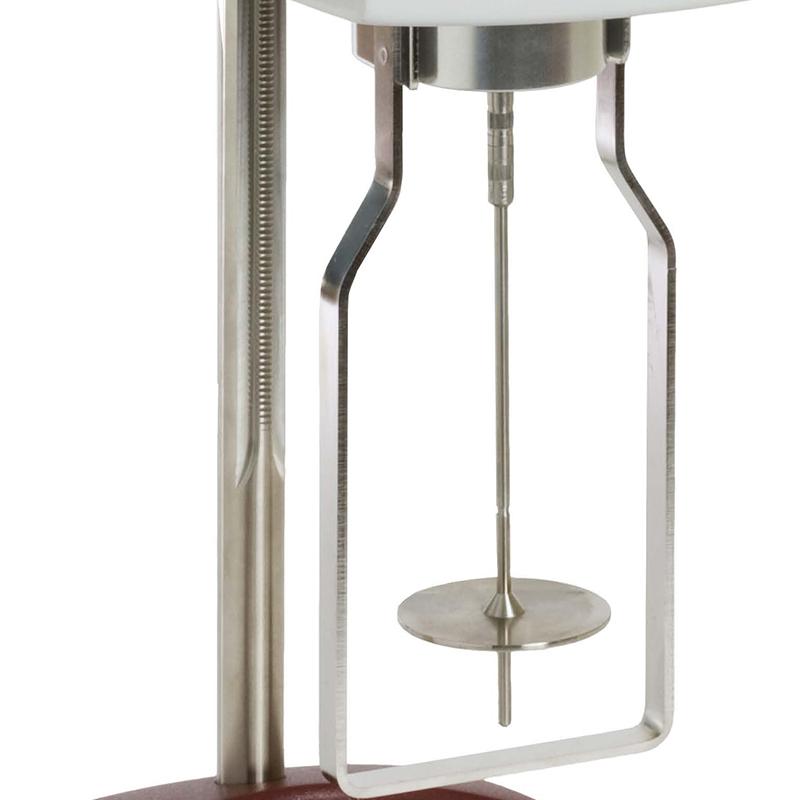

转子1
转子2

Take you to the Dutch TQC

TQC公司的历史发展

TQC自动化生产和严格的品质把控

TQC研发团队




FAQ
QI want to do a test on the GB/T265 standard. Is this Viscometer okay?
A Sure
QDoes this rotational viscometer measure surface viscosity?
A Hello, this rotational viscometer DV1305 is not a measurement of surface viscosity, but a measurement of dynamic viscosity.
QCan this DV1305 rotational viscometer be connected to the printer for printing data?
A Hello, yes, you can connect a thermal printer to print data, but the printer needs to be purchased separately.
QDoes this swirl/spin viscosity meter have a calibrating certificate?
A Hello, this DV1305 rotating viscometer is equipped with a calibrating certificate.
