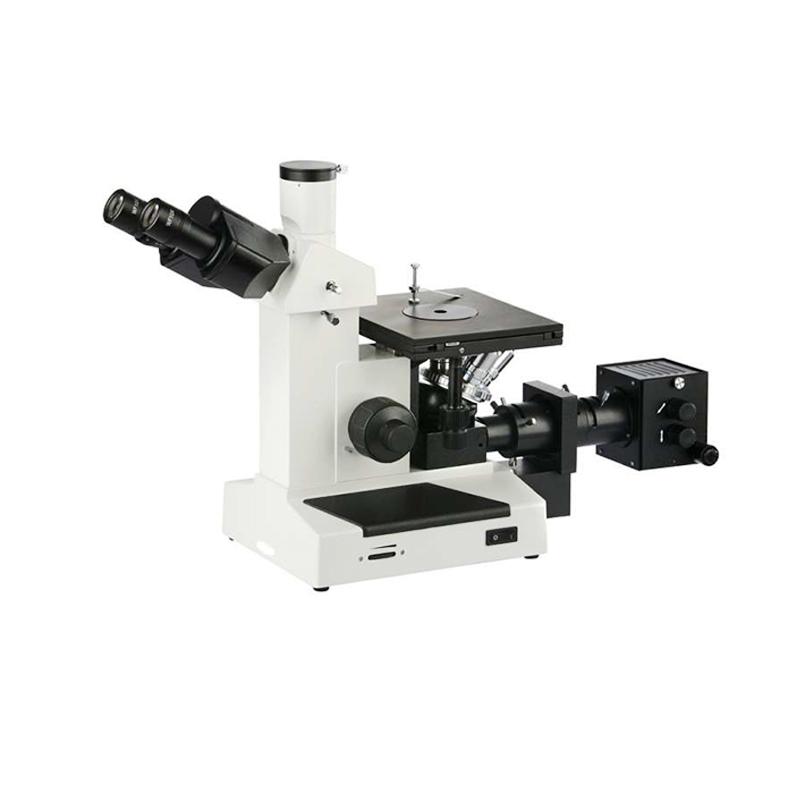

IPRE 4XC-W Computerized Metallurgical Microscopy
4XC-W
Ipre 4XC-W Computer Metallurgical MicroscopySPEC
Ipre 4XC-W Computer Metallurgical MicroscopyDetails
Ipre 4XC-W Computer Metallurgical MicroscopyPacking list
- SKU
- NB031678
- Optical inspection system
- Optical inspection system for color difference correction
- observation head
- Hinged binocular lens barrel, 30 ° tilt; triocular lens barrel, adjustable pupil distance and diopter.
- Eyepieces (large field of view)
- WF10X(Φ18mm)
- Standard objective (long distance flat field color difference objective)
- PL L 10X/0.25 WD8.90mm；PL L 20X/0.40 WD3.75mm；PL L 40X/0.65 WD2.69mm；SP 100X/0.90 WD0.44mm （油）
- converter
- Ball internal positioning four-hole converter
- Focusing system
- Coarse fretting coaxial focusing, fine-tuning grid value: 0.002mm; stroke (from the focus of the surface of the stage): 30mm. Coarse elastic adjustable, with locking and limiting device
- stage
- Double-decked mechanical mobile (size: 180mmX150mm, moving range: 15mmX15mm)
- lighting system
- 6V 20W halogen lamp, adjustable luminance
- Color filter
- Yellow color filter, green color filter, blue color filter
- Metallographic analysis system
- JX2016 metallographic analysis software, 3 million camera device, 0.5X adapter mirror interface, micrometer
Introduction
The 4XC-W computerized metallurgical microscope is a trinocular inverted metallurgical microscope, equipped with excellent long-focal length plan achromatic objective lens and large field of view plan eyepiece, and the illumination system adopts Köhler illumination method, and the field of view is evenly illuminated. The product is compact in structure, convenient and comfortable to operate. It is suitable for microscopic observation of metallographic structure and surface morphology, and is a satisfactory instrument for metallurgy, mineralogy, and precision engineering research.
Features
Observation system
Hinged observation tube: binocular observation tube, adjustable monovision, 30° tilt of the lens tube, comfortable and beautiful. Trinocular observation tube for connecting to a camera device. Eyepiece: WF10X large field of view flat field eyepiece, field of view φ18mm, providing a wide and flat observation space.
Mechanical stage
Mechanically mobile stage with built-in rotatable circular stage plate that rotates the circular stage plate at the moment of polarization observation to meet the requirements of polarization microscopy.
Lighting system
With Kola illumination, the aperture diaphragm and field diaphragm can be adjusted by dial, making the adjustment smooth and comfortable. The optional polarizer allows the polarization angle to be adjusted by 90° to observe microscopic images in different polarization states.
Options
| Eyepiece (large field of view) | WF16X(Φ11mm) |
| WF10X(Φ18mm) with cross differentiation ruler | |
| Optional objective (long-range plan achromatic objective) | PL L50X/0.70 WD2.02mm |
| PL L 60X/0.75 WD1.34mm | |
| PL L 80X/0.80 WD0.96mm | |
| PL L 100X/0.85 WD0.4mm | |
| converter | Five-hole converter is positioned inside the ball |
| Polarizing accessories | Polarizer group, polarizer group |
| Computer | HP Business Jets |
