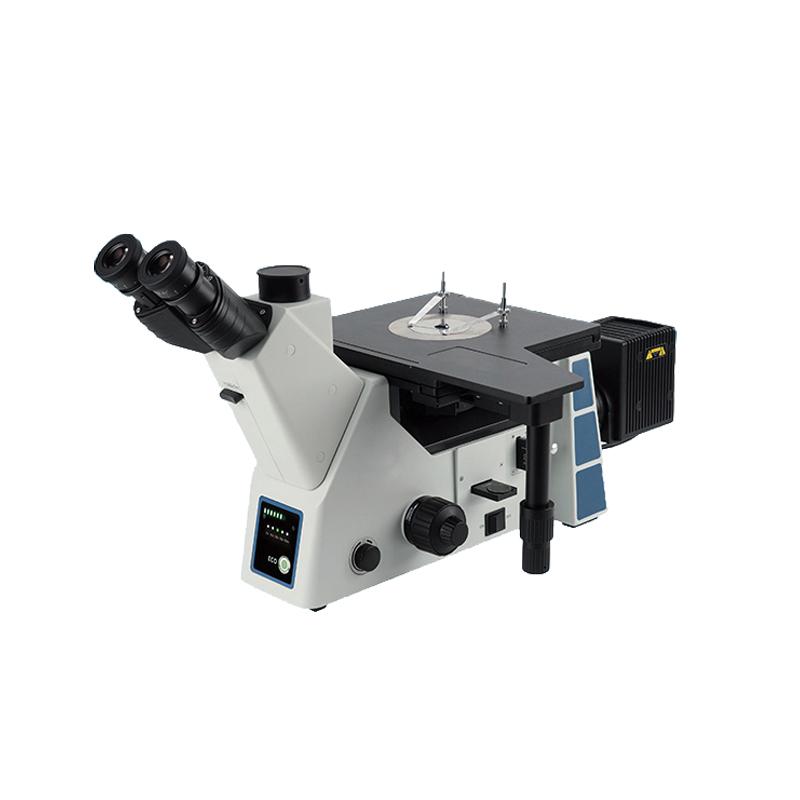

IPRE FX-41MW Computerized Research Grade Metallurgical Microscopy
FX-41MW
Ipre FX-41MW Computer-Based Research Grade Metallurgical MicroscopySPEC
Ipre FX-41MW Computer-Based Research Grade Metallurgical MicroscopyDetails
Ipre FX-41MW Computer-Based Research Grade Metallurgical MicroscopyPacking list
- SKU
- NB031682
- Optical inspection system
- Optical inspection system for color difference correction
- observation head
- Trinocular observation tube, 45 ° tilt, hinge group can be 360 ° swirl/spin, fixed eyepiece tube, pupil distance adjustment range 50-75mm, two-speed splitting ratio: binocular: trinocular = 100:0 or 0:100
- eyepiece
- High eye point and large field of view flat field eyepiece PL10X/22mm, adjustable visibility.
- Infinite distance light and dark field objective
- LMPL5X /0.15BD DIC WD9.0；LMPL10X/0.30BD DIC WD9.0；LMPL20X/0.45BD DIC WD3.4
- Infinite distance light and dark field objective
- LMPLFL50X/0.55 BD WD7.5
- converter
- Inner Positioned 5-Hole Open-Dark Field Converter (with DIC Slot), Built-in Magnification Sensors
- rack
- Reflection light and dark field gold camera holder, using low hand position coarse fine-tuning coaxial, coarse adjustment stroke 9mm, focal surface up 6.5mm, down 2.5mm, fine-tuning Accuracy 0.002mm, with elastic adjustment handwheel to prevent sliding
- rack
- With bright and dark field switching device, with variable field diaphragm and aperture diaphragm, the center can be adjusted; with color filter slot and polarizing device slot, with light source luminance indicator strip, with infrared sensing and objective lens magnification display function
- stage
- Three-layer mechanical mobile platform, Platform size: 240 (W) × 250 (L), moving range 50 × 50mm, two-way line-rail transmission, right-hand low-hand position control
- lighting system
- External wide Voltage transformer, input 100-240V, output 15V13.4A, 12V100W halogen lamp, continuous adjustable luminance
- Polarizing device
- Polarizer insert board, fixed polarizer insert board, 360 ° swirl/spin polarizer insert board
- Color filter
- LBD filter.
- Metallographic analysis system
- JX2018 metallographic analysis software, 5 million camera device, 0.5X adapter mirror interface, micrometer
Introduction
FX-41MW Computerized Research Grade Metallurgical Microscope is a trinocular inverted metallurgical microscope with a newly designed infinity optical system, which can be widely used in casting, smelting, and heat treatment research, inverted microscopes for a variety of inspections such as raw material inspection or material handling analysis. The machine comprehensively covers a variety of observation methods such as brightfield, darkfield, simple polarization, differential interference, etc., to meet a variety of research needs.
Features
Comfortable and simple mode of operation
In order to meet the needs of users for long-term observation, the FX-41MW uses a low-hand operation mode and is equipped with a 360° rotating binocular observation tube, which fully conforms to the ergonomic observation mode.
Stable and intimate exterior design
The body of FX-41MW is made of all-metal casting, and the surface is treated by anti-corrosion and wear-resistant technology, which ensures quality and is solid and stable. Make full use of the built-in space of the fuselage, place the instrument disassembly tool, and use it to disassemble the main parts of the instrument, which is practical and convenient to store.
Pre-magnification display function
The front objective magnification display function displays the current magnification directly in front of the instrument through the built-in magnification sensor, making research work more convenient.
New smart ECO system
With the addition of the eco-friendly and economical ECO infrared sensing system, the system will automatically turn off or back on when the microscope is not operated for a long time to save energy.
Options
| eyepiece | High eyepoint large field of view plan eyepiece PL10X/22mm, adjustable field of view, with micrometer |
| High eyepoint large field of view planar eyepiece PL15X/16mm, adjustable field of view | |
| objective | Infinity long-range chiaroscuro semi-apochromatic objective : LMPLFL100X/0.80 BD WD2.1 |
| Differential interference | DIC differential interference components |
| Computer | HP Business Jets |
