IPRE FXD-30MW Computerized Metallurgical Microscopy
FXD-30MW
Ipre FXD-30MW Computer Metallurgical MicroscopySPEC
Ipre FXD-30MW Computer Metallurgical MicroscopyDetails
Ipre FXD-30MW Computer Metallurgical MicroscopyPacking list
- SKU
- NB031683
- Optical inspection system
- Optical inspection system for color difference correction
- observation head
- Hinged trinocular head, 45 ° tilt, pupil distance adjustment range: 54-75mm, unilateral visibility adjustment +/- 5 diopter split ratio: binocular 100%, binocular: trinocular = 80%: 20%
- eyepiece
- High eye point, ultra-wide field of view flat field eyepiece PL10X/22mm
- objective lens
- LMPL5X /0.15 WD10.8mm
- converter
- Internal positioning five-hole converter
- mirror body
- Coarse fine-tuning coaxial, coarse-tuning per turn: 38mm, fine-tuning per turn: 0.2 mm, focusing Accuracy: 0.002mm, with elastic adjustment device
- workbench
- Size 160X250mm
- workbench
- Metal stage plate (center hole φ 12mm), mechanical moving ruler, stroke 120 (X) * 78 (Y) mm, stage extension plate
- Reflection Lighting source
- Reflection Cora illuminator with variable aperture light bar and center adjustable field of view light bar, adaptive 100V~ 240V wide Voltage, 12V50W imported halogen lamp, center adjustable, continuous adjustable luminance
- Polarizing device
- The polarizer can be swirled/spun 360 degrees, and both the polarizer and the polarizer can be moved out of the light path
- Color filter
- Green color filter, blue color filter (φ 32mm)
- Metallographic analysis system
- JX2016 metallographic analysis software, 5 million camera device, 0.5X adapter mirror interface, micrometer
Introduction

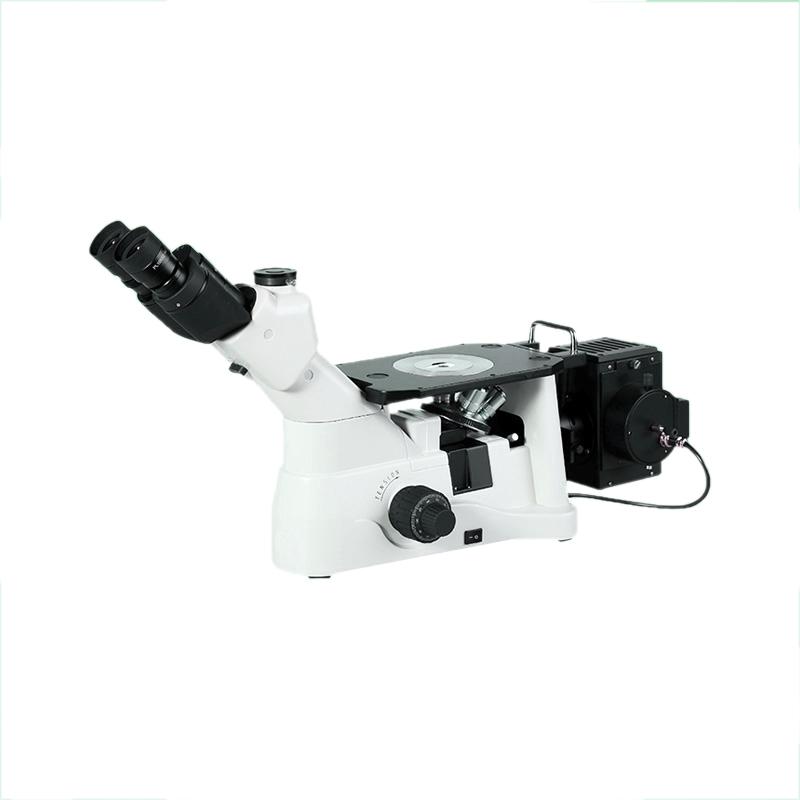

The FXD-30MW computerized metallurgical microscope is a trinocular inverted metallurgical microscope, which can provide excellent image quality and stable and reliable mechanical structure. The machine is easy to operate and has complete accessories, and is widely used in teaching and scientific research metallographic analysis and factory laboratory material testing.
Features
Observation tube
Hinged trinocular, adjustable vision, 45° inclination, photography and video, acquisition and storage of observation images, configuration of computer and professional metallographic analysis software to achieve image analysis.
Focusing mechanism
Coaxial focusing mechanism for coarse fine adjustment at low hand position, with elastic adjustment device and fast focusing random limit device, coarse adjustment stroke per revolution: 38mm, fine-tuning accuracy: 0.002mm
Stage
It can be equipped with a coaxial low-hand adjustment moving ruler and a stage extension plate to expand the application space and meet the needs of customers with different requirements.
Options
| eyepiece | High eyepoint, ultra-wide-field plan eyepiece PL10X/22mm with cross differentiation ruler |
| High eyepoint, ultra-wide field of view planar eyepiece PL10X/22mm, adjustable field of view | |
| High eyepoint, ultra-wide field of view planar eyepiece PL15X/16mm | |
| Objective (infinity long-range plan achromatic) | LMPL100X/0.80 WD2.1mm |
| Workbench plates | Metal stage plate (center hole Φ25mm) |
| Computer | HP Business Jets |
