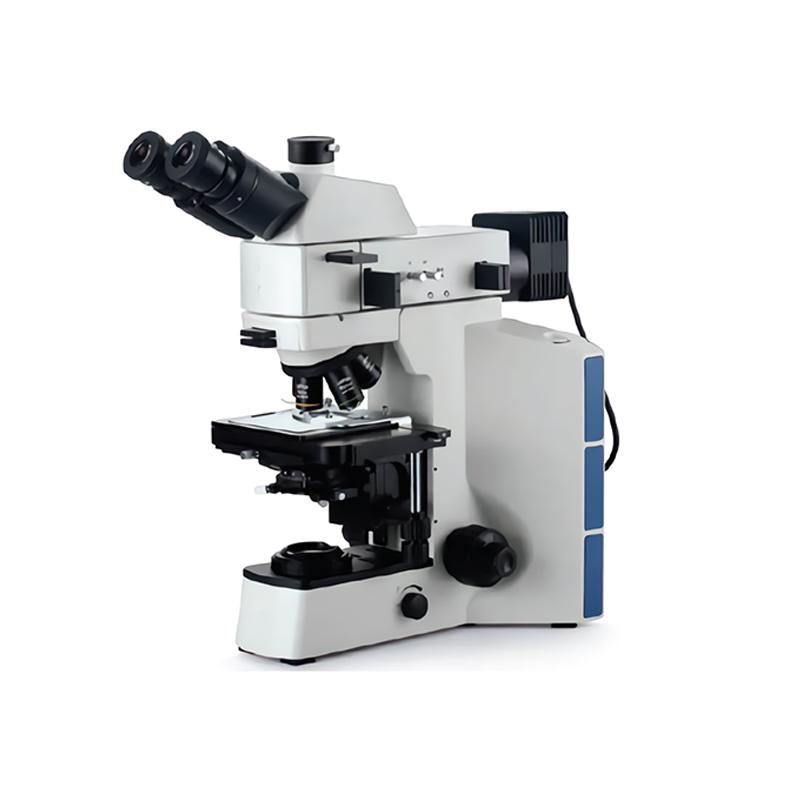

IPRE CX-40MW Computerized Metallurgical Microscopy
CX-40MW
Ipre CX-40MW Computer Metallurgical MicroscopySPEC
Ipre CX-40MW Computer Metallurgical MicroscopyDetails
Ipre CX-40MW Computer Metallurgical MicroscopyPacking list
- SKU
- NB031690
- Optical inspection system
- Optical inspection system for color difference correction
- observation head
- 30 ° tilt, infinity hinge tee observation cylinder, pupil distance adjustment: 54mm~ 75mm, visibility adjustment: +/- 5 diopters, two-speed split ratio R: T = 100:0 or 50:50
- eyepiece
- High eye point large field of view flat field eyepiece PL10X/22mm
- Infinity flat field objective
- LMPL 5X /0.15 WD10.8mm；LMPL 10X/0.30 WD12.2mm；LMPL 20X/0.45 WD4.00mm；LMPL 50X/0.55 WD7.9mm
- converter
- Internal positioning five-hole converter
- Focusing system
- Transparent dual-use frame, low-hand coarse and micro coaxial focusing mechanism, coarse adjustment stroke 28mm, fine-tuning Accuracy 0.002mm. With adjustment elastic device to prevent sliding and random upper limit device. With platform position up and down adjustment mechanism, the maximum sample height 28mm,
- stage
- Double-decked mechanical moving platform, low hand position X, Y direction coaxial adjustment; platform area 175X145mm, moving range: 76X42mm can be equipped with anti-dual-use Glass platform
- upper lighting
- Adaptive wide Voltage 100V- 240V_AC50/60Hz, reflection lamp room, single high power 5WLED, warm color, Cora lighting, with field and aperture diaphragm, center adjustable, with oblique lighting device
- Down lighting
- Adaptive wide Voltage 100V-240V_AC50/60Hz, light room, single high power 5WLED, warm color
- condenser
- Shake-out color difference condenser for transmission (N. A0.9) with variable aperture diaphragm, adjustable center
- Metallographic analysis system
- JX2016 metallographic analysis software, 3 million camera device, 0.5X adapter mirror interface, micrometer
Introduction
CX-40MW computerized metallographic microscope is a trinocular upright metallographic microscope, which has excellent imaging performance and comfortable operation experience, providing customers with cost-effective metallographic analysis and industrial testing solutions.
Features
Observation tube
The observation tube with a good comfortable angle (30°) of the neonatal bed can relieve the tension and fatigue of the user in a long-term working state and ensure a good observation state. The scale on the observation tube allows the user to adjust the interpupillary distance range by himself.
Epi-illuminators
Kola illumination system with field diaphragm, aperture diaphragm and oblique illumination, preset polarizer, analyzer and gel slots.
A single 5W LED warm white light illumination (3000-3300K) can better reduce the visual fatigue of observers compared with similar LED lighting.
The field diaphragm and aperture diaphragm adopt a pull rod device, and the center can be adjusted, which can flexibly adjust the size of the illumination range and effectively avoid the influence of stray light on the image.
Polarizers and analyzers can be used for easy polarized light observation, and you can also choose different color filters to achieve a satisfactory observation effect according to your needs.
Options
| eyepiece | High eyepoint large field of view plan eyepiece PL10X/22mm (adjustable vision, with micrometer) |
| High eyepoint large field of view planar eyepiece PL15X/16mm | |
| Achromatic objective | LMPL 100X/0.80 WD2.15mm |
| Focusing mechanism | Reflection frame, low hand coarse and micro coaxial focusing mechanism, coarse adjustment stroke 28mm, fine adjustment accuracy 0.002mm. It is equipped with an adjustment tension device to prevent slippage and a random upper limit device. With platform position up and down adjustment mechanism, the maximum sample height is 78mm, |
| Stage | Stage plate for reflection |
| Color gels | Yellow, IF550 gels, LBD gels, neutral gels |
| Computer | HP Business Jets |
