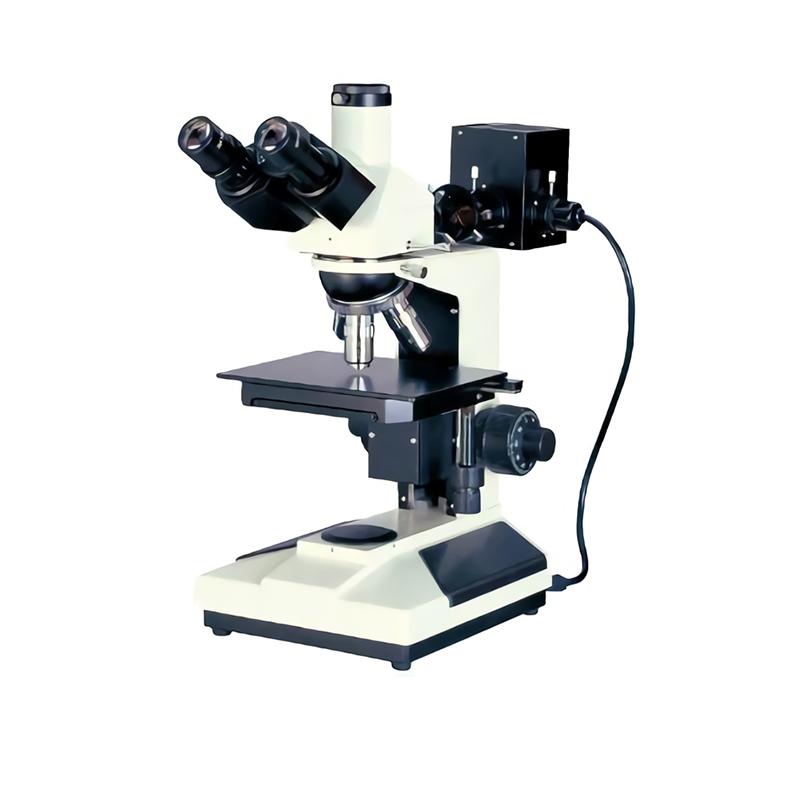

IPRE FL7000W Computerized Metallurgical Microscopy
FL7000W
Ipre FL7000W Computer Metallurgical MicroscopySPEC
Ipre FL7000W Computer Metallurgical MicroscopyDetails
Ipre FL7000W Computer Metallurgical MicroscopyPacking list
- SKU
- NB031691
- Optical inspection system
- Optical inspection system for color difference correction
- observation head
- Triple eyepiece, tilted 30 °, (built-in polarizer, switchable)
- eyepiece
- Large field of view WF10X (0019 18mm)
- Standard objective (long distance flat field color difference objective)
- PL L5X/0.12 WD15.5 mm；PL L10X/0.25 WD8.80mm；PL L40X/0.6 WD3.73 mm；PL L60X/0.75 WD1.34 mm
- converter
- Four holes (inward ball positioning)
- Focusing system
- Coarse fretting coaxial focusing, fretting grid value: 2μm, coarse elastic adjustable, with locking and limit device
- stage
- Double-decked mechanical mobile (size: 185mmX140mm, moving range: 75mmX50mm)
- lighting system
- 6V 20W, halogen lamp, luminance adjustable; emitter illuminator with field of view diaphragm, aperture diaphragm, polarizer.
- Color filter
- With Frosted Glass, Yellow, Green and Blue Color Filters
- Metallographic analysis system
- JX2016 metallographic analysis software, 3 million camera device, 0.5X adapter mirror interface, micrometer
Introduction
The FL7000W computerized metallographic microscope is a trinocular upright metallographic microscope, which is suitable for microscopic observation of opaque objects. This instrument is equipped with an epi-illuminator, a long-distance plan achromatic objective lens (without a coverslip), a large-field eyepiece and a built-in polarized light observation device, which has the characteristics of clear image, good contrast and easy operation, and is a satisfactory instrument for the research of metallurgy, mineralogy, precision engineering, electronics, etc. It is suitable for use in schools, scientific research, factories and other departments.
Features
Observation system
Trinocular observation tube, monocular degree adjustable, lens barrel 30° tilt, can be connected to the camera device.
Mechanical stage
Double-layer mechanical stage, size: 185*140mm, moving range: 75mm*50mm, moderate design concept, users are more convenient and comfortable when operating the stage.
Epi-illumination system
6V20W halogen lamp, brightness adjustable. Built-in field diaphragm, (yellow, green, blue, frosted glass) filter converter, push-pull polarizer
Options
| eyepiece | Large field of view WF10X (Φ18mm) differentiation eyepiece |
| Large field of view WF16X(Φ11mm) | |
| Optional objective (long-range plan achromatic objective) | PL L 20X/0.40 WD8.6mm |
| PL L 50X/0.70 WD2.02mm | |
| PL L 80X/0.80 WD0.96mm | |
| PL L 100X/0.85 WD0.4mm | |
| Computer | HP Business Jets |
