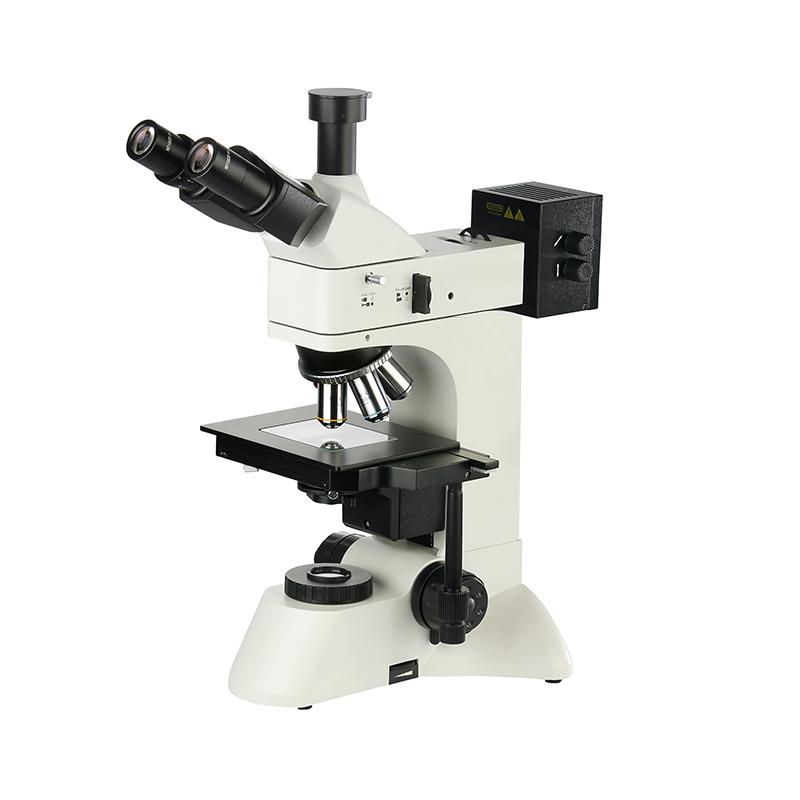

IPRE FL8000W Computerized Metallurgical Microscopy
FL8000W
Ipre FL8000W Computer Metallurgical MicroscopySPEC
Ipre FL8000W Computer Metallurgical MicroscopyDetails
Ipre FL8000W Computer Metallurgical MicroscopyPacking list
- SKU
- NB031693
- Optical inspection system
- Optical inspection system for color difference correction
- observation head
- Triple eyepiece, tilted 30 °, (built-in polarizer, switchable)
- eyepiece
- Large field of view WF10X/22mm
- Standard objective (infinite flat-field color difference objective)
- PL L5X/0.12 WD26.1mm；PL L10X/0.25 WD20.2mm；PL L40X/0.60 WD3.98mm；PL L60X/0.7 WD3.18mm
- converter
- Five holes (inward ball positioning)
- Focusing system
- Coarse fretting coaxial focusing, fretting grid value: 2μm, coarse elastic adjustable, with locking and limit device
- stage
- Double-decked mechanical mobile stage, Dimension: 210mmX140mm, Movement range: 63 * 50mm
- emitter illumination system
- 6V30W halogen lamp, adjustable luminance, equipped with yellow, blue, green color filters and frosted Glass; built-in field of view light bar, aperture light bar, color filter conversion device, push-pull polarizer and polarizer
- Transmissive Illumination Light source
- Abbe condenser NA.1.25 can be lifted up and down; built-in field of view light bar in the collector, 6V30W halogen lamp, adjustable luminance
- Metallographic analysis system
- JX2016 metallographic analysis software, 3 million camera device, 0.5X adapter mirror interface, micrometer
Introduction
The FL8000W computerized metallurgical microscope is a trinocular transflective upright metallurgical microscope, which is suitable for microscopic observation of opaque objects or transparent objects. Adopting excellent infinity optical system and module function design concept, it can provide good optical performance and product system upgrade, realize the functions of transflection synchronous independent illumination, polarized light observation, etc., the product has the characteristics of beautiful appearance, easy operation, clear image, etc., and is a satisfactory instrument for biology, metallurgy, mineralogy, precision engineering, electronics and other research.
Features
Mechanical stage
Double-layer mechanical stage, size: 210*140mm, moving range 63*50mm, the design concept of visibility, users are more convenient and comfortable when operating the stage.
Epi-illumination system
The halogen lamp (brightness adjustable) provides clear and vivid microscopic observation images not only for the usual brightfield observation method, but also for polarized light and darkfield observation methods. The built-in field diaphragm and aperture diaphragm can effectively control the field of view, adjust the field of view contrast, and the center of the field diaphragm can be adjusted.
Transmitted illumination system
Built-in halogen illumination: 6V30W halogen lamp (brightness adjustable) provides clear and vivid microscopic observation images. The collector has a built-in field diaphragm, Abbe condenser N.A.1.25, which can be adjusted up and down.
Options
| eyepiece | Large field of view WF10X/22mm with cross differentiation ruler |
| Optional objective (infinity plan achromatic objective) | PL L20X/0.40 WD8.80 mm |
| PL L50X/0.70 WD3.68 mm | |
| PL L 80X/0.80 WD1.25 mm | |
| PL L100X/0.85 WD0.40 mm | |
| Computer | HP Business Jets |
