PRSR300 Roughness Gauge

SE
Zhongke Purui PRSR300 Roughness Gauge adopts Bluetooth 4.0 wireless communication technology, super low power consumption, PRSR300 Roughness Gauge measuring range Ra: 0.025-12.5um, error of indication ≤ ± 10%, wireless communication distance 10 meters.
$1283.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

Ipre PRSR300 Roughness GaugeSPEC

Ipre PRSR300 Roughness GaugeDetails

Ipre PRSR300 Roughness GaugePacking list

SKU
NB031706
Measuring range
Ra: 0.025-12.5um
Display range
Ra 、 Rq: 0.005-16um; Rz 、 Ry 、 Rt 、 Rp 、 Rv 、 Rmax 、 R3z 、 R3y: 0.02-160um; Rs 、 Rsm 、 Rpk 、 Rvk: 1mm; Rmr: O-100% (% Rt); Rsk 、 Rku 、 Rpc 、 Mr1 、 Mr2: O-100%
range
±20um、±40um、±80um
Highest display resolution
0.001um
filter
RCGAuSSPC-RCD-P
Sampling length
0.25mm,0.8mm,2.5mm
Evaluation length L
(1-5) l (optional) I is the sampling length
Maximum drive stroke
17.5mm/0.7inch
Minimum drive stroke length
1.3mm/0.052inch
Error of indication
≤±10%
Indication of variability
≤6%
Wireless communication distance
10 meters
Instrument size
135mmX45mmX42mm
File output method
Excel，word
Power Supply
lithium battery
PRSR300
Roughness Gauge

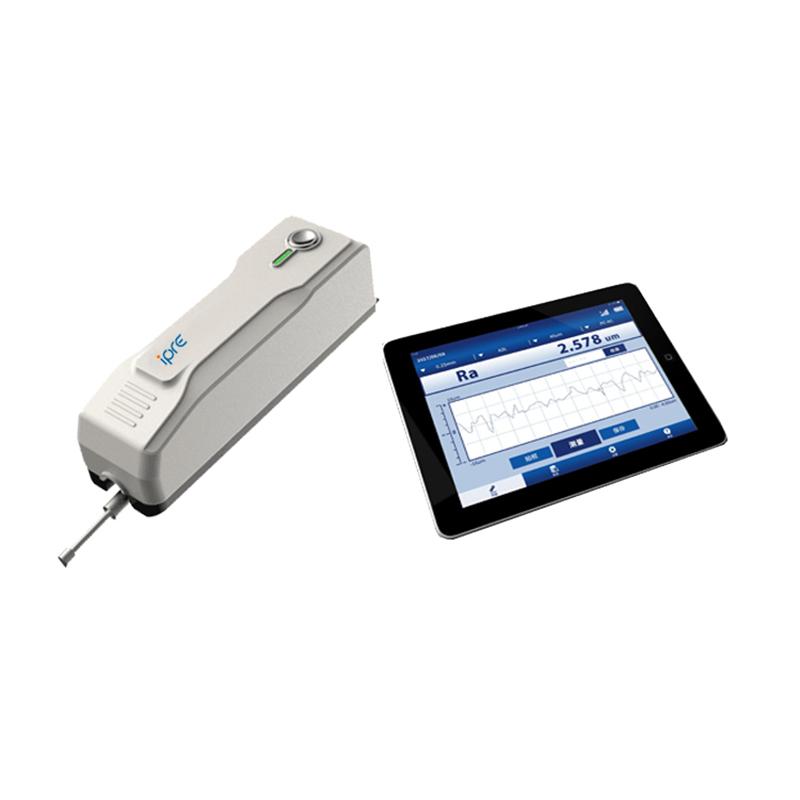

PRSR300 Roughness Gauge Picture

Features

  • The instrument is composed of a control system and a drive system, and the control system and drive system adopt a split design

  • Hostless design, the instrument is completely controlled by the tablet without a host

  • Data remote upload, with data online analysis function

control system

  • Using Bluetooth 4.0 wireless communication technology, super low power consumption, small capacity battery can work for a long time.

  • Measurement parameters, measurement results, measurement waveforms, contour graphics, and statistical analysis are all clear at a glance.

  • Take photos to record the on-site measurement conditions.

  • One-button measurement, data results are automatically transmitted and statistically displayed, the measured waveform can be zoomed in and out, and special positions can be displayed separately by clicking.

  • Instrument bluetooth signal, instrument battery status display.

  • Measurement result deletion function, data retrieval by time, single measurement result export word report, multiple measurement result table statistical export function, etc., complete data editing and statistical functions.

  • User-friendly calibration function.

  • Stroke, range, measurement standard, unit and other functions touch screen conversion.

  • Provide video assistance, according to the actual needs of customers, suggest industry measurement methods and Operating Conditions, and update data on the cloud.

acquisition unit

  • Only the power start button, no other complicated buttons.

  • Support lithium battery charging.

  • It supports other auxiliary measurement and clamping devices such as magnetic table base and mechanical arm.

  • Compatible with standard sensors, small hole sensors, groove sensors, deep groove sensors.

  • The compact instrument body is suitable for more measurement conditions.


FAQ
QDoes the IPRE Roughness Gauge meet the QB/T2693 standard?
A The PRSR300 Roughness Gauge can be referred to
