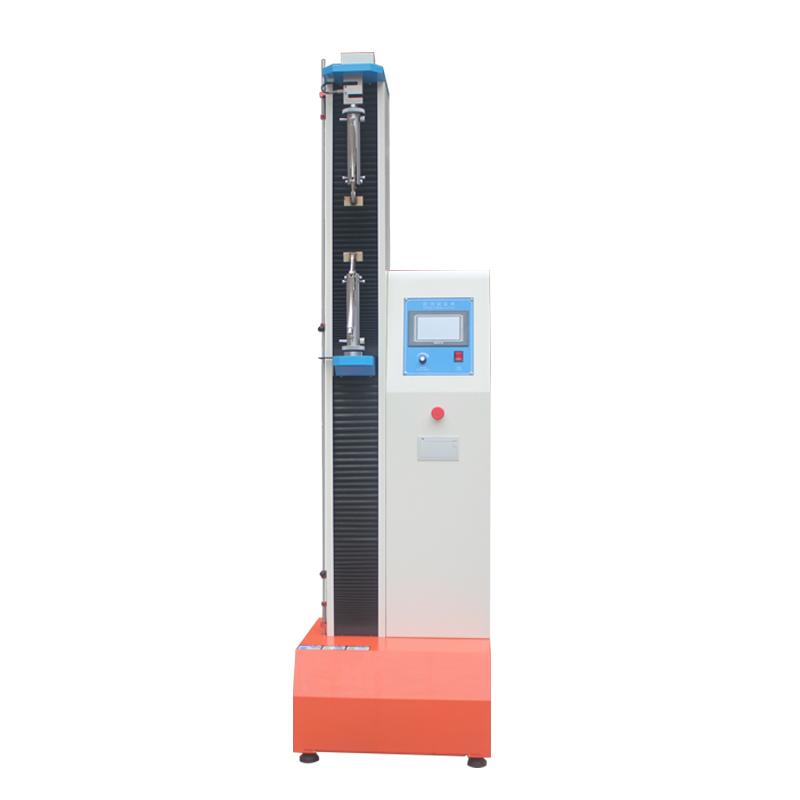

CHINA ASR-1021-2 Touch screen single column Tensile Strength Tester 500KG
CHINA ASR-1021-2 Tensile Strength Tester has a force measurement range of 500KG, is a touch screen single column Tensile Tester, Measurement accuracy is +/- 1%, ASR-1021-2 has three different force measurement units, Test space is 120mm.
Model：
ASR-1021-2(500KG)
AISRY ASR-1021-2(500KG) Tensile Strength TesterSPEC
AISRY ASR-1021-2(500KG) Tensile Strength TesterDetails
AISRY ASR-1021-2(500KG) Tensile Strength TesterPacking list
- SKU
- NB032264
- Capacity selection
- 500kg
- Force Precision
- <±0.5％
- monitor
- Touch screen (with printing)
- Force unit
- Kg、lb、N
- Frequency of data sampling
- 200times/sec
- force resolution
- The maximum load is 1/+/- 25,000 yards, the inside and outside are not divided, and the whole process resolution remains unchanged
- Load Sensors
- Basic Configuration: Pull and Pressure Sensors (Maximum Load)
- Effective test width
- 150mm
- Efficient stretching of space
- 1200Mm (850mm with powerful pliers)
- Test speed range
- 100~500mm/min
- Displacement error of indication
- ±0.5％
- breakpoint ratio setting
- 0~99%, users can set the appropriate break downtime according to different materials
- Test bench Safety Devices
- Up and down stroke limiting device
- Overload protection
- Exceeding the maximum load by 10%, the machine is automatically protected
- Fixture configuration
- A set of stretching fixtures
- Dimensions
- 550*400*1820mm
- Host Weight
- About 100Kg
- Power supply Voltage
- 220V/50Hz
ASR-1021-2(500KG)
Tensile Strength Tester
Introduction
It is used for the mechanical properties test of rubber, plastics, wires and cables, textiles, waterproof materials, non-woven fabrics and other non-metallic materials and metal wires, metal foils, metal plates and metal rods.
The results of 10 test reference points can be stored, their average values can be automatically calculated, and the maximum value and force value at break can be automatically captured.
The machine includes a thermal printer, which can be automatically outputTestOutcome. (Optional)
This machine has simple structure and easy operation, and can be directly placed on the studio floor for testing. It is especially suitable for testing instruments used in the production line to control product quality.
