TQC SHEEN LD0800 dual-use Coating Thickness Gauge Fe/NFe

SE
TQC SHEEN dual-use Coating Thickness Gauge LD0800 is Fe/NFe bifunctional Film Thickness Gauge with built-in probe type. The thickness measurement range of LD0800 Coating Thickness Gauge is 0~1300 μm, and the accuracy is +/- 3%.
Model：
Certificate
Contact
Details SPEC
Similar products

TQC sheen LD0800 Coating Thickness GaugeSPEC

TQC sheen LD0800 Coating Thickness GaugeDetails

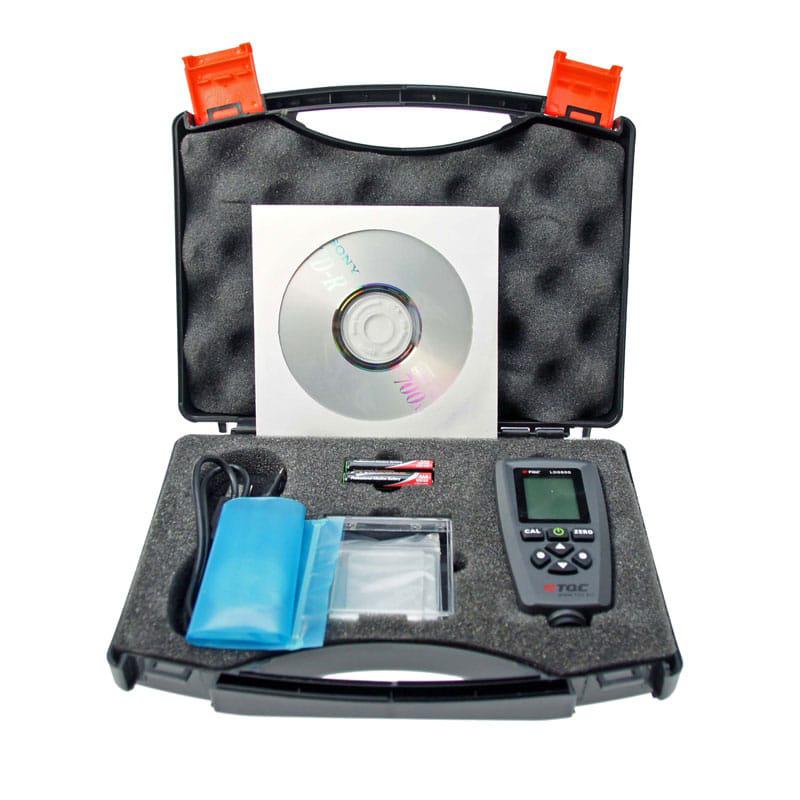

TQC sheen LD0800 Coating Thickness GaugePacking list

SKU
NB032297
Measurement principle
Magnetic Induction + eddy Current
Measurement range
0~1300μm
margin of error
±3%
Resolution
1μm|0.01mm
Minimum measurement surface
Φ6mm
Minimum radius of curvature
Convex 1.5mm; Concave 25mm
thinnest substrate
0.5mm(F)；0.3mm(N)
Test environment
Both magnetic and nonmagnetic substrates
probe

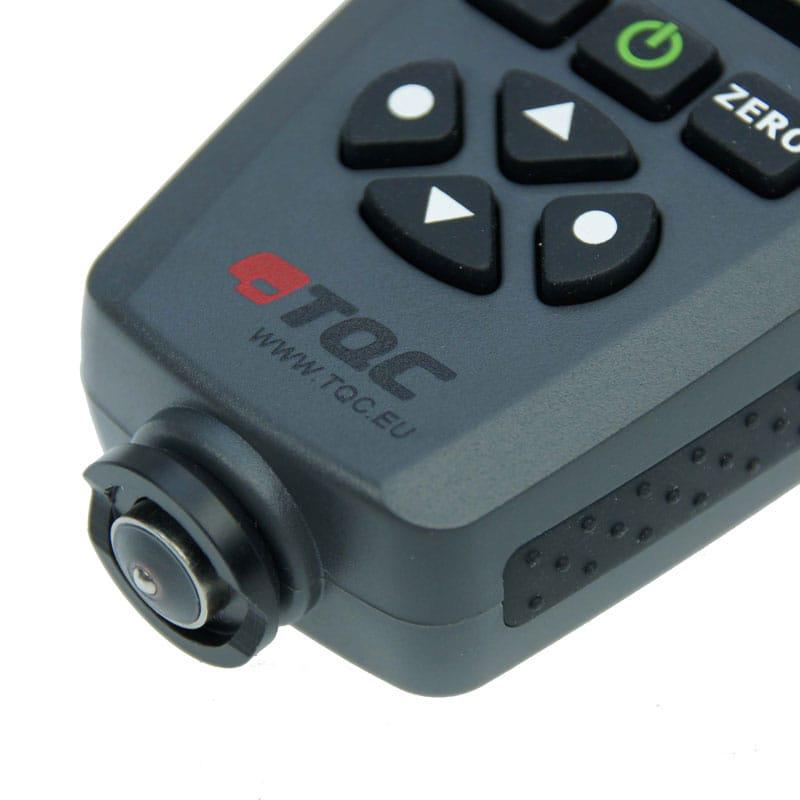

Built-in probe
Calibrated mode
Zero and multi-point calibrated (up to 4 points)
Measurement mode
Single and continuous
Unit display
um,mm aremils
statistical function
Average, MIN Minimum, MAX Maximum and standard deviation
Interface
USB port
Power Supply
2 1.5V AAA batteries
Standards
ISO 2808
system language
Chinese, English
Display screen
128 * 128 dot matrix LCD display
Operating temperature
0~40℃
Relative Humidity
20~90%RH
Machine Weight
92g
Machine size
110*53*24mm
alert
High/low alarm, an alarm icon will be displayed on the LCD when the limit is exceeded
LD0800
Coating Thickness Gauge

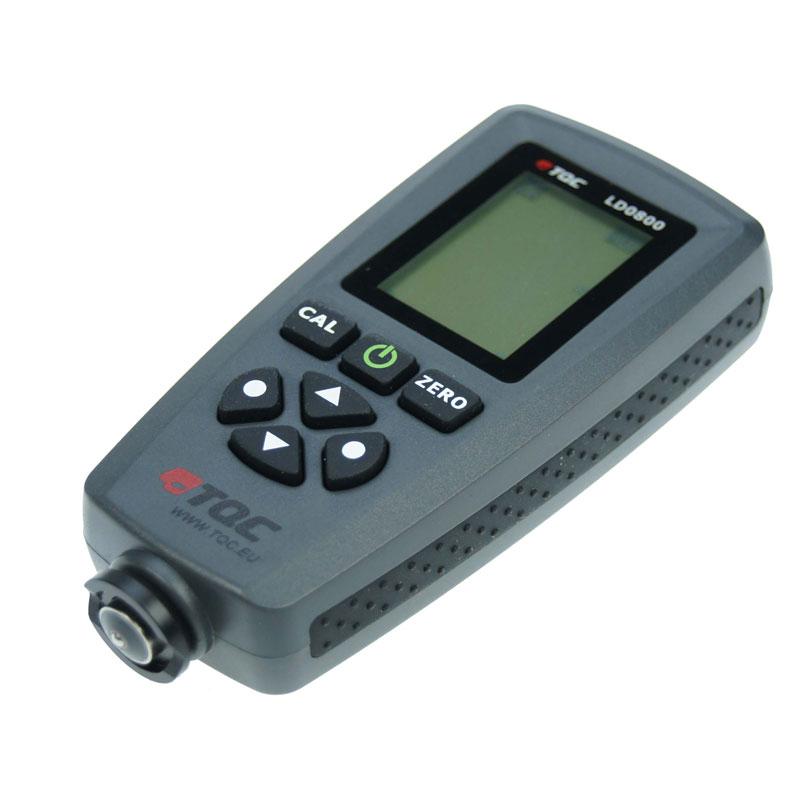

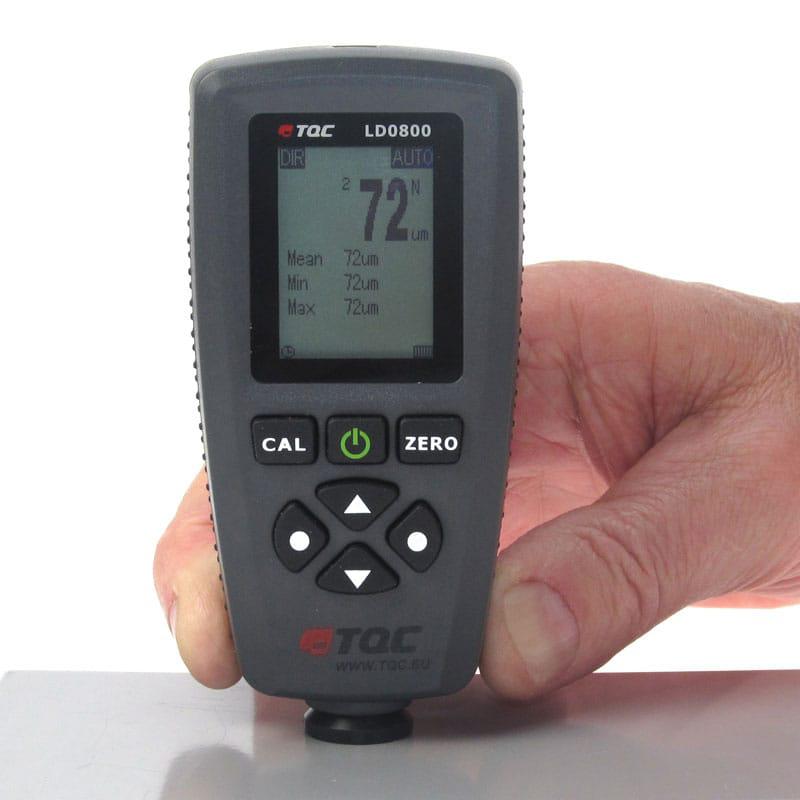

TQC SHEEN LD0800 dual-use Coating Thickness Gauge Fe/NFe Picture

Introduction

This convenient, durable, and easy-to-use TQC coating Thickness Gauge is ideal for measurement tasks in a variety of industries and paint applications. This compact gauge can measure the thickness of painted objects or other corrosion-resistant layers with accuracy in both Fe (iron or steel) and NFe (aluminum, copper, brass or non-magnetic steel).

Product Features

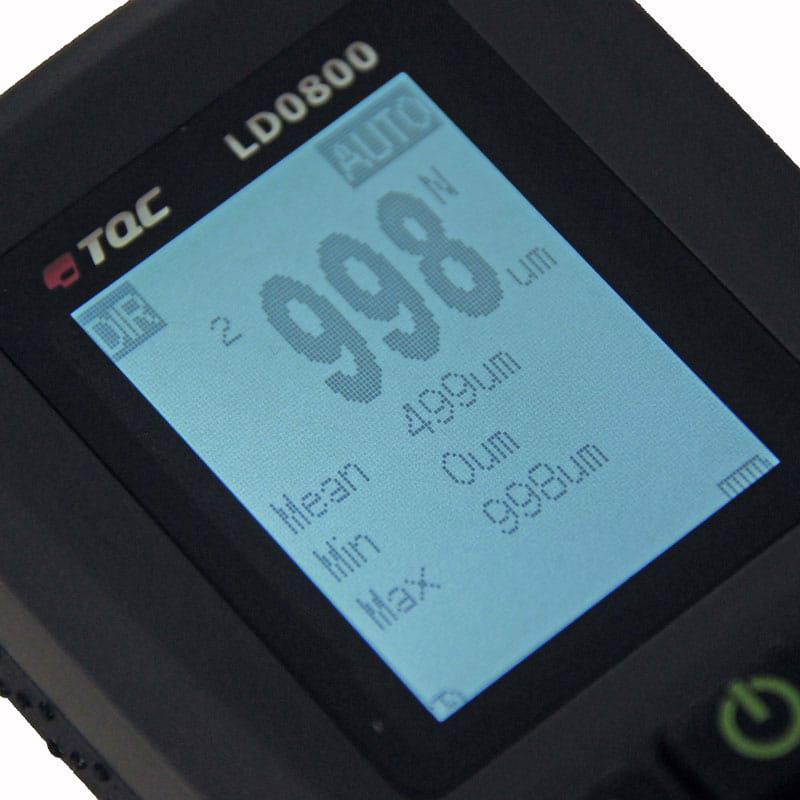

  • 128*128 dot matrix LCD display, standard menu operation.

  • Two measurement modes: single and continuous.

  • Two sets of modes: direct (DIR) and regular (GEN), readings are lost when powered off in direct mode, but not in regular mode. Each group can store 80 readings.

  • Zero calibration and multi-point calibration (up to 4 points) per set.

  • The user can call, delete the specified reading, or delete a group reading.

  • Statistics display: mean, minimum, maximum and standard deviation.

  • Three detection modes: automatic, magnetic and eddy current.

  • Users can set upper or lower limit alerts for each group.

  • Automatic power off.

  • USB interface for data transfer.

  • Low battery and error indication.

Meets standards

ISO 2808
