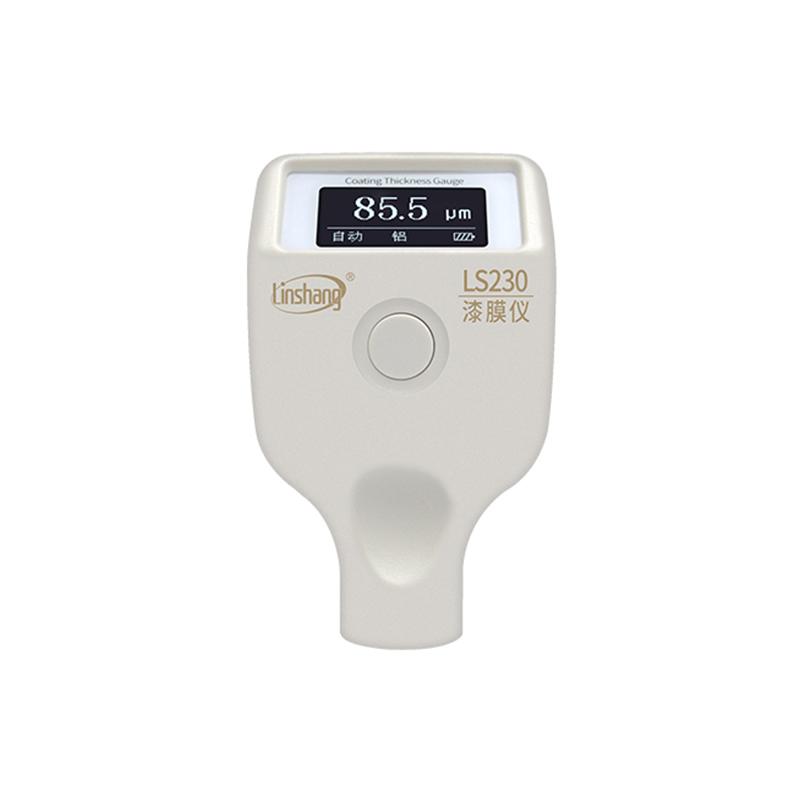

LINSHANG LS230 Film Thickness Gauge OLED single screen, low temperature resistance

LS230

Paint film instrument

It can measure the thickness in a low temperature environment at minus 40 ℃, the thickness measurement range is 0.0-2000 μm, the built-in integrated dual-function probe has an error range of +/- 3%, and has the function of temperature compensation and digitalization of analog signal terminals.

Introduction

Linshang LS230 paint film instrument is professionally used for second-hand car paint film thickness detection. It is a low-temperature resistant paint film instrument, which adopts a low-temperature resistant OLED LCD screen display, and can be used normally in a low temperature environment of minus 40 °C. LS230 automotive paint film meter adopts two measurement principles: Hall effect and eddy current, which can quickly measure the thickness of paint film on metal substrates such as steel plate and aluminum alloy, and automatically switch the measurement mode.

As an upgraded version of the LS220 paint Thickness Gauge on the forest, the LS230 paint film meter can help many northern customers solve the problem of not being able to use the paint film meter to measure second-hand cars normally when the temperature is below zero in winter. Because the general paint Thickness Gauge uses LCD screen display, it will fail when used at dozens of degrees below zero, and the data cannot be displayed normally. The following is the test video of the LS230 paint film thickness Tester in a low temperature environment.

Features

1. The measurement is fast, and one measurement can be completed in 0.5 seconds.

2. The automotive paint film instrument LS230 adopts low-temperature resistant OLED liquid crystal display, which can ensure normal use in a low-temperature environment of -40°C.

3. The paint film thickness Detector has only one button, and the operation is very simple.

4. There is no need to calibrate after powering on, just use the equipped standard board to zero up.

5. The probe part is made of high-hardness and wear-resistant ruby, which can ensure the long-term use of the instrument.

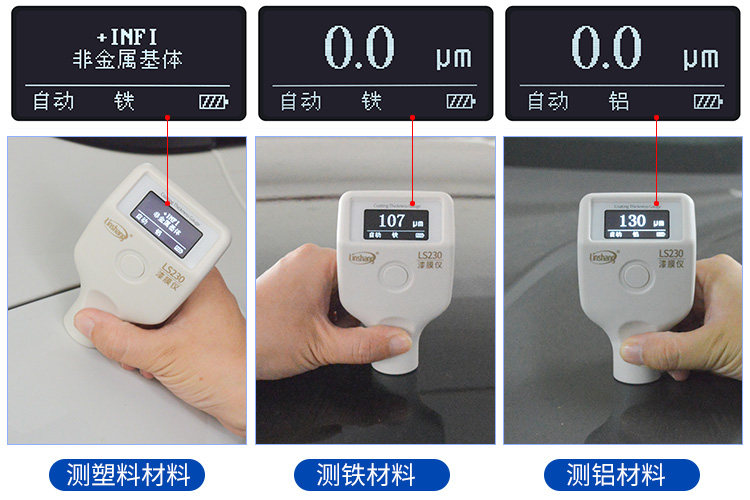

6. The dual-purpose probe of iron and aluminum can automatically identify the automobile substrate made of steel plate, aluminum alloy and other materials, and automatically convert the measurement mode.

7. Paint film thickness Tester LS230 has "Fe", "NFe", "Fe/NFe" three measurement modes, Chinese and English two languages and μm and mil two units adjustable.

8. It has the function of temperature compensation and the digitization function of the analog signal end to ensure the stability of the sensor signal of the paint Thickness Gauge.

9. Ultra-low power consumption, and with the function of automatic shutdown without operation for 3 minutes, there is no need to replace the battery frequently during use, which is effective and energy-saving.

Packing list：Paint film instrument X1, Fe zero adjustment plate X1, NFe zero adjustment plate X1, standard sheet X1, manual X1, quality assurance card X1, certificate X1, cloth Encasement bag X1, 1.5V AAA alkaline battery X2

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
