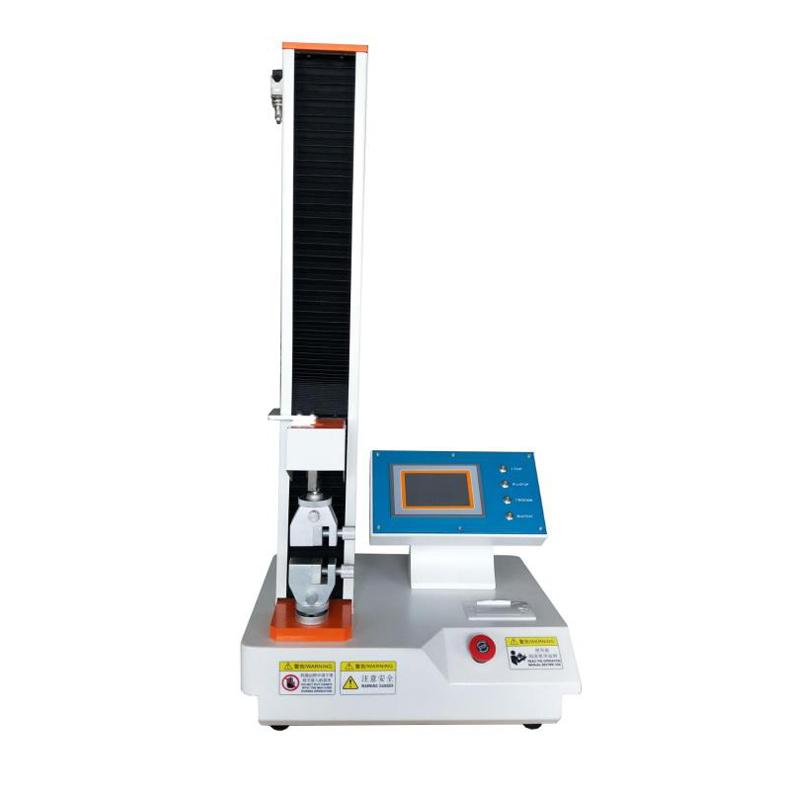

Essence JH - WN-LL Universal Rally Machine, Touch Screen Version 100N

JH-WN-LL (100N)

Universal Testing Machine (UTM)

Introduction:

It is widely used in the determination of tensile strength, elongation and tensile energy absorption of paper, cardboard and other non-metallic materials. It can measure paper tensile strength, tensile strength, elongation, breaking length, tensile energy absorption, tensile index, and tensile energy absorption index. Measuring paper tensile strength, tensile strength, elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, especially capable of sensing small values, uniquely measuring the corresponding parameters of toilet paper (including wet strength value).

Applications:

• Measure the tensile strength, tensile strength, peel strength and elongation of aluminum foil and aluminum-plastic tape.

• Measure the tensile strength, elongation and tensile modulus of plastic film.

• Measure the heat seal strength, tensile strength and peel strength of food bags.

• Measure the adhesive strength, edge strength, tensile strength and elongation of sanitary napkins.

• Measure the peel strength and tensile strength of pressure sensitive adhesive tape.

• Measure the breaking strength and elongation of synthetic fiber filaments.

• Measure the lightness of the zipper.

Executive standard:

GB/T 12914-1991 "Determination of Tensile Strength of Paper and Cardboard (Constant Speed Tensile Method)" requires design. At the same time refer to GB 13022-91, GB/T1040-92, GB2792-81, GB/T 14344-9, GB/T 2191-95, QB/T 2171-95 and other national and industry standards

Features

• The transmission mechanism adopts ball bearings, the transmission is stable and accurate; the imported motor is adopted, with low noise and precise control

• Large-screen LCD display, Chinese menu. During the test, real-time display of stretching time, load tension, etc.; the new software has the function of real-time display of tensile curve; the instrument has powerful data display, analysis and management capabilities.

• It adopts a modular integrated printer, which is easy to install and has low failure rate; thermal printer and dot matrix printer are optional.

• Within the measurement range of 0-30N, the accuracy can reach 0.01N, the resolution is 0.01N, and it is specially used for toilet paper.

• Get the measurement results directly: After completing a set of experiments, it is convenient to directly display the measurement results and print statistical reports, including the average value, standard deviation and coefficient of variation.

• High degree of automation: The design of the instrument selects professional devices at home and abroad, and the single-chip microcomputer performs information sensing, data processing and action control. It has the characteristics of automatic reset, data memory, overload protection and fault self-diagnosis.

• Multi-functional, flexible configuration: the instrument is mainly used for paper measurement, changing the configuration of the instrument can be widely used in the measurement of other materials.

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
