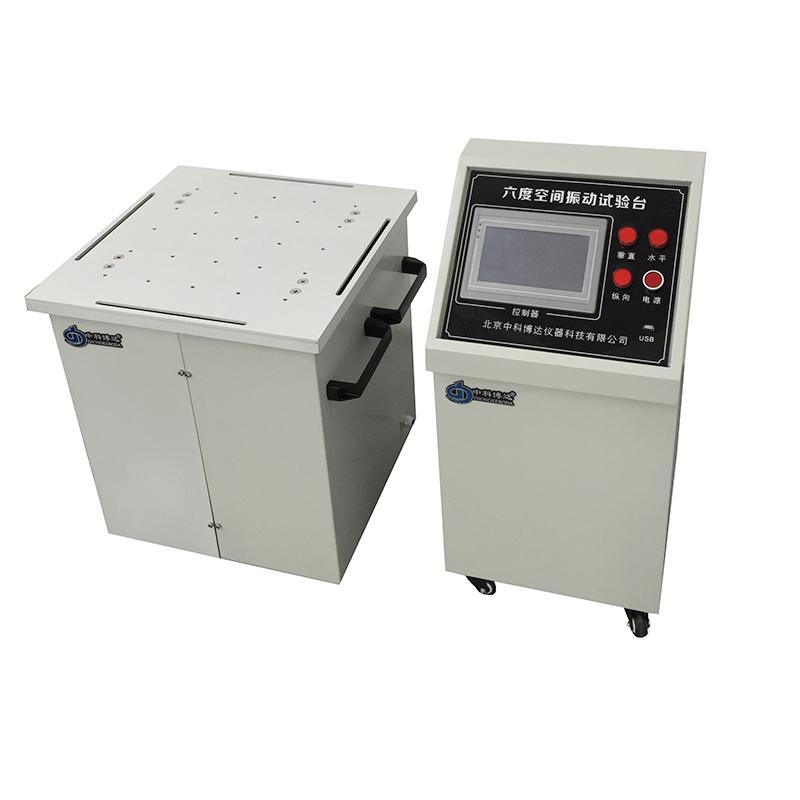

ZHONGKEBODA BD/LD-ATP four-dimensional space vibration test bench
BD/LD-ATP
zhongkeboda BD/LD-ATP Four-dimensional vibration test benchSPEC
zhongkeboda BD/LD-ATP Four-dimensional vibration test benchDetails
zhongkeboda BD/LD-ATP Four-dimensional vibration test benchPacking list
- SKU
- NB032449
- function
- Any two-axis simultaneous action, two-axis continuous action, random action (bandwidth can be set), sine wave (half-wave/full-wave), frequency modulation, frequency sweep
- Platform size
- 500*500mm
- Table size
- 500 × 500 × 450 automatic four-dimensional space all-in-one machine Shaker Table (up, down, left and right) (work on the same Countertop)
- Vibration function (type)
- ① Vertical ② Horizontal ③ Continuous action (vertical → horizontal or horizontal → vertical) ④ Random vibration (bandwidth can be set) ⑤ Vertical + horizontal (simultaneous vibration) ④ Sine wave (half wave/full wave)
- FM function (arbitrarily adjust 1~ 600HZ)
- Frequency range Any Frequency cannot exceed 1 of the following 2 items (Maximum Acceleration < 20g and Maximum amplitude < 5mm)
- Sweep function (adjust 1~ 600HZ arbitrarily)
- (Upper Frequency/Lower Frequency/Timer Range) Can be arbitrarily set to true standard back and forth frequency sweep
- Programmable function (adjust 1~ 600HZ arbitrarily)
- 1~ 15 segments, each segment can be set arbitrarily (Frequency/time) can be cycled
- Frequency doubling function (adjust 1~ 600HZ arbitrarily)
- 1 to 15 segments multiply ① low to high frequency ② high to low frequency ③ low to high and then to low frequency/recyclable
- Logarithmic function/arbitrary adjustment 1~ 600HZ
- ① down to the upper frequency ② up to the lower frequency ③ down to the upper frequency and then to the lower frequency --3 modes logarithmic/recyclable
- sine wave
- (Half wave/full wave)/Maximum sine wave excitation force 2000kgf
- Precision
- Display to 0.01Hz, precision 0.1Hz
- Maximum test Weight
- 100kg
- Amplitude
- 0~5mm
- time control
- Any time can be set (in seconds)
- Power supply Voltage
- 220V±20%
- Maximum current
- 10A
- Vibrator Power
- 2.2KW
- Cooling mode
- Natural air-cooled
- Humidity range and noise
- Temperature -10 ℃~ + 60 ℃/Humidity 10%~ 95%/Range/Noise 60 dB or less
First, the use of the product
Because any product will collide and vibrate during transportation, use, storage, etc., so that the product will be defective in a certain period of time, seriously affecting the use of the product and unnecessary economic losses, in order to avoid the occurrence of this situation, we must know the vibration resistance life of the product or the components in the product in advance.
Second, the role of the vibration testing machine
1. The strength of the structure
2. Loosening of binders
3. Protect the wear and tear of the material
4. Breakage of parts
5. Poor contact of electronic components
6. Circuit short circuit and intermittent instability
7. The standard value of each part is offset
8. Screen the defective parts in advance
9. Find the resonance relationship between parts, structure, packaging and transportation process
3. Advantages of using vibration testing machines
a. When designing, the damage point and the defective point can be analyzed
b. In terms of quality, the differences and defects produced by each batch of products can be analyzed
c. During production, it can be completely vibrated and measured at the same time, so that the defective rate of the product can be detected early.
d. Durability measurement, so that the product is durable and the non-durable components can be improved in advance, and the company's brand reputation will be better.
Fourth, product features
1. The automatic four-dimensional space all-in-one machine vibrating table BD/LD-ATP (up and down, left and right) (working on the same table) adopts a 7.0-inch PLC color touch screen controller, which is simple and easy to understand.
2. Display amplitude acceleration (optional): If you need to see the amplitude, acceleration, maximum acceleration, and accurate figures, you need to purchase a measuring instrument separately;
(1) LD-T1 amplitude 0~2mm, acceleration 0~199.9m/s2
(2) LD-T3 amplitude 0~10mm/acceleration 0~100m/s2
However, it can only measure a single group of frequencies, and the swept frequency/programmable/frequency doubling/logarithm can only be measured by a vibration analysis system
