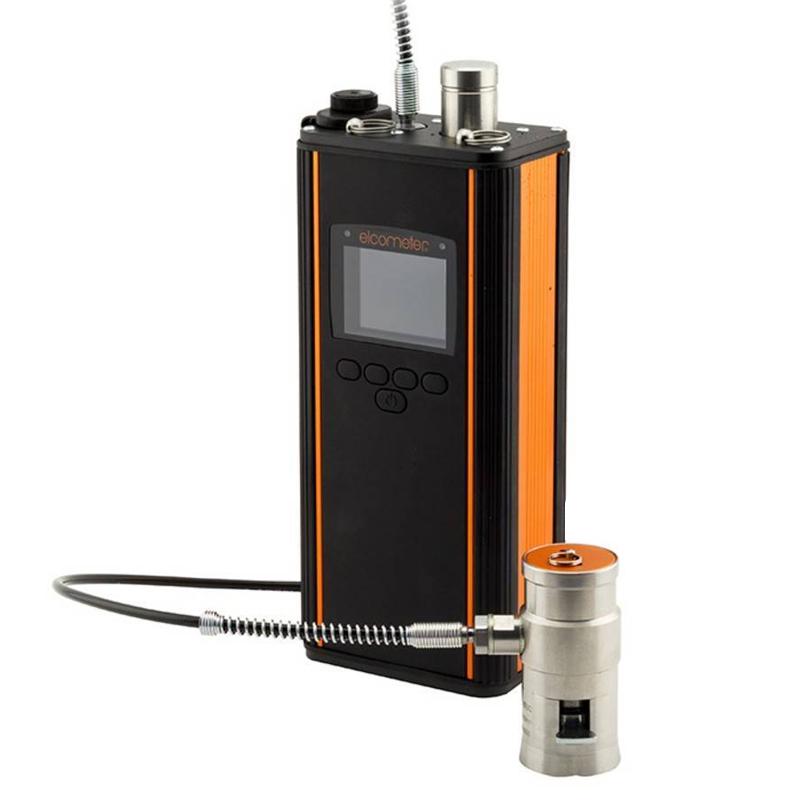

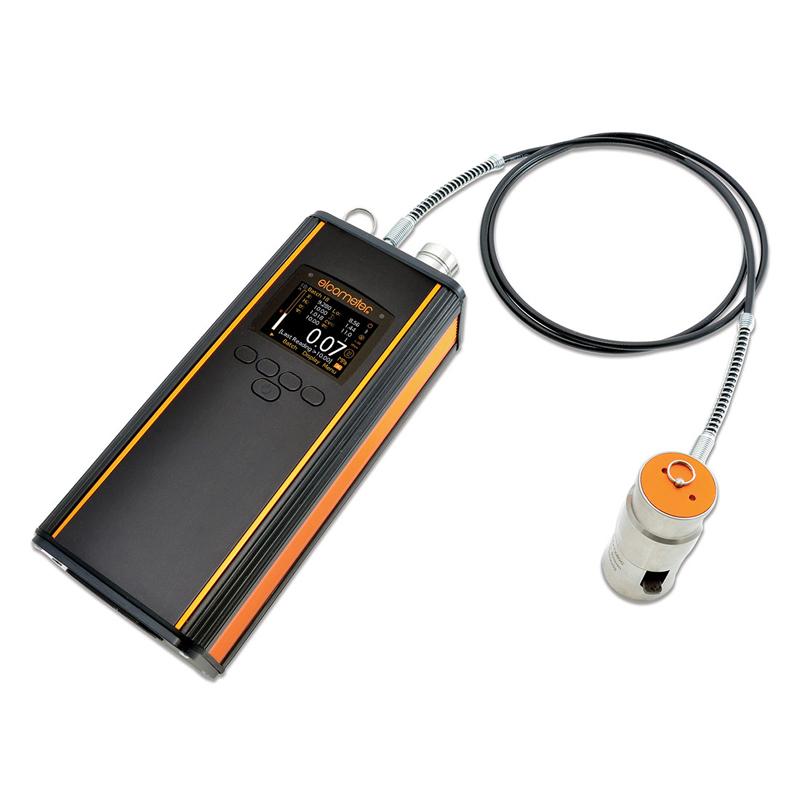

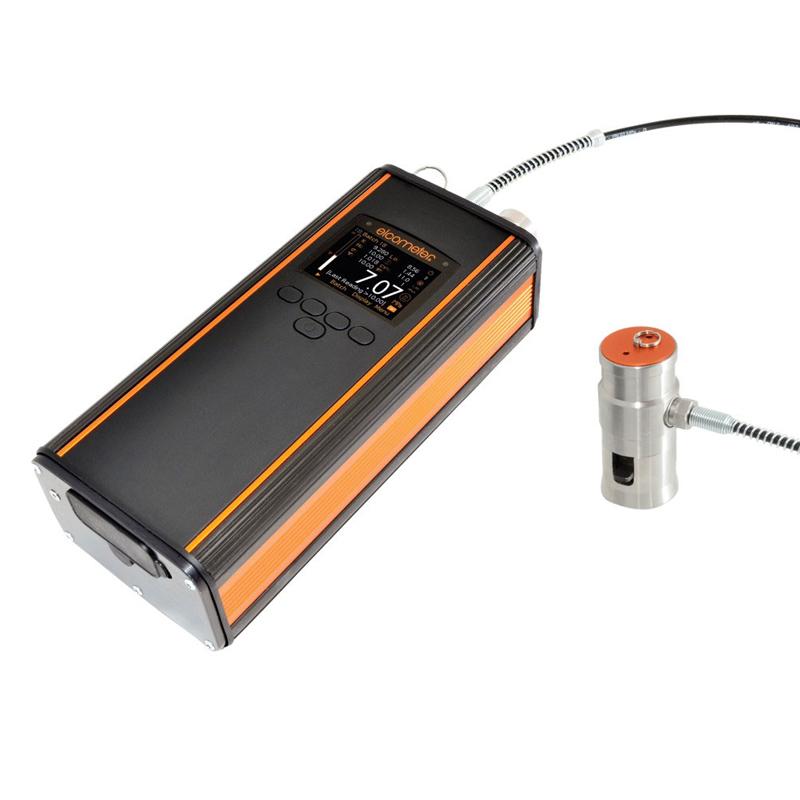

ELCOMETER F510-50S Automatic Adhesion Tester Standard type

F510-50S

Automatic Adhesion Tester

Introduction

The Elcometer 510 Automatic Pull-Off Adhesion Tester accurately measures the adhesion between the coating and the substrate.

Features

• Handheld design, waterproof and durable, equivalent to IP64 design

• A fully automatic hydraulic oil pump ensures smooth and continuous pressure application to provide consistent, repeatable results

• Fully adjustable tensile rate 0.1-1.4MPa/sec (15-203psi) to meet national and international levels

• User-definable measurement range and scale with an accuracy of ±1%:

        10mm Forging Die : 100MPa/14400psi

        14.2mm Forging Die : 50MPa/7200psi

        20mm Forging Die : 25MPa / 3600psi

        50mm Forging Die : 4MPa / 580psi

• User-definable limits with unique pressure hold and release features

• The Advanced (T-type) stores up to 60,000 readings with individual pulls, up to 2,500 alphanumeric batches, and complete fault information with attributes

• Intuitive and easy-to-use menu structure, multi-Chinese

• 10, 14.2, 20 and 50mm diameter dolly options

Meets standards

ASTM C1583, ASTM D4541,ASTM D7234-12, AS/NZS 1580.408.5,BS 1881-207, DIN 1048-2,EN 1015-12, EN 12636, EN 13144,EN 1542, EN 24624, ISO 16276-1,ISO 4624, JIS K 5600 5-7, NF T30-606,NF T30-062

Characteristics:

Powerful

• Suitable for metal, wood, concrete and other substrates

• Smoothly applied loads up to 100MPa (14400psi)

• USB and Bluetooth® data output to iOS or Android devices

• The advanced (T-type) can store 60,000 data in 2,500 groups

effective

• Ideal for both laboratory and field use

• 10, 14.2, 20 and 50mm (0.39, 0.56, 0.761.96") diameter reusable dollies

• Compatible with ElcoMaster® and ElcoMaster® mobile apps

• Measure on small, curved or flat surfaces

durable

• Sealed, heavy-duty, impact-resistant

• Dustproof and waterproof rating, equivalent to IP64

• Suitable for extreme environments

Accurate readings

• Measuring range up to 100MPa (14400 psi) with accuracy of ±1% of all scale ranges

• It can be used in accordance with a number of national and international standards

Features

Automatic adhesion Tester with optional pullingRate 10, 14.2, 20&50mm diameter forgingModel.	View the trend chart or the reading value statistics next to itData.	Individual user-definable pull-out charts can be guaranteedSave each reading.
Store individual readings and pull-rate plots in up to 2500 alphanumeric batches, along with date, time and attribute information.	Either pull to maximum or pull to preset limit. The unique Time Hold feature allows the user to set a delay before the pressure returns to zero.	Adhesion pull data in accordance with national and international standards are saved together with the adhesion shedding/cohesion shedding properties.

Other features:

By standard rechargeable battery or AC power supplypower, each rechargeable battery performs up to 200Pull. Battery charging time < 300 minutes	Transfer data via USB or Bluetooth®Your computer is carried out with the ElcoMaster® softwareFurther analysis or check in ElcoMaster®Look at the pull-out rate chart for the field test.	Use a wireless Bluetooth ® communication link Testerto an Android or iPhone phonedevice, GPS coordinates from your mobile deviceCan be added to the report and emailedSend it instantly.
A range of standard and thin substrate brake skirtsAllows instruments with 10, 14.2, 20 or reweightableUse a 50mm diameter forging die, nonOften suitable for thick, thin, flat or convex substratesTest coatings.	Optional magnetic anchor clamps ensure that the actuator is in the testVertical surfaces or test heights do not fall.	Supplied in a sturdy plastic suitcase, Easy to carry to the job site

ElcoMaster software

ElcoMaster is fast and easy to use softsolutions for all your data management and Quality assurance is needed at the point of a buttonPrepare a professional inspection report.

Whether you are on-site or at the factory, with the ElcoMaster® mobile app users can:

• Store field readings directly to your mobile device and save them to batches.

• View the pull-out rate graph in real-time while the test is being conducted.

• Add attribute data to each data set of readings.

• At the click of a button, photos of the dolly and test surfaces can be added to each individual data set for readingNumber.

• Plot a single reading into a map of locations, photos or charts.

• Inspection data can be transferred from a mobile phone to a computer for further analysis and reporting.

• Generate .pdf file submissions instantly.

Data transferred from the instrument to the ElcoMaster includes:

• Adhesion measurement

• Date and time

• Adhesion shedding/cohesion shedding properties

• Dolly size

• Pull-out rate chart

• Pull to Limit/Highest

• Limit values

• Hold the time limit

• Cutting device

• Number of layers

• Skirt cover type/support ring size

• Data Group Information > Statistics

• Calibration information

• Calibration verification date/time

Product comparisons

Packing list：Host X1, 50mm forging die X6, 50mm forging die standard skirt cover X1, 50mm forging die cutting shaft X1, 50mm forging die cutter X1, Araldite standard two-component epoxy glue X2, grinding pad X1, shoulder strap X1, suitcase X1, AA rechargeable battery & charger X1, USB cable X1, CD X1, calibrate certificate X1, operation instructions X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
