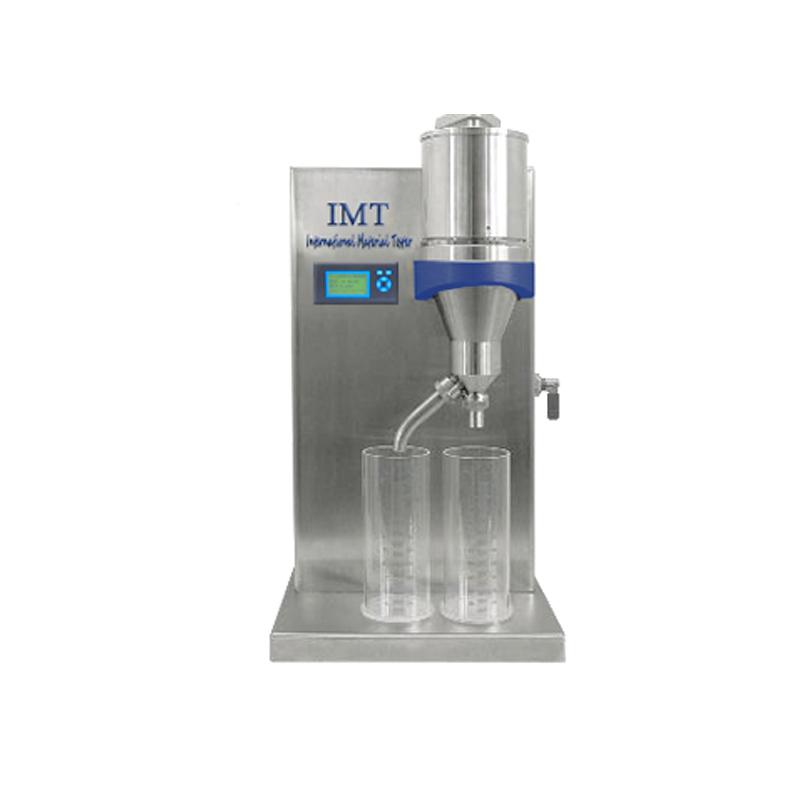

IMT IMT-DJD02 Digital Display Beating Degree Tester
IMT-DJD02
IMT IMT-DJD02 Digital Display Beating Degree TesterSPEC
IMT IMT-DJD02 Digital Display Beating Degree TesterDetails
IMT IMT-DJD02 Digital Display Beating Degree TesterPacking list
- SKU
- NB032507
- Measurement range
- 0~100°SR
- Measurement Accuracy
- 0.5SR
- Vertical drain section
- 137±1mm
- DC diameter
- 2.32±1mm
- Overflow outlet discharge time
- 149±1s
- overflow path
- 16.0±0.1mm
- release control
- Intelligent control, one-click completion
- release method
- Fully automatic release
- Rising speed of cone
- 100±10mm/s
- Dimensions
- 450*250*750mm
- Weight
- 50KG
- meet the standard
- ISO 5267/1、GB/T 3332-2004
Introduction
Papermaking Laboratory Testing Equipment IMT/Internesen IMT-DJD02 Digital Expression Pulping Degree Tester is a special pulp testing instrument for pulp percussion degree determination. According to the relevant provisions of the standard GB/T 3332-2004 "Determination of Pulp Pulping Degree (Shober-Rigler Method)", the professional production of pulp pulping degree testing instrument, pulp pulping degree Tester, also known as pulp percussion degree Tester, is based on the phenomenon that the percussion degree of pulp is inversely proportional to the water filtration rate of pulp suspension.
Scope of use
The Tester is designed to imitate the Schauber-Rigler slurry meter, which is used to determine the water filtration performance of slurry suspension, study the fiber condition and evaluate the slurry beating degree.
Enforce the standard
ISO 5267/1 Pulp – Determination of water filtration properties – Part 1: Schauber-Rigler method
GB/T 3332-2004
