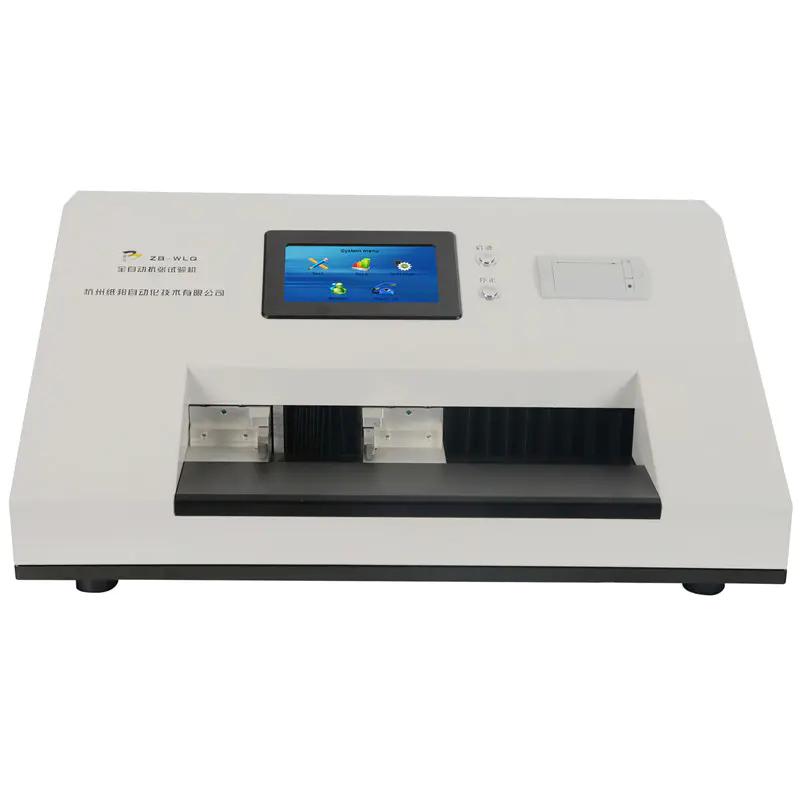

ZHIBANG ZB-WLQ100 Automatic horizontal computer tension instrument 0~100N

ZB-WLQ100

Automatic horizontal computer tension instrument

1. Overview

ZB-WLQ series automatic horizontal computer tensile Tester is a special instrument for testing paper tensile strength and wet tensile strength. The instrument adopts a horizontal design, which is compact, complete and easy to operate. The pneumatic clamping structure is adopted, the sample is flat, and the human error of the manual clamping device is reduced, and this structure fills the domestic (CN) gap. Using the current professional ARM technology, it has a powerful data processing function, can be automatically reset, easy to adjust, and stable performance. Large-screen color touch LCD display, Chinese menu, real-time display of various data and stretch curves.

The specific functions of the instrument are as follows:

1. Measure paper tensile strength, tensile strength, elongation, crack length, tensile energy absorption, tensile index, tensile energy absorption index

2. Measure the wet tensile strength of the paper (can be measured manually or fully automatically)

Second, the implementation of standards

ISO 1924 "Paper and Cardboard – Determination of Tensile Strength"

GB/T 12914 "Paper and cardboard -- Determination of tensile strength"

GB/T 24328.3 Paper and articles thereof – Part 3: Determination of tensile strength, elongation at break and tensile energy absorption

GB/T 24328.4 Paper and its products – Part 4: Determination of wet tensile strength (this standard was drafted and formulated by the company)

GB8808-1988 Peel test method for soft composite plastic materials

YYT0148-2006 General Requirements for Medical Tapes

GB13022-91 Test Method for Tensile Properties of Plastic Films

Third, the main performance characteristics

1. Imported servo motor is adopted, with low noise and accurate control

2. Adopt large-screen color touch LCD display, Chinese menu, real-time display of various data and stretch curve

3. Directly obtain the measurement results: after completing a set of tests, it is convenient to directly display the measurement results and print the statistical report, including the average value, standard deviation and coefficient of variation.

4. Variable sample size and tensile speed: For commonly used standard size specimens, the tensile test can be carried out directly at the specified speed, and the appropriate tensile speed can also be set according to the needs of the situation to change the test length and width of the sample.

5. High degree of automation: the instrument design selects professional devices at home and abroad, and the single-chip microcomputer carries out information sensing, data processing and action control, with automatic reset, data memory and overload protection

6. Data communication: The instrument is equipped with a standard serial RS232 interface, which can provide data communication for the upper computer integrated reporting system.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
