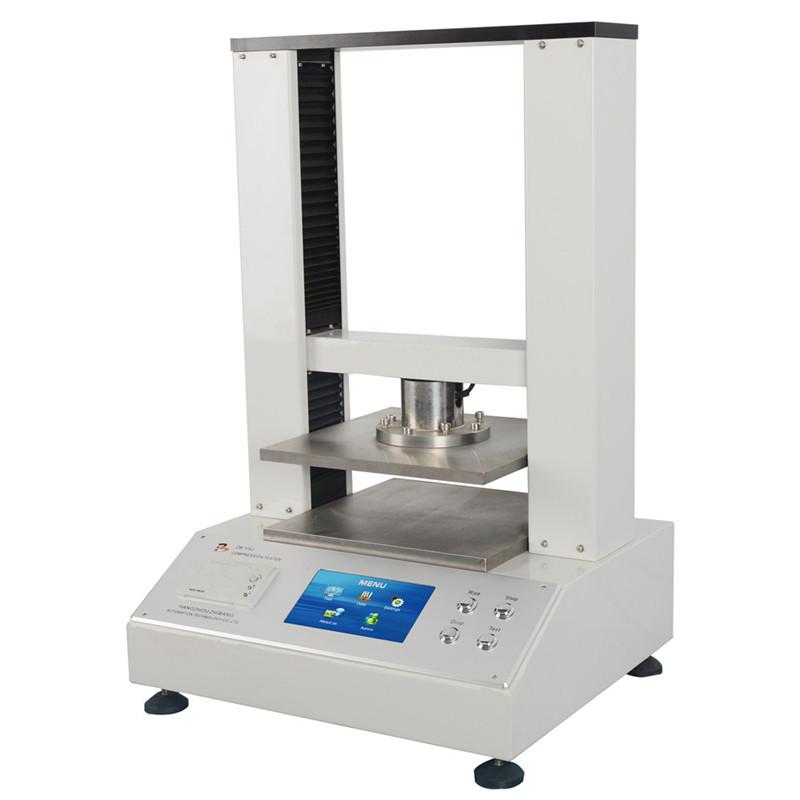

ZHIBANG ZB-YSJ5000 compressire strength Tester, paper bowl paper tube

ZB-YSJ5000

Compressire strength Tester

1. Overview

ZB-YSJ5000 paper tube flat compressive strength Tester is a special instrument for measuring paper ring compressive strength (RCT), corrugated cardboard edge compressive strength (ECT), corrugated cardboard flat compressive strength (FCT), corrugated cardboard adhesion strength (PAT), corrugated base paper flat compressive strength (CMT), paper tube flat compressive strength, and small carton compressive strength. It is a high-precision compressive strength testing instrument with very high cost performance in CHINA.

The instrument is a mechatronics structure, which is carefully and reasonably designed by using modern mechanical design concept and microcomputer processing technology. The instrument adopts the upper pressure plate fixed type, and the measurement accuracy is high. The touch screen man-machine communication interface is adopted, which is convenient for the user to operate. The ARM processing chip has a powerful data processing function, which can directly obtain the statistical results of various data, and can automatically reset, which is convenient to operate, easy to adjust, and stable in performance.

Second, the implementation of standards

ISO 12192 Compressive Strength ----- Ring Pressure Method for Paper and Cardboard ----

ISO 3070 "Determination of the Compressive Strength of Corrugated Cardboard ----- Edges"

ISO 7263 "Determination of the Flat Compressive Strength of Corrugated Paper ---- Laboratory after Fluting"

ISO 3035 "Determination of flat compressive strength of single-sided and single-corrugated cardboard"

ISO 11093-9 Paper and cardboard -- Determination of paper cores – Part 9: Determination of flat compressive strength

ISO 12048 "Packing Complete, fully packed transport packs -- Compression and stacking tests by press"

GB/T 2679.8 "Determination of Annular Compressive Strength of Paper and Cardboard"

GB/T 6546 "Determination of edge compressive strength of corrugated cardboard"

GB/T 6548 "Determination of adhesion strength of corrugated cardboard"

GB/T 2679.6 "Determination of flat compressive strength of corrugated base paper"

GB/T22874 "Determination of flat compressive strength of single-sided and single-corrugated cardboard"

GB/T22906.9 "Determination of paper cores – Part 9: Determination of flat compressive strength"

GB/T 4857.3 Test method for static load stacking of packaging and transport packages

GB/T 4857.4

Third, the main performance characteristics

1. The instrument function host, the user can order the corresponding accessories separately according to the actual situation, and realize a variety of strength tests of base paper and corrugated cardboard;

2. Servo motor control, low noise and accurate control

3. High degree of automation: the instrument design selects professional devices at home and abroad, and the ARM chip is used for information sensing, data processing and action control, with automatic reset, data memory and overload protection

4. It has the function of statistical processing of test data, and can be printed.

5. Mechatronics design, compact structure, beautiful appearance, easy maintenance

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
