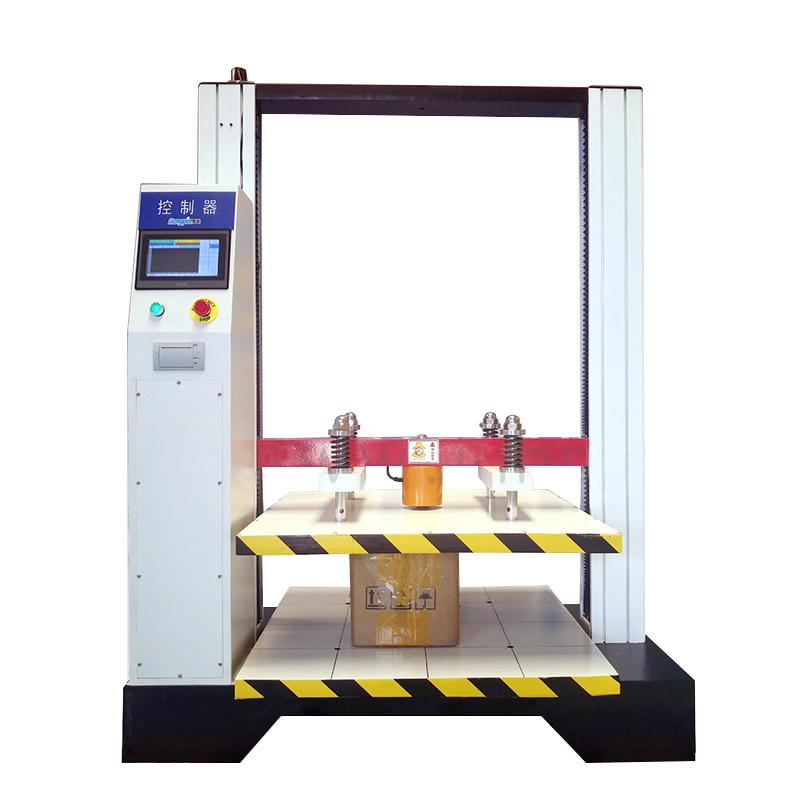

HENGPIN HP-KYJ-08 Touch screen carton compression testing machine
HP-KYJ-08
HengPin HP-KYJ-08 Touch screen carton compression testing machineSPEC
HengPin HP-KYJ-08 Touch screen carton compression testing machineDetails
HengPin HP-KYJ-08 Touch screen carton compression testing machinePacking list
- SKU
- NB032916
- Analysis
- 1/100000
- Sampling Frequency
- 400 times/second
- Force Accuracy
- +/- 0.1% of indication (20~100% FS)
- Force Sensor type
- 1mV/V,2mV/V,3mV/V,4mV/V,8mV/V,9.6mV/V
- Applicable Force Sensors Range
- 1~1000000N
- extensometer resolution
- 1/100000, sampling Frequency 50 times/sec
- Extensometer Accuracy
- +/- 0.1% of indication (20~100% FS)
- Displacement resolution
- Determined by the mechanical system and photoelectric encoder, it can generally reach 0.001mm.
- Measurement Accuracy
- Instrumentation system without error
- Pressurization speed
- 0.01~500mm/min
- Speed Accuracy
- Indication +/- 1%
- force channel
- Four.
- Displacement channel
- two
- Power supply Voltage
- 220±10%VAC 50Hz
- pulse number range
- 100~65535
- Unit switch
- manter:kN/N/kgf/gf/t/Lbf、 :mm/cm/in
- Operating temperature
- 0~55°Ｃ
- Relative Humidity
- Not more than 80%
Main uses and scope of use
This measurement and control system is specially developed for tensile machines, pressure machines, and electronic material testing machines. It is suitable for measuring the mechanical properties and related physical parameters of various materials in tensile, compression, bending, shearing, tearing, peeling, puncture and other states.
Features
The core components of this measurement and control system adopt imported new ultra-high-precision 24-bit AD, with a sampling rate of 400 times/second, and the resolution of the whole process is 300,000 indexes. And the 6-point calibration technology is used to further improve the accuracy, so that the accuracy of force acquisition reaches the national first-class standard. Displacement error-free positive and negative counting. The 7-inch TFT color touch screen, direct input of test parameters, Chinese and English operation interface prompts layer by layer, users can easily operate without operation manual. In addition, it can also communicate with the PC through the RJ45 network interface, with the special TM2100Pro professional deluxe version of the measurement and control software, real-time display of force-displacement, force-time, displacement-time, stress-strain and other curves, automatically calculate the maximum force, yield force, average force, maximum deformation, yield point, elastic modulus and other parameters, and has flexible report editing and printing functions.
The output control mode is flexible and changeable, which can be configured as pulse output mode to control servo motor or 0~10V Voltage output mode to control frequency conversion motor to achieve stepless speed regulation, and there are also up, stop and descend relay outputs that can be used to control DC motors or pneumatic, hydraulic and other power devices.
Features
★ four force channels;
★ two displacement channels;
★0~10V Voltage output mode, output control frequency conversion motor stepless speed regulation;
★ The pulse output mode controls the stepless speed regulation of the servo motor;
★ Optional micro printer to print test results and print the point;
★ For a single test, manual 10-point statistics, and automatic calculation of the average value, fracture value (suitable for peeling and tearing tests), up to 5 groups can be stored;
★ Adapt to a variety of grating encoders, pulse number range: 100~65535;
★ Units can be switched arbitrarily: force: kN/N/kgf/gf/t/lbf, displacement: mm/cm/in;
★ Automatic homing function;
★ The overload protection function can be set;
★ A variety of test methods such as fixed load and positioning shift.
