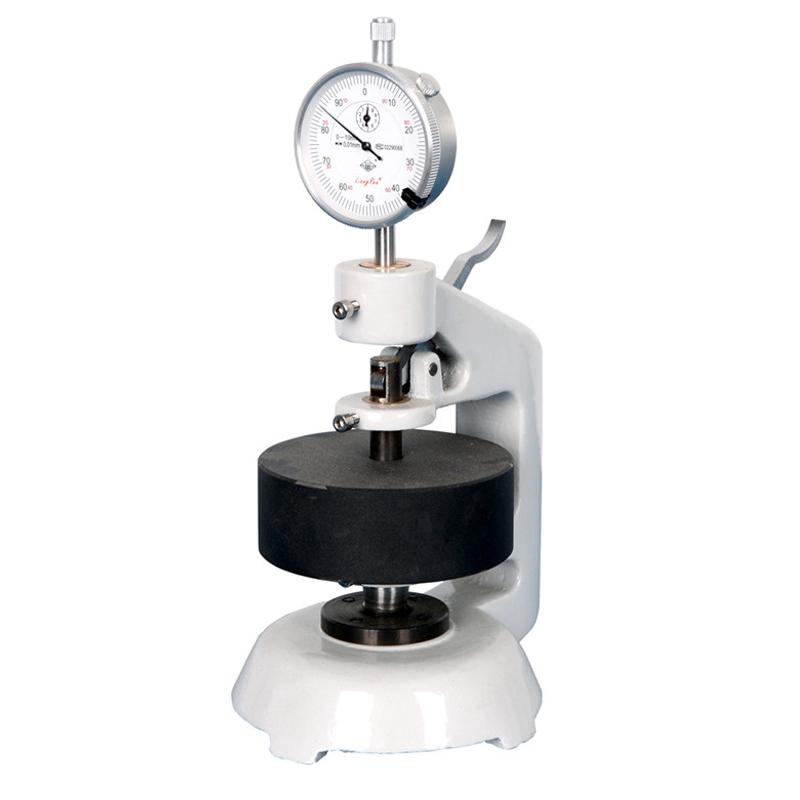

ZHIBANG ZBH-4 Paper and Cardboard Thickness Meter, Pointer Type, Percentile, Thickness Measurement up to 4mm
ZHIBANG ZBH-4 Paper and Cardboard Thickness Meter is a special instrument for the measurement of Paper thickness, ZBH-4 Paper and Cardboard Thickness Meter Measurement range 0~4mm, Measurement accuracy 0.001mm, Contact pressure 100 +/- 10kPa, Contact diameter 16.0 +/- 0.5mm, Measurement plane parallelism error 0.005mm or 1%, error of indication +/- 0.0025mm or +/- 0.5%.
Model：
ZBH-4 (one percent)
ZhiBang ZBH-4 (one percent) Paper and Cardboard Thickness MeterSPEC
ZhiBang ZBH-4 (one percent) Paper and Cardboard Thickness MeterDetails
ZhiBang ZBH-4 (one percent) Paper and Cardboard Thickness MeterPacking list
- SKU
- NB033074
- Measurement range
- 0~4mm
- Measurement Accuracy
- 0.01mm
- Contact Pressure
- 100±10kPa
- contact diameter
- 16.0±0.5mm
- Measurement plane parallelism error
- 0.005Mm or 1%
- Error of indication
- +/- 0.0025mm or +/- 0.5%
- Error of indication
- 0.0025Mm or 0.5%
- Dimensions
- 233*160*120mm
- Net Weight
- 5.5kg
ZBH-4 (one percent)
Paper and Cardboard Thickness Meter
1. Overview
ZBH-4 paper thickness Tester is a special instrument used to measure paper thickness.
It is widely used for thickness determination of paper, cardboard and other sheet materials. The instrument is cardboard, which is an indispensable common instrument for enterprises and departments such as cardboard and carton production, scientific research and commodity inspection.
Second, the implementation of standards
ISO 534 "Method for Determining the Thickness and Layer Tightness or Compactness of Paper and Cardboard ---"
GB/T 451.3 "Determination of the thickness of paper and cardboard"
FAQ
QDoes this Paper and Cardboard Thickness Meter comply with GB/T10335.3 standard?
A
The paper and Cardboard thickness gauge is suitable for GB/T10335.3, please consult customer service for detailed application definition
