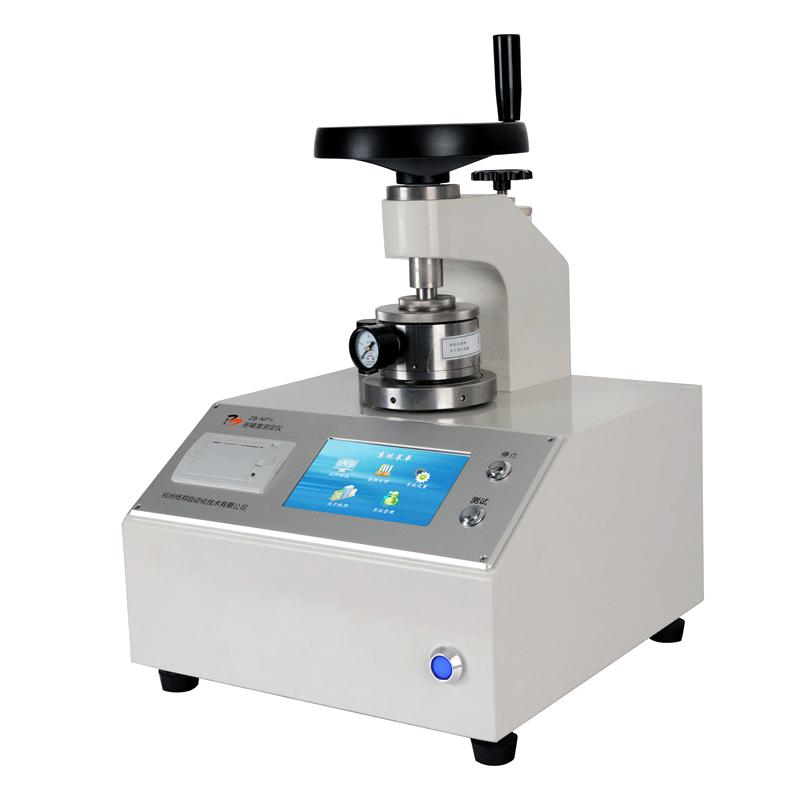

ZHIBANG ZB-NPY5600 Cardboard Burst Tester, Manual + Cardboard
ZB-NPY5600
ZhiBang ZB-NPY5600 Manual Cardboard Burst TesterSPEC
ZhiBang ZB-NPY5600 Manual Cardboard Burst TesterDetails
ZhiBang ZB-NPY5600 Manual Cardboard Burst TesterPacking list
- SKU
- NB033087
- Power supply Voltage
- AC220V±10% 50HZ
- Measurement range
- 200~5600kPa
- Error of indication
- ±0.5%F.S
- Oil delivery speed
- 170±15mL/min
- Clamping Force
- ≥700Kpa
- Film resistance
- Raise 10mm, 170kPa~ 220kPa; Raise 18mm, 250kPa~ 350kPa
- System sealing
- At the upper limit of measurement, 1 minute pressure drop < 10% Pmax
- Upper clamp ring aperture
- Φ(31.5±0.05)mm
- Dimensions
- 480*420*600mm
- Net Weight
- 65kg
- Lower clamp ring aperture
- Φ(31.5±0.05)mm
1. Overview
ZB-NPY5600 cardboard burst resistance Tester is a special instrument for measuring the bursting resistance of cardboard. It is designed according to the international working principle of Miaolun.
The instrument adopts high-precision sensors with high measurement accuracy. The clamping system is manual and easy to operate. With data processing function, it can directly obtain the statistical results of various data, and can automatically reset, easy to operate, easy to adjust, and stable performance.
Second, the implementation of standards
ISO 2759 "Cardboard – Determination of Burst Resistance"
GB/T 1539 "Cardboard – Determination of burst resistance"
Third, the main performance parameters
1. The clamping system adopts manual type, which is convenient to operate and does not require air source
2. The operating system displays the bursting strength of the sample in real time.
3. Automatic measurement, statistics and printing of test results, and data saving function;
4. High-speed micro printer, high-speed printing, easy to use, low failure;
5. Modern design concept of mechatronics, compact structure, beautiful appearance, convenient maintenance;
6. The instrument is equipped with a standard RS232 interface, which can communicate with the microcomputer software
