FARI FR-1311 Automatic Cracking Strength Tester

SE
The FR-1311 automatic rupture strength Tester is used to measure the rupture resistance of various Paper, and can also be used to test the rupture strength of non-paper materials such as silk, cotton, Plastic film and composite film. The FR-1311 rupture strength Tester (fully automatic) analysis degree is 1kPa, accuracy is ± 0.5% FS, capacity is 250~5600kPa, and the diameter of the clamping ring is ∮ 31.5mm.
$1470.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

FaRui FR-1311 Burst Strength Tester (automatic)SPEC

FaRui FR-1311 Burst Strength Tester (automatic)Details

FaRui FR-1311 Burst Strength Tester (automatic)Packing list

SKU
NB033116
Display
Touch screen liquid crystal display
induction method
pressure converter
Instruction method
Digital KG, MPA units can be converted
resolution
1kPa
Accuracy
±0.5%FS
Capacity
250 ~ 5600kPa
Clamp ring diameter
∮31.5mm
Clamping indication
Pressure gauge (set Clamping Force)
hydraulic oil
Glycerin 85%, distillation water 15%
Oil delivery speed
170±10cc/min
Clamping Force
≥ 690Kpa
motor
Shockproof motor 1/4 HP
Dimensions
620*510*570mm
Weight
67Kg
Power
1∮，AC220V，2.6A
printout
With print
Random delivery
Rubber film (2 pieces), aluminum foil (5 pieces), glycerin (1 bottle), special wrench (1 piece)
FR-1311
Burst Strength Tester (automatic)

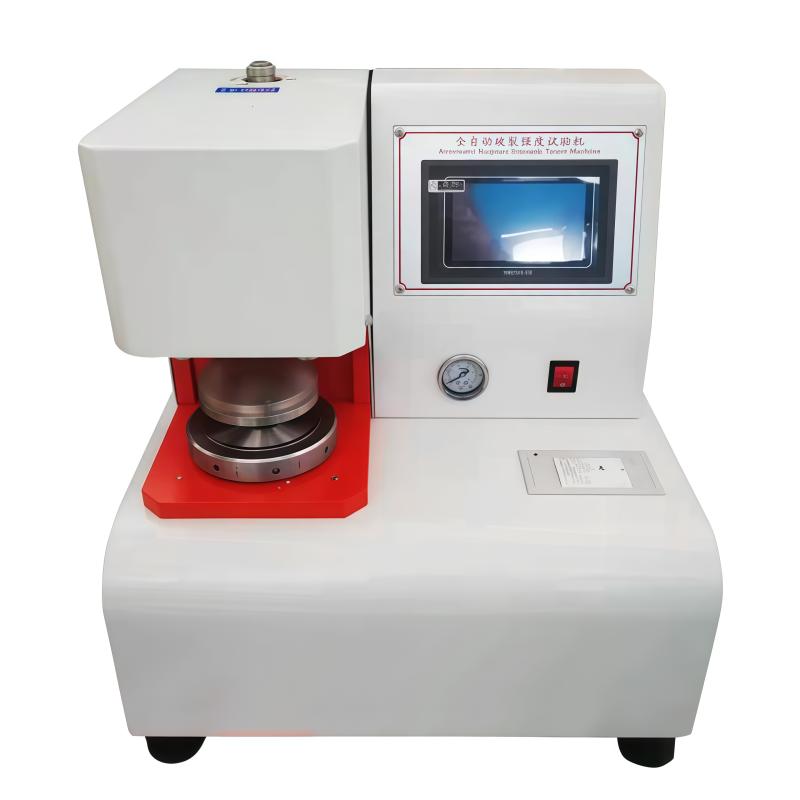

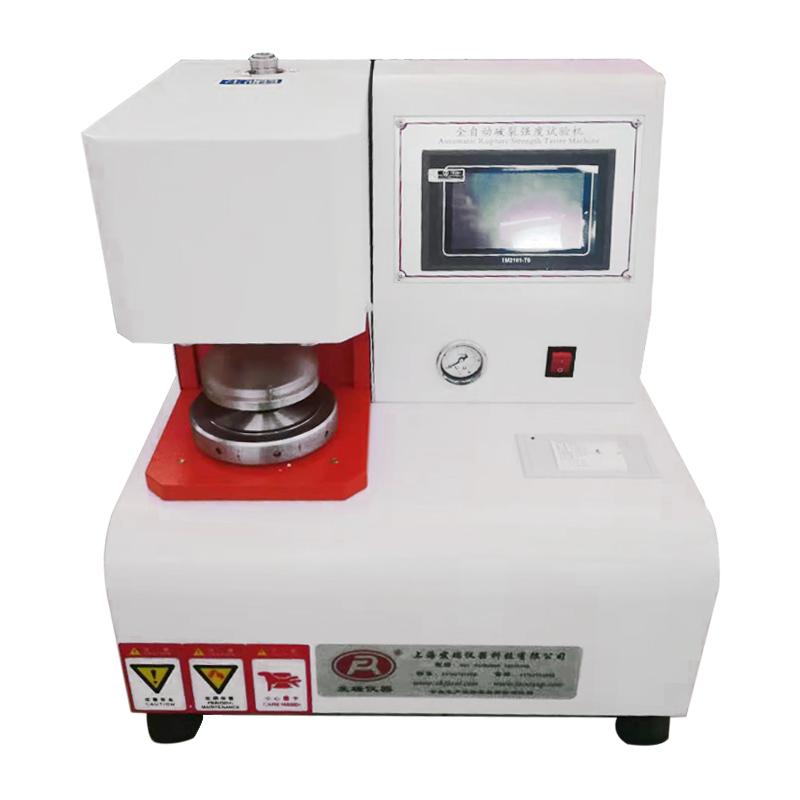

FARI FR-1311 Automatic Cracking Strength Tester Picture

Product Description

FR-1311 Bursting Strength Tester is designed and manufactured according to ISO2758 "Paper - Determination of Bursting Strength " and QB1057-98 standard, and it is an international universal Mullen instrument. It is mainly used to test the bursting strength of various papers, and it can also be used to test the bursting strength of non-paper materials such as silk, cotton cloth, plastic film and composite film. The paper burst Tester has the functions of testing, converting, adjusting, displaying, memorizing, printing and other parameters included in the standard. With data processing function, it can directly obtain the statistical results of various data, and can automatically reset, easy to operate, easy to adjust, and stable in performance.

FAQ
QHow big is the clamping ring of this FR-1311 automatic rupture strength tester?
A Hello, the diameter of this clip ring is 31.5mm.
QWhat is the accuracy of FR-1311 automatic rupture strength tester?
A Hello, the accuracy is ± 0.5% FS.
