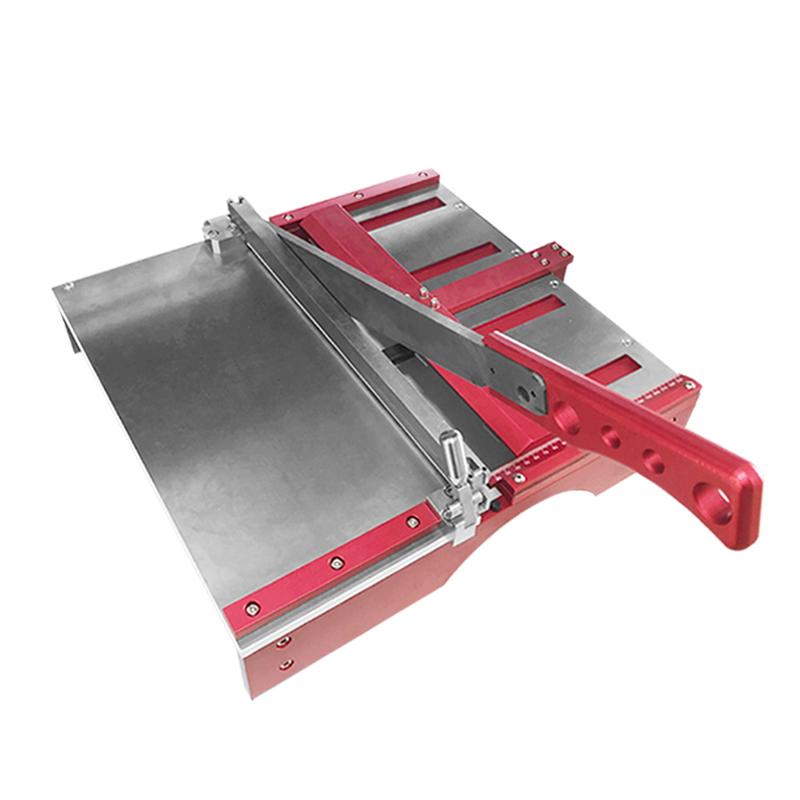

YINUO YN-KTD300 Paper Cutter
YINUO YN-KTD300 adjustable distance Paper Cutter is mainly used for standard sampling of high-strength sheet material samples with a thickness of less than 5mm. YN-KTD300 adjustable distance Paper Cutter sampling size range is 340 * 320 * 5mm, sampling thickness (0-5) mm, parallel accuracy 0.1 +/- 0.01mm, upper blade thickness 7.5mm.
Model：
YN-KTD300
YiNuo YN-KTD300 Paper Cutter with adjustable distanceSPEC
YiNuo YN-KTD300 Paper Cutter with adjustable distanceDetails
YiNuo YN-KTD300 Paper Cutter with adjustable distancePacking list
- SKU
- NB033125
- Sampling size
- 340*320*5mm
- Sampling thickness
- 0~5mm
- Parallel Accuracy
- 0.1±0.01mm
- Upper blade thickness
- 7.5mm
- Lower blade thickness
- 11mm
- knife length
- 640mm
- positioning torque ratio
- 31:11
- Feed height
- 5mm
- Blade Hardness
- Blades can be used to cut steel sheets
- Parallel positioning
- Inlet linear slide
- ruler
- Triangular inclined surface ruler, reverse reading
- Guide height
- 1mm
- notch parallelism
- ≤0.1mm
- Sampling table panel material
- 304 stainless steel
- Dimensions
- 700*500*190mm
- Weight
- About 25kg
YN-KTD300
Paper Cutter with adjustable distance
use
YN-KTD300 adjustable pitch paper cutter is mainly used for standard sampling of high-strength sheet material samples with a thickness of less than 5mm, using imported linear slide rail for precise parallel positioning can quickly and accurately cut the area of the sample, special treatment fine grinding steel sheet good mold can withstand long-term use is not easy to deform, when encountering high-strength material accuracy deviation, only need to refine grinding to restore the original, suitable for various types of paper, film, non-woven fabrics, plastic plates, metal sheets and other specimens cutting.
Enforce the standard
GB/T457 、QB2679.5、ISO 5626
Scope of application
| Basic application | Films, flakes | Thickness measurement of various plastic films, sheets, separators, etc |
| paper | Thickness determination of various types of paper, cardboard, composite cardboard, etc | |
| Extend your application | Metal sheets, silicon wafers | Thickness measurement of silicon wafers, foils, various metal sheets, etc |
| Corrugated cardboard | Thickness determination of corrugated cardboard | |
| textile materials | Thickness determination of various textile materials such as woven fabrics, knitted fabrics, coated fabrics, etc | |
| Nonwovens | Thickness determination of various types of nonwovens such as diapers, towels, medical masks, etc | |
| Other materials | Thickness determination of solid electrical insulating materials, adhesive tapes, geosynthetics, rubber, etc |
