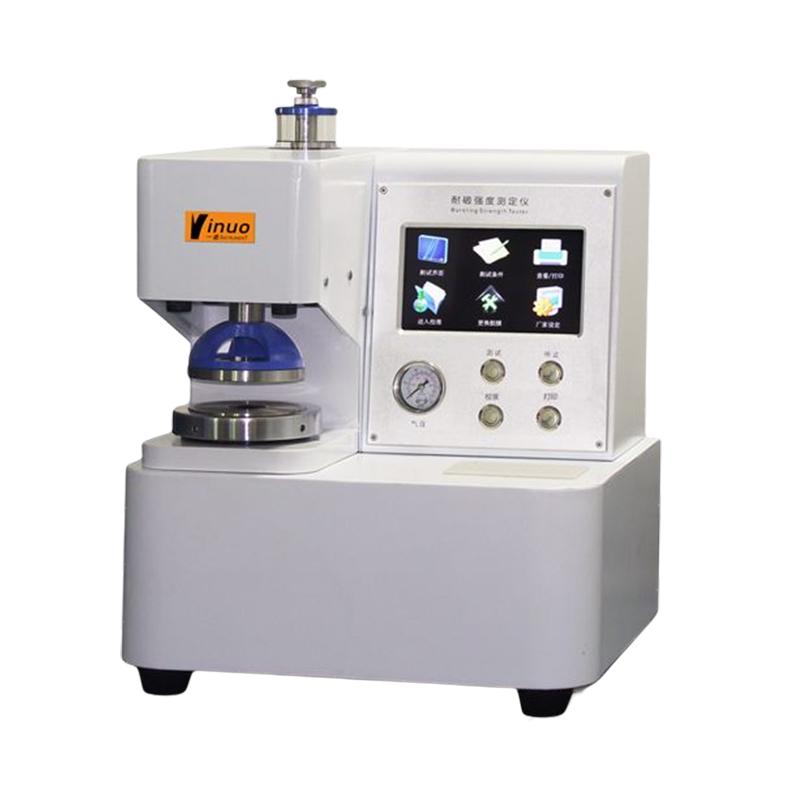

YINUO YN-NPY1400 Microcomputer paper bursting strength Tester

YN-NPY1400

Microcomputer paper bursting strength Tester

Instrument Usage

YN-NPY1400 microcomputer burst strength Tester is a special test instrument for paper burst strength, which adopts pneumatic clamping and clamping mode, uses the adhesive film to detect the burst strength of the paper, and simulates the elongation force required when the paper is slowly broken by the elastic adhesive film. It is mainly used to detect the rupture strength test of various types of paper, low-weight cardboard, aluminum foil and other sheet materials, and is suitable for paper mills, scientific research units and quality inspection departments.

Operating Principle

The principle of paper burst resistance test: the specimen is placed on the elastic adhesive film, and the periphery of the specimen is tightly clamped to make it convex freely with the adhesive film. When the hydraulic fluid is pumped in at a steady rate, causing the film to bulge until the specimen ruptures, the maximum pressure applied is the specimen burst resistance.

Enforce the standard

GB/T 454、QB/T 1057、ISO 2758、TAPPI T403

Technical characteristics

1. 7in touch screen with curve display, free switching between Chinese and English;

2. Pneumatic clamping of the specimen, the test method of the glue film breaking the specimen;

3. The pressure plate is a round hole open and is in the test axis, and the data is stable and more accurate;

4. Automatically clamp the sample, and eliminate the influence of the Tester during the test process;

5. Open structure, 360-degree full-view visual viewing of the whole process of testing;

6. Built-in calibration system, with delayed pressurization control, with depressurization delay control, automatic reset after the test is completed;

7. Built-in upper and lower limit protection device, overload protection, air hitting or exceeding the protection range will not burst the film.

8. With double sealing oil circuit device, the whole oil circuit system achieves high strength and high pressure sealing, which eliminates oil leakage of the oil circuit system and improves the life and stability.

9. The powerful curve analysis function displays the test changes in real time, instantaneous force value, strength value, clamping force, maximum value, minimum value, average value, bursting index and other data.

Product configuration

Scope of application

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
