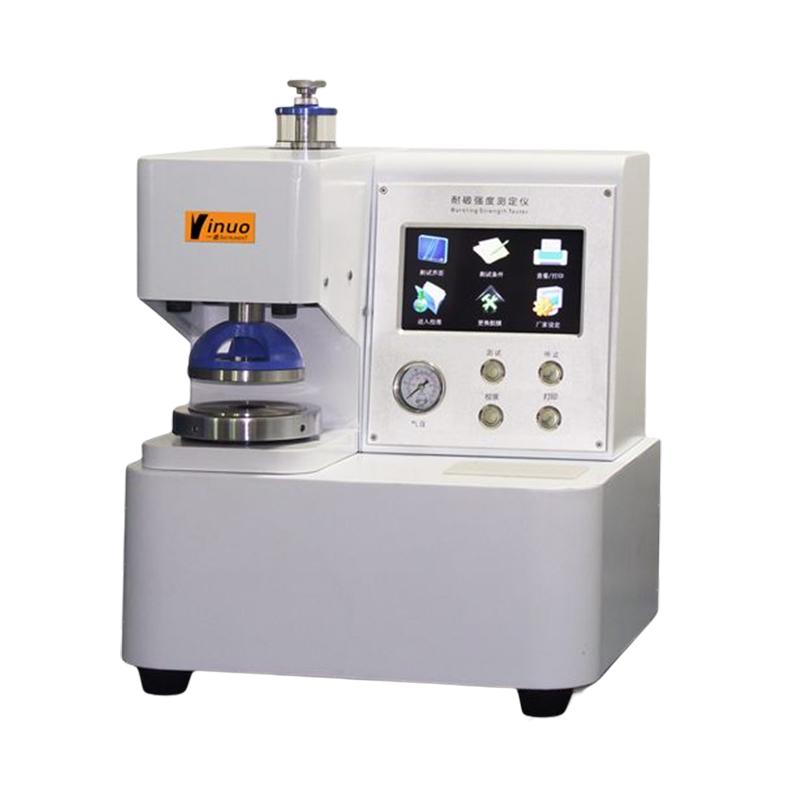

YINUO YN-NPY1600 Microcomputer Burst Strength Tester (touch screen) ≤ 1600Kpa paper breaking resistance

YN-NPY1600

Microcomputer Burst Strength Tester

Instrument use

YN-NPY1400 microcomputer bursting strength Tester is a special test instrument for paper bursting strength. It adopts pneumatic clamping and clamping method, and uses the film bursting sample to detect the bursting strength of the paper, simulating that the paper is slowly bursting by the elastic film. elongation force required. It is mainly used to test the bursting strength of various types of paper, low-weight cardboard, aluminum foil and other sheet materials. It is suitable for paper mills, scientific research units and quality inspection departments.

Principle

The principle of paper bursting test: place the sample on the elastic film, clamp the periphery of the sample tightly, so that it can freely protrude together with the film. When the hydraulic fluid is pumped in at a steady rate to make the film bulge until the sample ruptures, the maximum pressure applied is the burst resistance of the sample.

Executive standard

GB/T 454, QB/T 1057, ISO 2758, TAPPI T403

technical features

1. 7in touch screen with curve display, free switching between Chinese and English;

2. Pneumatic clamping of the sample, and the test method of the film bursting sample;

3. The pressure plate is a round hole opening and is on the test axis, so the data is stable and more accurate;

4. Automatically clamp the sample, and eliminate the influence of the Tester during the test process;

5. Open structure, 360-degree full Viewing Angle to visually watch the whole process of testing;

6. Self-contained calibration system, with delayed pressurization control, with back pressure delay control, automatic reset after the test is completed;

7. Built-in upper and lower limit protection devices, overload protection, no membrane burst when running dry or exceeding the protection range.

8. Equipped with a double-sealed oil circuit device, the entire oil circuit system achieves high-strength and high-pressure sealing, which prevents oil leakage from the oil circuit system and improves life and stability.

9. The powerful curve analysis function can display test changes in real time, such as instantaneous force value, strength value, clamping force, maximum value, minimum value, average value, burst index and other data.

product configuration

Application

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
