YINUO YN-CWY02 Corrugated base paper flat pressing (CMT) Tester
YN-CWY02
YiNuo YN-CWY02 Corrugated base paper flat pressing (CMT) TesterSPEC
YiNuo YN-CWY02 Corrugated base paper flat pressing (CMT) TesterDetails
YiNuo YN-CWY02 Corrugated base paper flat pressing (CMT) TesterPacking list
- SKU
- NB033154
- Rotation speed
- 4.5R/min, the error should not exceed +/- 0.5r/min
- Display resolution
- 1℃
- Measurement Accuracy
- Level 0.5 +/- 1 Word
- Operating temperature adjustable range
- Room temperature~ 200 ℃ (according to different paper types and Working pressure selection)
- Working pressure adjustable range
- (4~ 108) N, the set Working pressure should be consistent with the actual Working pressure of the flute wheel, and the error should not exceed +/- 10%.
- Operating temperature
- 175 ℃, 177 ℃ when the actual error should not exceed 8 ℃
- Temperature safety
- Working time exceeds 2 hours, the shell temperature does not exceed 50 ℃.
- heating mechanism
- The thermal insulation resistance of the electric heating plate should be greater than 5MΩ.
- real-time monitoring window
- With monitoring window 155 × 338mm, it can be opened at any time to monitor the real-time working status
- Environmental temperature
- Environmental temperature 20 +/- 10 ℃; no vibration, no flammable, corrosion gas
- Standard tooth type
- A-tooth
- Grooved wheel outer diameter
- 228.5±0.5mm
- Flute wheel thickness
- 16±1mm
- number of teeth
- 84.
- Tooth tip arc radius
- R l.5±0.1mm
- Valley arc radius
- R 2.0±0.1mm
- Full tooth height
- 4.75±0.05 mm
- Power supply Voltage
- AC220V 50Hz
- Dimensions
- 520*450*380mm
- CCT clamp tooth length
- Greater than 19mm
- CCT clamp number of teeth
- 16.
- CMT clamp tooth depth
- 4.75±0.05mm
- CMT clamp lower tooth radius
- 2.4±0.1mm
Application:

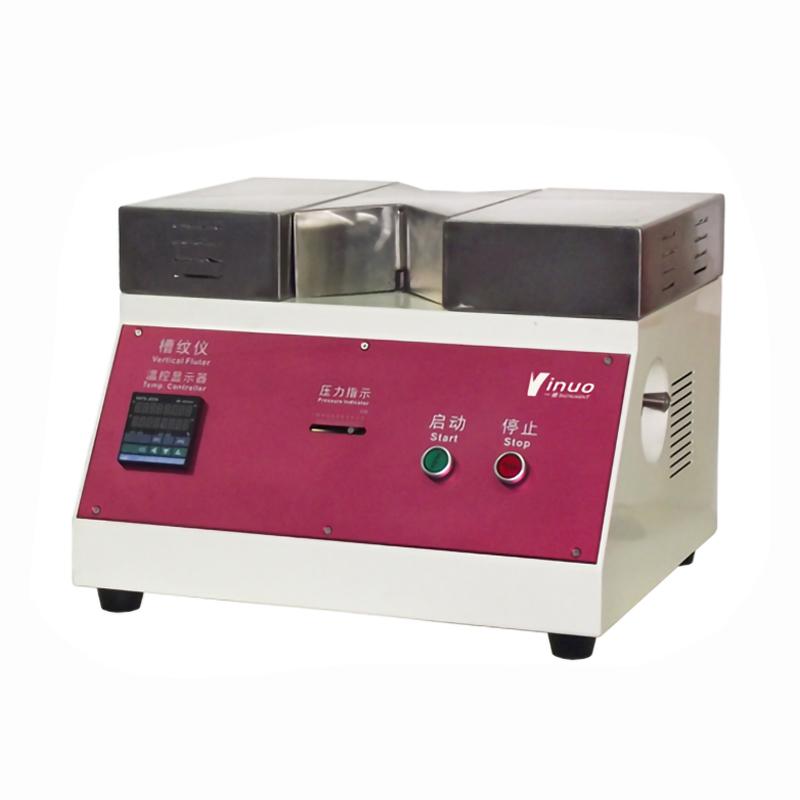

YN-CWY02 corrugated base paper groove Tester is used in the laboratory to test the flat compressive and vertical compressive strength of corrugated base paper after it is raised, the groove meter is specially used for the determination of the flat compressive strength of corrugated base paper and the production of standard samples when the compressive strength of corrugated base paper is erected, that is, the production of standard corrugated waveform (that is, corrugated core base paper laboratory fluting), after fluting with automatic or microcomputer compression Tester can measure the flat compressive strength and compressive strength of corrugated core base paper, in line with QB/T 1061, GB/T2679.6 and ISO7263 and other standards, is the paper mill, scientific research, quality inspection institutions and other departments of the core testing equipment.
Standard:
QB/T 1061、ISO7263-2008
Application scope:
Base paper/kraft paper flutes
