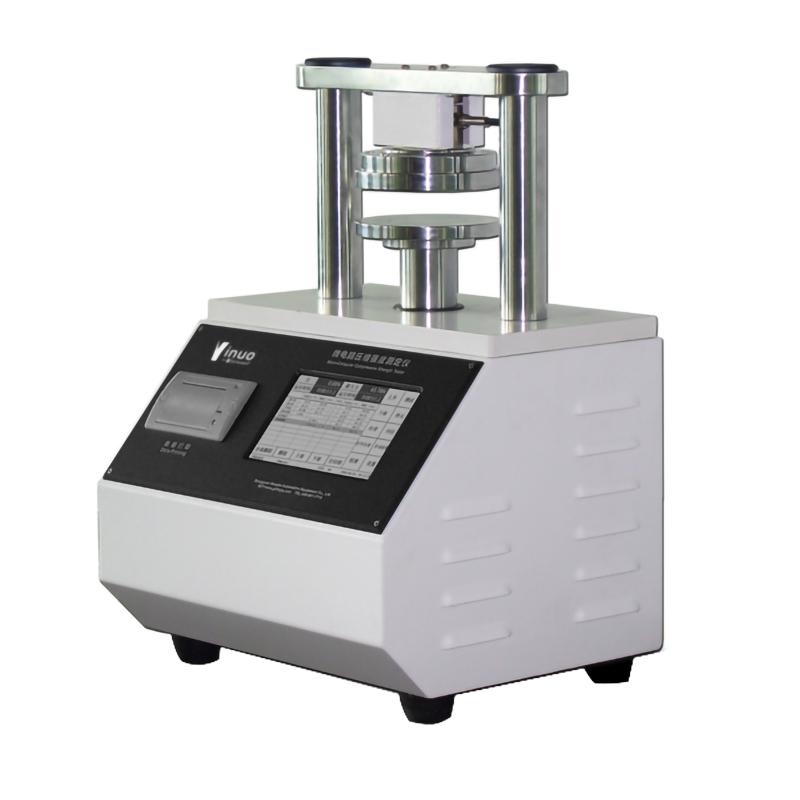

YINUO YN-YSB3000 Microcomputer Edge Compression Strength Tester

YN-YSB3000

Microcomputer edge Compressive Strength Tester

Instrument Usage

YN-YS3000 microcomputer compressive strength Tester is used to determine the unilateral vertical compressive strength testing instrument of corrugated boxes, the length and width of the sample are standard sizes, and the specimen and guide need to be accurately parallel to ensure the smoothness and repeatability of the edge compressive strength test results. The testing machine complies with a variety of test standards, in addition to the edge compression strength test (RCT), adhesive peel strength test (PAT), flat compression strength test (FCT) of corrugated boxes, it can also be used to measure the ring compressive strength test (RCT) of corrugated paper sheath and corrugated core paper, and CCT and CMT tests after flugling in the base paper laboratory.

Operating Principle

Test principle: The rectangular cardboard specimen is placed between the two pressing plates of the compression Tester, and the corrugated direction of the sample is perpendicular to the two pressing plates of the Tester, and then the pressure is applied to the sample until the sample is crushed, and the ultimate pressure that the sample can withstand is determined.

Enforce the standard

Edge compression strength: GB/T 6546, ISO3037;

Ring compressive strength: GB/T 2679.8, ISO 12192, TAPPI T822;

Adhesion strength: GB/T 6548;

Flat compressive strength: GB/T 2679.6, ISO 3035, TAPPI T825;

CMT ： ISO 7263、 TAPPI T809；

CCT ： TAPPI T843;

Technical characteristics

7in large-screen color touch screen, with curve display, free switching between Chinese and English;

High-precision load cell, factory accuracy error control at <0.3%;

Built-in air circulation and heat dissipation device to improve equipment failure for long-term operation;

Precision ball screw drive and aluminum alloy panel are used to ensure that the instrument is durable;

The precise guidance platen guarantees very high lateral stiffness and ensures repeatable test results;

Upper and lower limit protection devices, overload protection, automatic return after the test is completed, automatic judgment of crushing force and automatic saving of test data;

Product configuration

Standard Configuration:Host, edge pressure guide block, micro printer, thermal printing paper, power cord, manual, certificate, warranty card

Options:Special sampler for edge pressure, adhesive fixture, professional software, communication cable

Application

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
