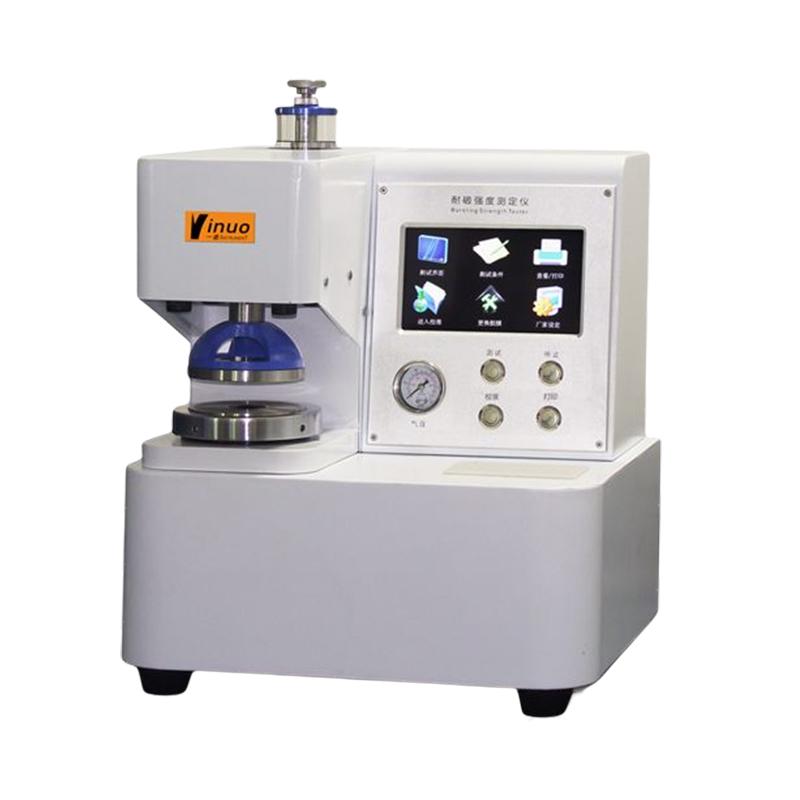

YINUO YN-NPY5600 Microcomputer Cardboard Burst Strength Tester

YN-NPY5600

Microcomputer Cardboard Burst Strength Tester

Instrument Usage

YN-NPY5600 microcomputer burst strength Tester is a special test instrument used to determine the bursting strength of cartons, using pneumatic clamping and clamping methods, using adhesive film to break the sample to detect the bursting strength of cardboard, this test simulates the elongation force required when the carton is slowly broken by the elastic adhesive diaphragm, suitable for corrugated cardboard carton burst strength test, heavy-duty packaging box burst strength test, is an indispensable satisfactory equipment for paper manufacturers, packaging and printing industry, and quality inspection departments.

Operating Principle

Test principle: the specimen is placed on the elastic adhesive film, clamped with the specimen clamp, and then the pressure is applied uniformly to make the specimen and the adhesive film free convex together until the specimen is broken, and the burst resistance of the specimen is the maximum value of applied hydraulic pressure.

Enforce the standard

GB/T 6545，GB/T 1057，GB/T10739，ISO 2759，TAPPI T810

Technical characteristics

7in touch screen with curve display, free switching between Chinese and English;

Pneumatic clamping of the specimen, glue film breaking specimen test method;

The pressure plate is a round hole open and is in the test axis, and the data is stable and more accurate;

Automatic gripping of the specimen, eliminating the influence of the Tester during the testing process;

Open structure, 360-degree full Viewing Angle to view the whole process of testing;

Built-in calibration system, with delayed pressurization control, with depressurization delay control, automatic reset after the test is completed;

Built-in upper and lower limit protection device, overload protection, no film burst if empty or beyond the protection range.

With double sealing oil circuit device, the whole oil circuit system achieves high strength and high pressure sealing, eliminating oil leakage of the oil circuit system and improving the life and stability.

The powerful curve profiling function displays real-time test changes, instantaneous force value, strength value, clamping force, maximum value, minimum value, average value, burst resistance index and other data.

Product configuration

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
