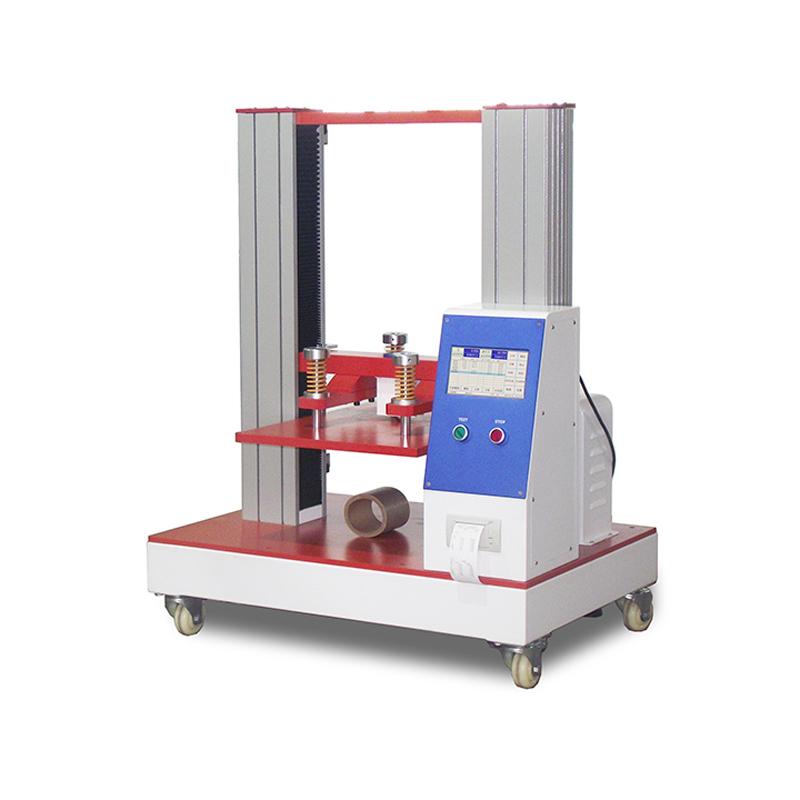

YINUO YN-200 Microcomputer compressire strength Tester
YN-200
YiNuo YN-200 Microcomputer compressire strength TesterSPEC
YiNuo YN-200 Microcomputer compressire strength TesterDetails
YiNuo YN-200 Microcomputer compressire strength TesterPacking list
- SKU
- NB033161
- Force range
- 50~30000N
- Measurement size
- (600 * 400 * 600) mm/(800 * 600 * 800) mm; (1000 * 800 * 1000) mm/(1200 * 1000 * 1200) mm; (1200 * 1200 * 1200) mm/(1500 * 1500 * 1500) mm; other sizes can be customized according to customer requirements
- test function
- Determination of compressire strength, stacking strength, constant value strength, compression displacement
- Force Accuracy
- +/- 1% or less
- Sensing deformation error
- ≤±1mm
- Sensors Analytical Accuracy
- 0.3%
- Plate parallelism
- ≤1mm
- Deformation Accuracy
- ≤0.1mm
- Pressurization speed
- 5~ 300mm/min stepless adjustable
- Unit switch
- N、kgf、Lbf
- printout
- modular integrated thermal printer
- Computer control
- Computer-specific analysis software, Linear dispersion detail analysis, with dedicated programmable file management analysis report, A4 printing (optional)
- Safety Devices
- 1. Stroke protection: high is the Upper/Lower limit protection switch to prevent exceeding the preset stroke; 2. Force protection: the system can set the force value to prevent exceeding the sensor calibration value; 3. Emergency stop device: This high is equipped with an emergency stop switch, which can handle emergencies;
- Operating Environment
- Temperature (20 +/- 10 ℃), Humidity < 85%
- Power supply Voltage
- 220V / 50Hz,: 400W ~ 2000W
- Dimensions
- Different Dimensions
- Weight
- Different sizes and Weights
Instrument Usage
YN-200 microcomputer compressive strength Tester is specially used for the test of compressive strength of carton packaging, the equipment specifications need to be selected according to the size of the carton, and the carton and the pressing plate need to be accurately parallel during the test to ensure the stability and repeatability of the test results. This compression Tester conforms to the international compressive strength inspection method for packaging and transportation, and is suitable for compressive test, constant pressure test, stacking test, compression displacement test and deformation test of high-strength packaging such as corrugated boxes and honeycomb boxes, and can also be used for compression test of plastic barrels and other material container containers.
Test functionality
Constant value test: in the case of compression test, a predetermined pressure is added to determine the pressure holding test of the box;
Compressive test: In the case of compressive test, pressurization is carried out until the sample is damaged, which is used to determine the ultimate compression resistance of the box;
Stacking test: In the case of a stacking test, a predetermined load is applied until the specimen is damaged or lasts for a predetermined time;
Compressive displacement test: In the case of compressive test, a predetermined pressure or displacement is added to detect the deformation result of the carton after compression;
Enforce the standard
GB/T 4857.4 、GB/T 4857.3 、ISO 12408、ISO 2234、QB/T 1048、ASTM D642、ASTM D4169 TAPPI T804
Technical characteristics
7in touch screen Chinese and English bilingual system, real-time display of anti-stress information, data more intuitive;
The force and time can be directly set, and the compressive results and compression deformation of the carton can be automatically recorded after the test is completed.
Open structure design, double ball screw, double guide pillar, good parallelism, good stability, strong rigidity and long service life;
Limit stroke protection, overload protection, and other intelligent configurations to ensure the safety of users' operations.
The built-in power protection device can protect the equipment from damage caused by excessive or unstable magnetic field of the power supply.
The instrument is equipped with a high-speed micro printer, which prints data such as test time, test number, maximum crushing force, compression displacement, etc.;
It can be equipped with special computer analysis software to analyze the details of the curve, with a special programmable file management analysis report, A4 printing (optional);
Application
| Basic application | carton | Strength test of corrugated boxes, honeycomb cartons, single-layer cardboard boxes, and heavy-duty cartons |
| Paper products | Strength test of paper corner protectors, paper buckets, paper boxes, and paper cans | |
| Expand your application | wooden box | Strength test of export wooden box, sliding wooden box, pallet collar, plywood box |
| bucket | Strength test of plastic packaging barrels and container barrels | |
| other | Other fiberboard container compression tests |
