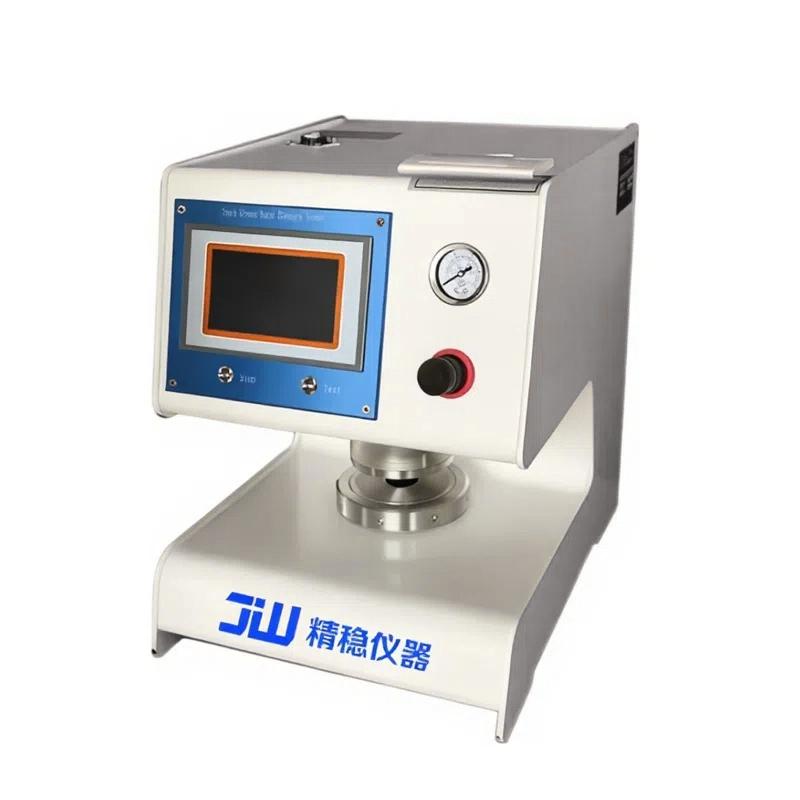

JINGWEN JW-102C1Z paper Burst Tester, Burst Tester
SE
JW-102C1Z
jingwen JW-102C1Z Paper Burst TesterSPEC
jingwen JW-102C1Z Paper Burst TesterDetails
jingwen JW-102C1Z Paper Burst TesterPacking list
- SKU
- NB033175
- Control panel
- 5.5-Inch touch screen, friendly menu-type man-machine interface, easy to operate
- Measurement range
- 50 ~ 1400kpa
- Clamping Force
- 0 ~ 1000Kpa
- Oil delivery speed
- 95±5mL/min
- Resolution
- 0.1kpa
- Error of indication
- ±0.5%F.S
- System sealing
- At the upper limit of measurement, 1 minute pressure drop < 10% Pmax
- Sample clamp ring size
- Upper plate diameter
- Communication interface
- Configurable Rs232 (optional)
- unit conversion
- Kg / cm2 、 kpa 、 lbf / in2
- Power
- 220V±10% 50Hz
- System sealing
- Pressure drop within 1min < 10% FS;
- upper pressure plate
- Made of acrylic, you can clearly see the bulging state of the film
- printout
- Modular integrated thermal printer
- Operating Environment
- Indoor temperature (20 +/- 10) ℃; Relative Humidity < 85%
- Dimensions
- 428*318*412mm
- Weight
- About 50Kg
- Clamping Force
- 490Kpa
Introduction
JW-102C1Z Paper Burst Strength Tester is a special instrument for testing the bursting strength of various papers. Breakage detection.
Features
Mechatronics modern design concept, compact structure, modular structure, beautiful appearance, easy maintenance; full scale alarm function, 3-speed limit alarm, pressure limit protection alarm, protection of precision sensors; high-speed ARM processor, high degree of automation High, fast data collection, automatic measurement, intelligent judgment function, safe and reliable; 24-bit high-precision AD converter (resolution up to 1 / 10,000,000) and high-precision, stable performance pressure sensor to ensure instrument force data collection The rapidity and accuracy of the module; the use of a modular integrated thermal printer, the printing speed is fast, and the paper is easy to change; a variety of unit options can be switched between kPa, kgf/cm2, and lbf/in2; print output: modular Integrated thermal printer. With power-down protection test data
According to the standard
ISO2758 "Paper - Determination of Bursting Strength" and GB454 "Determination of Bursting Strength of Paper"
