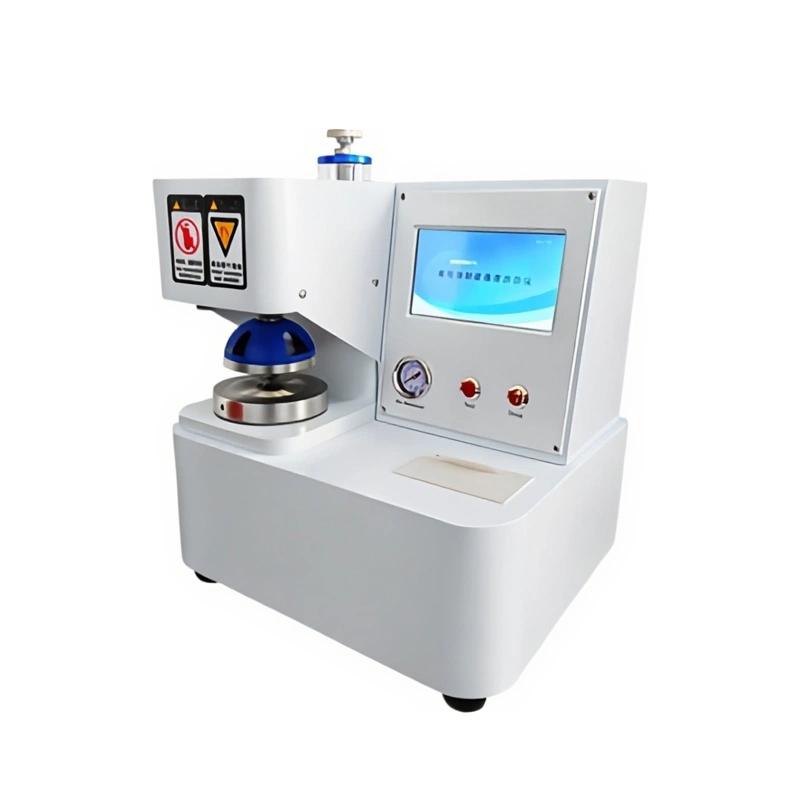

JINGWEN JW-102C2Z paper Burst Tester

SE
Measurement range 150~5600kpa (Cardboard) 50~1400kpa (paper), accuracy ≤ +/- 0.5%, resolution 0.1kpa, deformation error ≤ 1mm, in line with ISO 2758, GB 454 and other international standards, widely used in scientific research, papermaking, Encasement and Quality control industries.
$1544.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

jingwen JW-102C2Z Paper Burst TesterSPEC

jingwen JW-102C2Z Paper Burst TesterDetails

jingwen JW-102C2Z Paper Burst TesterPacking list

SKU
NB033178
Display
7In touch screen display, easy to operate
Measurement range
150~5600KPa (Cardboard) 50~1400KPa (paper)
Accuracy
≤±0.5%
Resolution
0.1kpa
deformation error
≤1mm
Concentricity of Upper/Lower plates
≤0.25mm
Film resistance
10mm, (170~220) kPa; 18mm, (250~350) kPa (Cardboard) (9 +/- 0.2) mm/(30 +/- 5) kPa (paper)
Oil delivery speed
175 +/- 5mL/min (Cardboard); 95 +/- 5mL/min (paper)
Pressure outer diameter
35mm±1mm
Work displacement
53mm±2mm
Pressure plate diameter
Upper plate diameter
Deformation monitoring
Chord length 41mm 3D semicircle full window Viewing Window
test control
With delayed pressurization control, with decompression delay control
Drive structure
All-steel chain drive to prevent compression deviation and improve detection stability and life
Hydraulic system
High-strength high Voltage oil circuit sealing system with double sealing knob, 25mm high Voltage 30 stainless steel YouTube
Circuit board chip protection
Comes with water vapor filtrating device to protect the stability of the circuit device
Power block protection device
Anti-interference, prevent electromagnetic field instability to ensure test data Accuracy and reliability
Calibrating system
Comes with calibrating system, comes with manual pressurization and decompression Control system
Test head material
The cylinder part, upper clamping and lower clamping parts are all 304 stainless steel
Clamping Force
> 690Kpa
unit conversion
Kg / cm2 、 kpa 、 lbf / in2
printout
Modular integrated thermal printer
Dimensions
400*400*500mm
Weight
50Kg
JW-102C2Z
Paper Burst Tester
Measurement range 150~5600kpa (Cardboard) 50~1400kpa (paper), accuracy ≤ +/- 0.5%, resolution 0.1kpa, deformation error ≤ 1mm, in line with ISO 2758, GB 454 and other international standards, widely used in scientific research, papermaking, Encasement and Quality control industries.

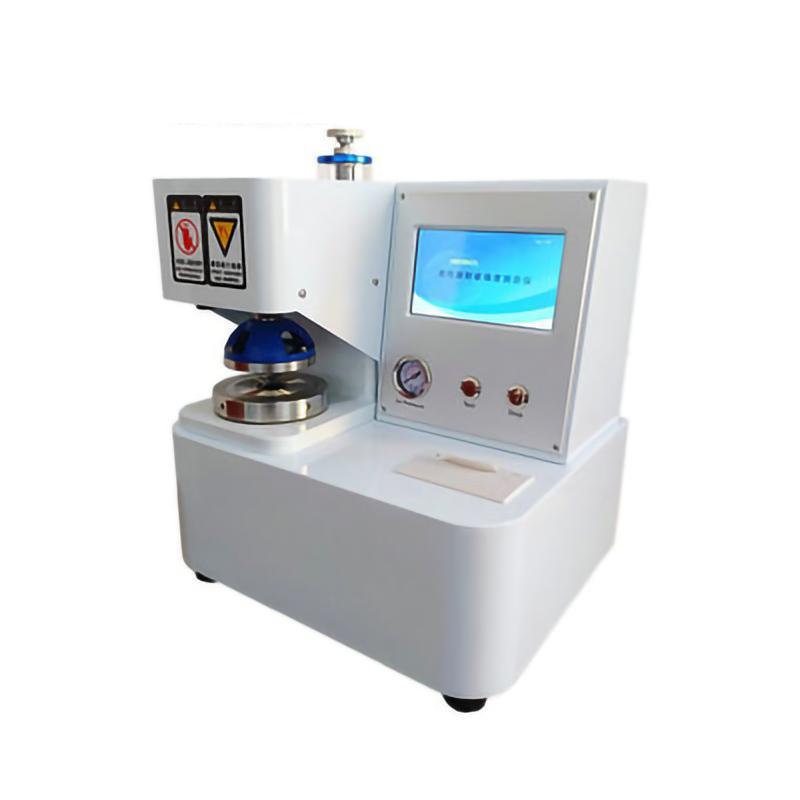

JINGWEN JW-102C2Z paper Burst Tester Picture

Applications:

JW-102C2Z Paper Burst Strength Tester is a special instrument for testing the bursting strength of various papers. Its performance parameters and technical indicators conform to ISO2758 "Paper - Determination of Bursting Strength" and GB454 "Measuring Method of Bursting Strength of Paper" " and other standards stipulate that it is suitable for the detection of bursting strength of various types of paper, and it can also be used for the detection of bursting strength of non-paper sheet materials such as silk and cotton cloth. The instrument is easy to operate, reliable in performance, and professional in technology. It is an indispensable and desirable equipment for scientific research units, paper manufacturers, packaging industries, and quality inspection departments.

Standards: GB/T454, QB/T 1057, ISO 2758
