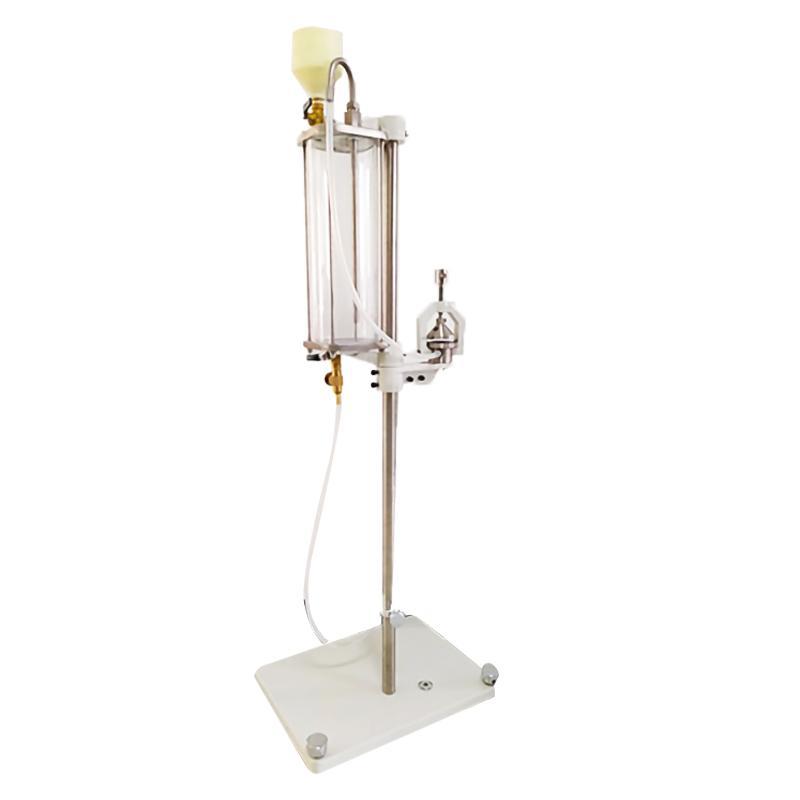

JINGWEN JW123 paper Air permeability meter

JW123

Paper Air permeability meter

Compliant with GB/T 26203 and TAPPI T-569 standards, using electro-hydraulic pressure, high test accuracy (+/- 1 J/m ²), touch screen display, support RS232/USB communication output, and equipped with high-speed silent thermal printer

1. Production Basis

The Schober method paper air permeability Tester is designed and manufactured according to the standard QB/T1667 "Paper air permeability (Schober method) Tester".

2. Purpose and Application

Many kinds of paper, such as cement sack paper, paper sack paper, cable paper, copy paper and industrial filter paper, need to measure their air permeability. This instrument is designed and manufactured for the above-mentioned kinds of paper. This instrument is suitable for paper with air permeability between 1×10-2~1×102um/(Pa.S), not for paper with rough surface.

3. Operating Conditions

The instrument should be placed on a firm and stable workbench in an environment with clean air at a room temperature of 20±10°C.

4. Test steps

1. Close the overflow valve and regulating valve, and open the water filling valve and ventilation valve.

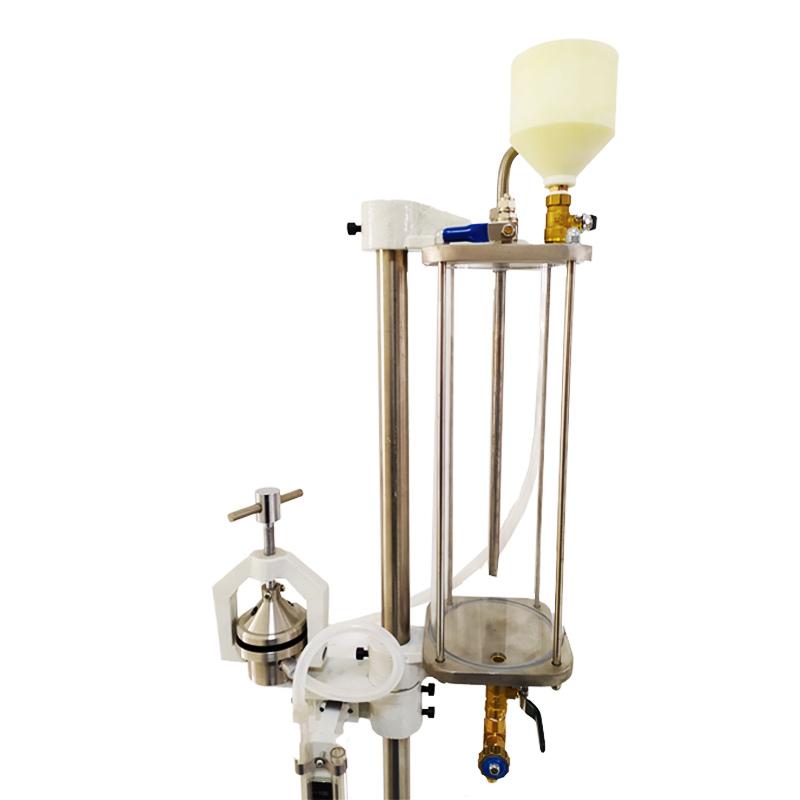

2. Fill the container with distilled water from the water filling valve with funnel.

3. Close the water filling valve and ventilation valve, and close the water filling valve and ventilation valve.

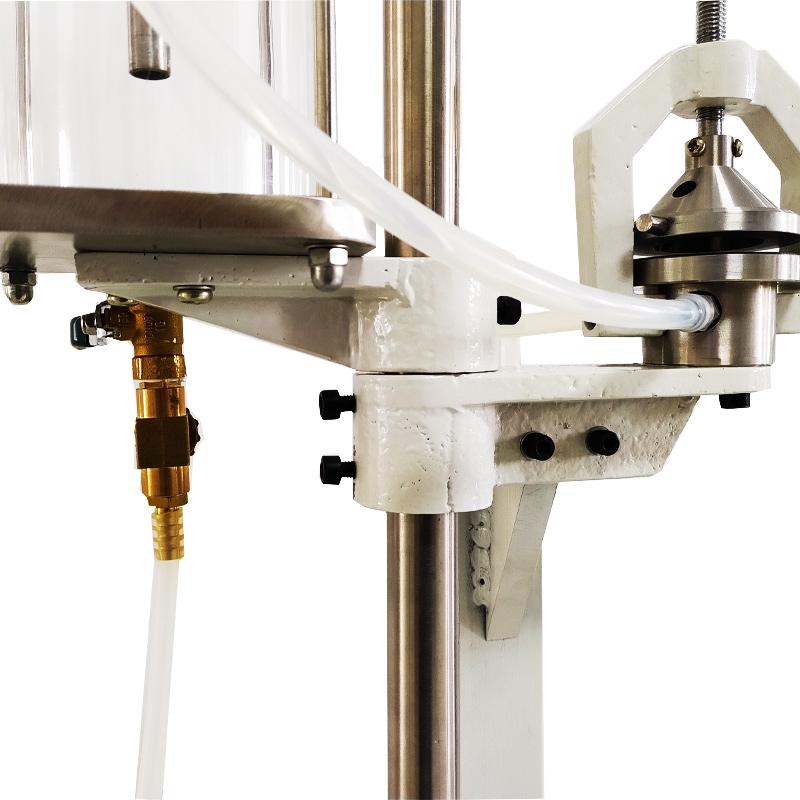

4. Clamp the sample between the paper sample clamp ring and the air box.

5. Place a measuring cylinder under the overflow port, open the overflow valve, and turn the regulating valve to adjust the pressure difference in the test area to 1kPa (100 mm water column). If the purpose cannot be achieved, loosen the locking bolt to lift the overflow pipe until the test The pressure difference in the area is 1kPa. After it is stabilized, start the stopwatch to extract the amount of water in the measuring cylinder for 1 minute, or the time required for 100ml of water in the measuring cylinder.

Since the air permeability of the paper has a good proportional relationship with the constant pressure difference and measurement time, other measurement pressure difference and measurement time can be selected if necessary, but it should be noted in the report.

Before the test, refer to Table 1 to select the appropriate test duration required for the determination of air permeability. When choosing different test durations, the reading error of the test results should not exceed 2.5% as the standard.

Table 1 When the constant differential pressure is 1kPa

5. Installation and adjustment

Place the instrument on a stable, vibration-free workbench and adjust the level of the instrument.

Clamp a thin film on the holder, adjust the constant pressure difference in the test area to 1kPa, then close the drain valve, press the stopwatch, and observe the pressure difference. The allowable difference in pressure difference should be <0.01kPa within half an hour.

6. Repair and maintenance

a) The operator should familiarize himself with the instruction manual and strictly abide by the operating procedures. Non-professionals are not allowed to operate.

b) Always keep the instrument clean. In order to avoid the deposition of impurities on the glass container, distilled water should be used in the pressure gauge and the container.

c) Vacuum grease should be replaced regularly for each valve to ensure sealing performance and flexible rotation.

Packing list：Host X1, manual X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
