JINGWEN JW102A2Z paper Burst Tester

JINGWEN JW102A2Z paper bursting instrument is a special instrument for all kinds of paper bursting strength performance detection, JW102A2Z paper bursting instrument Measurement range 50-1400kpa, clamping force between the chuck 400-1200kpa adjustable, pressurized oil feeding speed 95 +/- 5ml/min, resolution 0.1kpa, indication Precision +/- 0.5% F.S.
Model：
Certificate
Contact
Details SPEC

jingwen JW102A2Z Paper Burst TesterSPEC

jingwen JW102A2Z Paper Burst TesterDetails

jingwen JW102A2Z Paper Burst TesterPacking list

SKU
NB033192
Measurement range
50~1400kpa
Clamping Force
400~1200Kpa
Oil delivery speed
95±5mL/min
Resolution
0.1kpa
Error of indication
±0.5%F.S
System sealing
At the upper limit of measurement, 1 minute pressure drop < 10% Pmax
Upper clamp ring aperture
Φ(30.5±0.1)mm
Communication interface
Configurable Rs232 (optional)
unit conversion
Kg/cm2、kpa、lbf/in2
printout
modular integrated thermal printer
Power supply Voltage
220V±10%  50Hz
Lower clamp ring aperture
Φ(33.1±0.1)mm
JW102A2Z
Paper Burst Tester

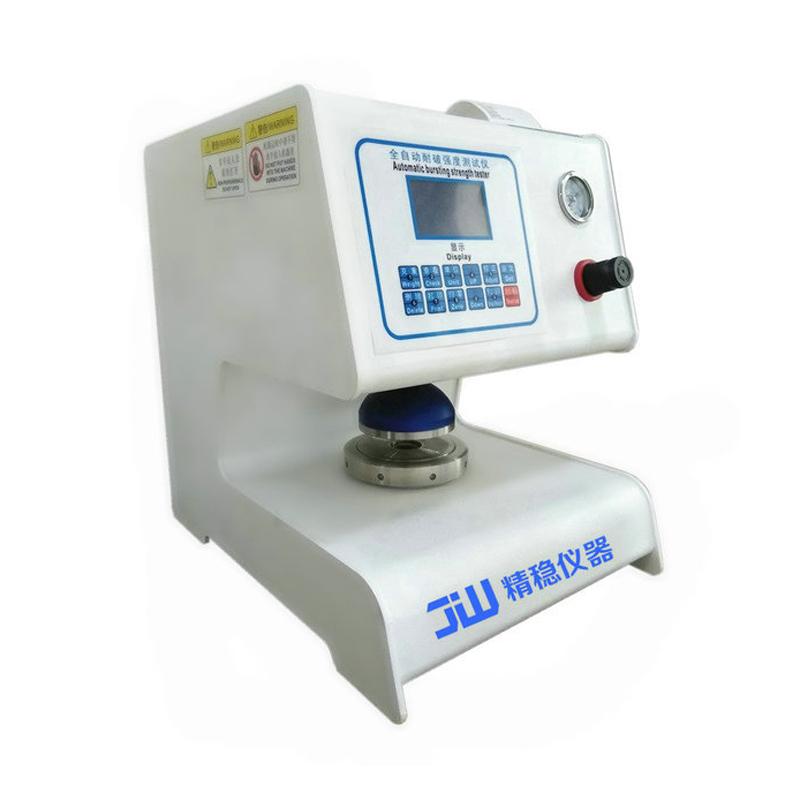

JINGWEN JW102A2Z paper Burst Tester Picture

Applications:

Paper burst resistance Tester is a special instrument for all kinds of paper burst strength performance testing, its performance parameters and technical indicators meet the ISO2758 "paper - burst resistance determination" and GB454 "paper burst resistance determination method" and other standards, it is suitable for all kinds of paper burst strength testing, but also can be used for silk, cotton and other non-paper sheet materials burst resistance testing. This instrument is simple to operate, reliable in performance and professional in technology, and is an indispensable equipment for scientific research units, paper manufacturers, packaging industry and quality inspection departments.

Features

1] 320*240 dot matrix LCD display

2] Friendly menu-type man-machine interface, easy to operate

3] It has power-down protection test data

4] Able to save and display the last 99 test records on both pages when the power is off

5] With fast, high-quality micro printer and complete and detailed test data report

Standard Configuration:

Main machine + micro printer + wrench + glycerin + adhesive film + power cord

According to the standard:

ISO2758 "Paper - Determination of Burst Resistance" and GB454 "Determination of Paper Burst Resistance"
