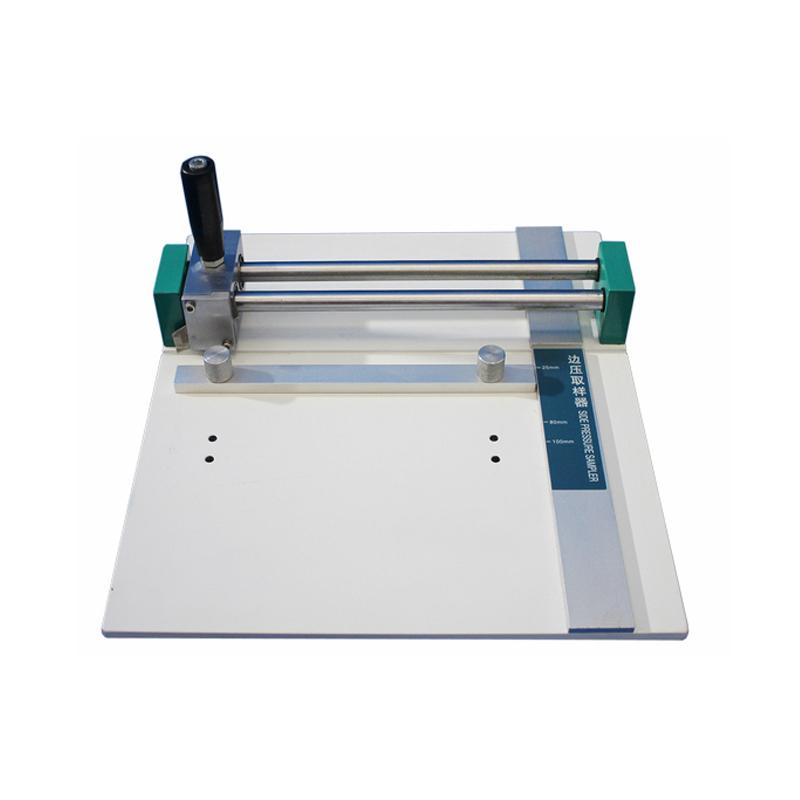

JINGWEN JW-101F02 Cardboard side pressure Sampler corrugated fibreboard side pressure test supporting tools
SEBlade movement straight line and baffle verticality +/- 0.10mm, cutting sample size tolerance +/- 0.5mm, simple structure and high Precision, easy to maintain.
$319.00/set
PromotionLoading...
Coupon
Model：
JW-101F02
jingwen JW-101F02 Cardboard Edge SamplerSPEC
jingwen JW-101F02 Cardboard Edge SamplerDetails
jingwen JW-101F02 Cardboard Edge SamplerPacking list
- SKU
- NB033198
- Blade motion straight line and baffle verticality
- ±0.10mm
- Parallelism between the straight line of blade movement and the positioning end face of the positioning plate
- ≤0.10mm
- Cut sample size tolerance
- ±0.5mm
- Film thickness sampling range
- 18mm
- Sampling size
- 25mm × 100mm (side pressure sample), 25mm × 80mm (gluing sample)
- Width Accuracy
- （25±0.5）mm
JW-101F02
Cardboard Edge Sampler
Blade movement straight line and baffle verticality +/- 0.10mm, cutting sample size tolerance +/- 0.5mm, simple structure and high Precision, easy to maintain.
product description
Edge pressure sampler is a sampling device for edge pressure test of corrugated cardboard, and is a supporting tool for JW101 compression Tester
Features
The instrument has the characteristics of simple structure, high accuracy and easy maintenance
Applications
The instrument can cut all kinds of cardboard (3-ply, 5-ply, 7-ply)
technical standard
The instrument is designed and manufactured according to the requirements of GB6543 and GB6548.
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
