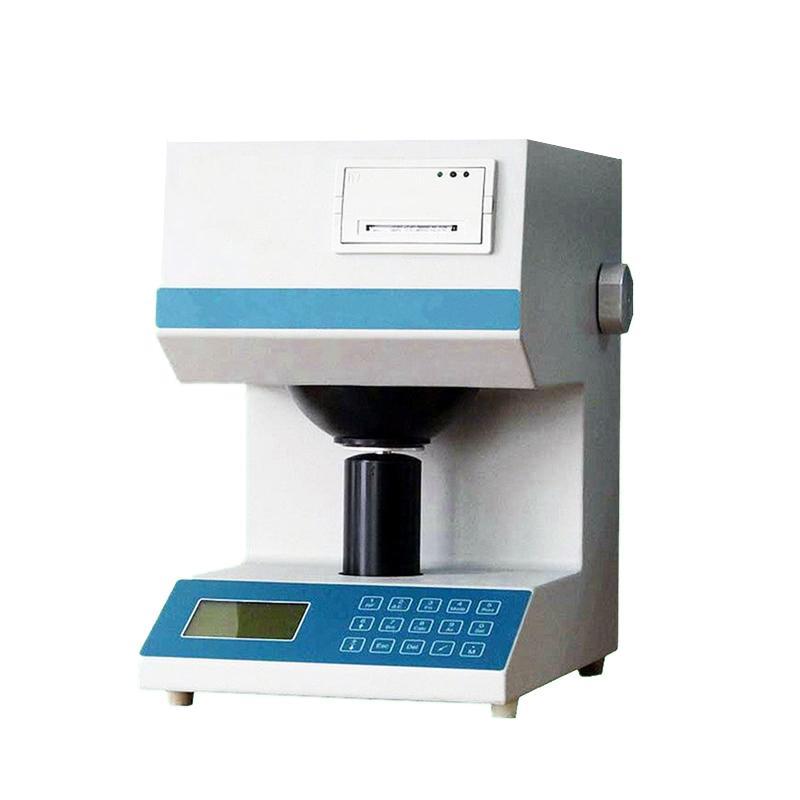

JINGWEN JW122-1 Whiteness Analyzer desktop Whiteness Meter

JW122-1

Whiteness Analyzer

Optical, mechanical and electrical integrated design, microcomputer measurement and control technology, compact structure, beautiful appearance, easy maintenance. The instrument is mainly used for the measurement of paper, Cardboard, Pulp, Spinning & weaving products, Plastic, Ceramics and other materials whiteness, and can also measure the opacity of thin sheet materials and other Optical Properties.

product description

JW-122-1 whiteness Tester (also known as Whiteness Meter, Whiteness Meter) mainly measures paper and cardboard, pulp and chemical fiber pulp, cotton and chemical fiber, textiles, plastics, ceramics, porcelain, starch, salt, Whiteness of various objects such as white cement, china clay, talcum powder, etc. Optical properties such as opacity of thin sheet materials can also be measured. The instrument complies with GB3978-83; standard lighting body and lighting observation conditions. Simulates D65 illuminant lighting. Adopt d/o illumination to observe the geometric conditions, the diameter of the diffusion ball is 150mm, the diameter of the test hole is 30mm, and a light absorber is installed to eliminate the influence of the specular reflection of the sample. The peak wavelength of the spectral power distribution of the R457 whiteness optical system is 457nm, and the full width at half maximum is 44 nm. The Y10 optical system complies with GB3979-83; object color measurement method. Measure and digitally display whiteness, fluorescent (whitening) whiteness, opacity (%), etc.

Test Principle

1. Measure the blue light diffuse reflection factor (R457) of the sample, which is called "blue light whiteness" or "ISO brightness" (ISO Brightness).

2. Analyze whether the sample material contains fluorescent whitening agent, and measure the fluorescent whiteness produced by fluorescent emission, that is, the whitening degree.

3. Measure the brightness stimulus value Y10 of the sample, that is, the green light diffuse reflection factor Ry.

4. Determine the opacity, transparency, light scattering coefficient and light absorption coefficient of the sample.

5. Determination of ink absorption value of paper and board.

Features

1. The instrument adopts optical, mechanical and electrical integration design, microcomputer measurement and control technology, compact structure, beautiful appearance and convenient maintenance.

2. It has the function of statistical analysis and processing of test data.

3. The test range is wide, and it can test the whiteness (brightness), opacity, transparency, light scattering coefficient and light absorption coefficient of various objects.

4. Chinese graphic menu display operation interface, easy to operate.

Packing list：Host X1, power cord X1, manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
