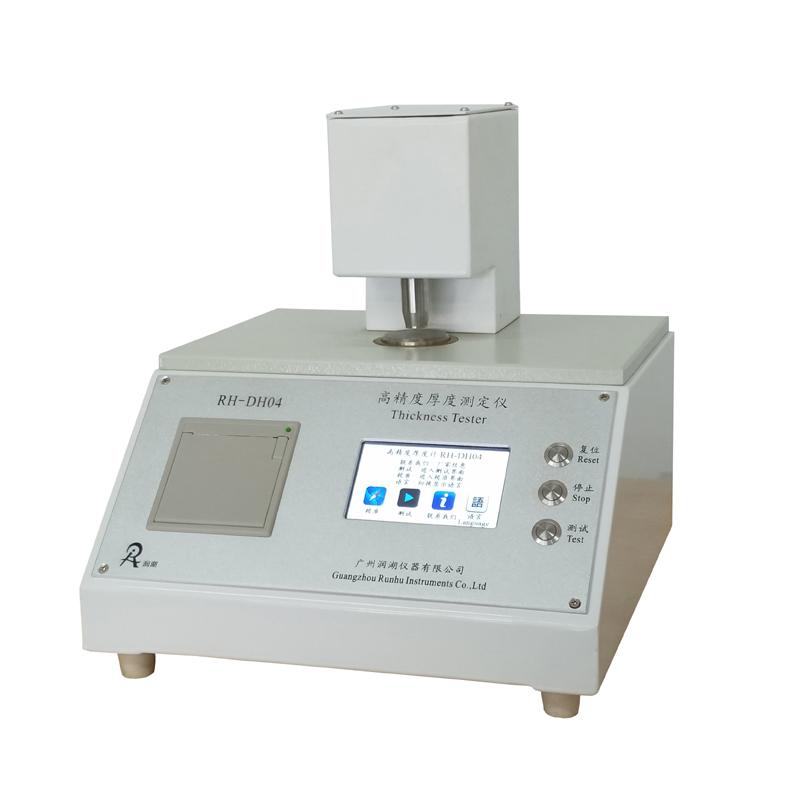

RUNHU RH-DH04 high-precision thickness Tester (Paper thickness Tester)

RUNHU RH-DH04 high-precision thickness Tester is suitable for the determination of the thickness of various paper (including paper), Cardboard, corrugated fibreboard, Tobacco sheet, Plastic film and other sheet materials, RH-DH04 high-precision thickness Tester Measurement range (0~5) mm, (0~20) mm, resolution 0.001mm, Precision +/- 0.0025mm or +/- 0.5%, two measurement plane flatness ≤ 0.001mm.

Model：

RH-DH04

runhu

Contact

Details SPEC

runhu RH-DH04 High-precision thickness TesterSPEC

runhu RH-DH04 High-precision thickness TesterDetails

runhu RH-DH04 High-precision thickness TesterPacking list

SKU: NB033207

Measurement range: 0~20mm

Resolution: 0.001mm

Error of indication: ±0.0025mm/±0.5%

Measurement plane parallelism: ≤0.001mm

Contact area: 2±0.05cm²、10±0.2cm²

Contact Pressure: 0.5~500kPa、0.1~100kPa

Measurement speed: ≤3mm/s

Dimensions: 330*340*350mm

Weight: About 20kg

RH-DH04

High-precision thickness Tester

Introduction

RH-DH04 high-precision thickness Tester is suitable for the determination of the thickness of various paper (including paper), cardboard, corrugated cardboard, tobacco flakes, plastic films and other sheet materials, in line with ISO534, GB/T451.3, GBT24328.2, QB/T1055 and other standards.

Features Chinese touch screen display, friendly man-machine interface operation, fully automatic completion of the test, with test data statistical processing function, micro printer output.
