JINGJI SLD-J Mechanical paper tearing Tester

JINGJI SLD-J mechanical paper tearing meter is a special instrument for measuring paper Tear strength, SLD-J mechanical paper tearing meter, standard pendulum (10~1000) mN, Graduation 10mN, light pendulum (10~500) mN, Graduation 5mN, lightest pendulum (10~200) mN, Graduation 2mN.
Model：
Contact
Details SPEC
Similar products

jingji SLD-J Mechanical paper tearing TesterSPEC

jingji SLD-J Mechanical paper tearing TesterDetails

jingji SLD-J Mechanical paper tearing TesterPacking list

SKU
NB033356
Measurement range
(10~1000) mN, of which the standard pendulum and light pendulum are standard configurations, and the lightest pendulum is specially customized according to user requirements
Measurement range
Standard pendulum: (10~1000) mN, Graduation 10mN
pendulum
(10~500) mN, Graduation 5mN
lightest pendulum
(10~200) mN, Graduation 2mN
Error of indication
+/- 1% within the range of 20% to 80% of the upper limit, +/- 0.5% FS outside the range
Indication Repeatability Error
≤ 1% within the range of 20% to 80% of the upper limit value, ≤ 0.5% FS outside the range
Tear arm
104±1mm
tearing initial angle
27.5±0.5°
tear distance
43±0.5mm
Paper surface size
25*15mm
Distance between clamps
2.8±0.3mm
SLD-J
Mechanical paper tearing Tester

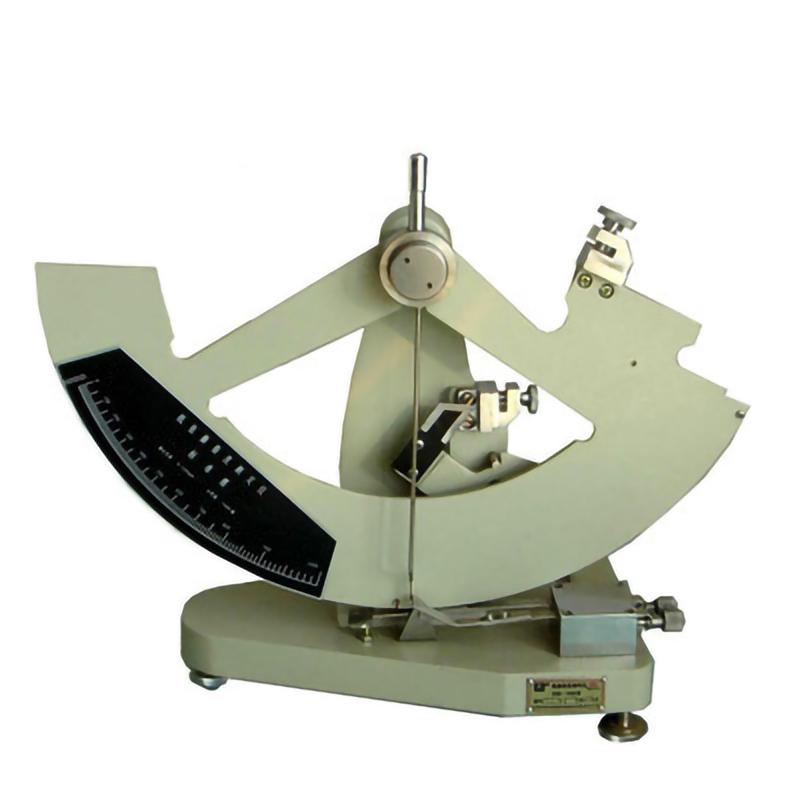

JINGJI SLD-J Mechanical paper tearing Tester Picture

Applications

This paper tear Tester is a special instrument for measuring the tear strength of paper. Its main technical indicators and performance parameters conform to the relevant provisions of ISO1974 standards such as "Determination of Paper - Tear (Ellimendorf Method)" and GB455.1 "Determination of Paper Tear Degree", and are satisfactory test instruments for papermaking, scientific research and product quality supervision and inspection industries.

Standard configuration: host + weights

According to the standard: ISO1974, GB455.1
