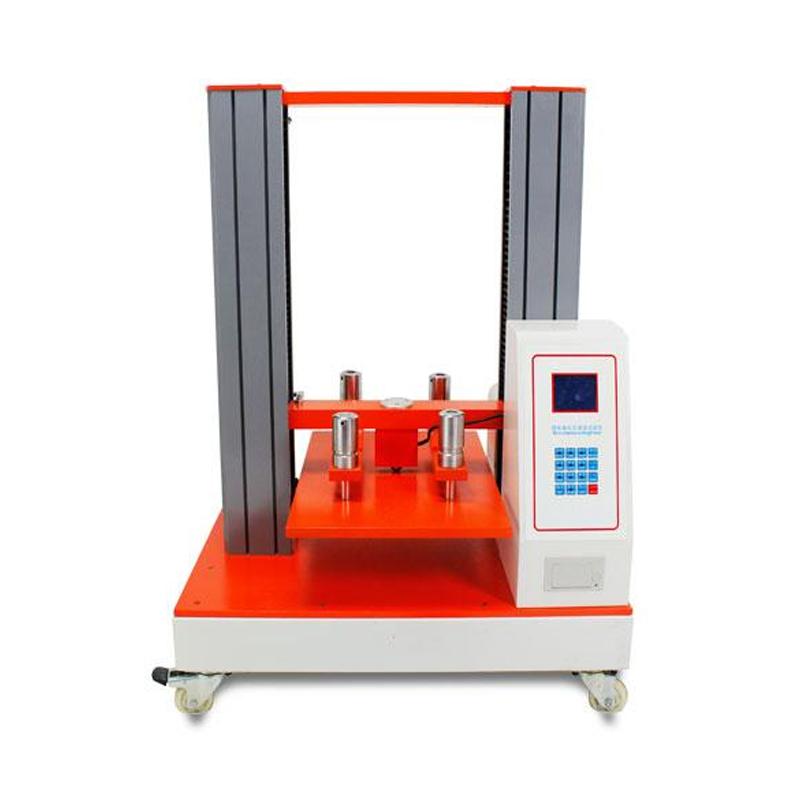

SUMSPRING KYJ-10K Carton Compression Tester
KYJ-10K
sumspring KYJ-10K Carton compression testing machineSPEC
sumspring KYJ-10K Carton compression testing machineDetails
sumspring KYJ-10K Carton compression testing machinePacking list
- SKU
- NB033381
- Force range
- 50-10000N (Miscellaneous range can be customized)
- Error of indication
- ±1%
- Measurement size
- 600Mm × 800mm × 800mm (maximum length, width and height of the sample) 800mm × 1000mm × 1000mm (maximum length, width and height of the sample) 1000mm × 1200mm × 1200mm (maximum length, width and height of the sample, Miscellaneous size can be customized)
- Force resolution
- 0.1N
- Pressurization speed
- 10±3mm/min
- deformation error
- ≤±1mm
- Plate parallelism
- ≤1mm
- Unit switch
- N、kgf、Lbf
- Environmental temperature
- 15℃-50℃
- Relative Humidity
- Up to 70% RH
- Power supply Voltage
- 220V,50Hz
Introduction
KYJ-10K is suitable for compression and stacking tests on packaging containers, corrugated boxes, paper tubes, paper tubes, plastic containers, etc. The single machine has a variety of test modes such as strength test, fixed value test, stacking test, etc., and with the precision screw transmission system, the carton compression testing machine is widely used in food enterprises, enterprises, packaging enterprises, quality inspection and other units.
Technical characteristics
★ Microcomputer processing system, PVC control panel, convenient for users to use
★ The anti-compression machine has the functions of testing, display, memory, statistics, printing and real-time display of anti-compression curve
★ There is a data processing function, which can directly obtain the statistical results of various data
★ It has the functions of automatic reset and fault diagnosis, and is easy to operate.
★ During the test, the information such as pressure resistance and deformation can be displayed in real time
★ The carton compression testing machine adopts two precision threaded lead screws and four precision guide pillars to ensure the high parallelism of the upper and lower pressure plates and the stability of the high-speed transmission of the instrument during the test process
★ The new software has the function of real-time display of compression curve, and the instrument has powerful data display and analysis management capabilities and data saving functions.
Application
| Product name | Application |
| carton | It is used for maximum crushing force and stacking test of corrugated boxes, paper tubes, etc. |
| Plastic oil drums | It is used for the compressive performance test of plastic barrel packaging containers such as coatings and lubricating oils. |
| Cooking oil drums | It is used for pressure testing of plastic containers such as edible oil drums, drinking water drums, and large-capacity mineral water drums. |
Experimental mode
★ Strength test: the maximum pressure and displacement resistance of the box can be measured;
★ Constant value test: the overall performance of the box can be tested according to the set pressure and displacement;
★ Stacking test: According to the requirements of national standards, stacking tests under different conditions such as 12 hours and 24 hours can be carried out.
Standards
GB/T 4857.3、GB4857.4、QB/T 1048、ISO2874、ISO 2234
configuration
Standard configuration: carton compression testing machine host, micro printer
